EF-50

The McCloskey Environmental EF-50 gives operations a compact feeder stacker solution for moving material efficiently while reducing double handling on site.
A 10′ feeder hopper transfers material onto a 50′ conveyor, giving crews a practical way to stockpile or transfer material without relying on loaders for every move. The EF-50 is also designed for easier relocation, with a compact transport setup that can fit into a 40′ high cube container to help reduce transport costs.

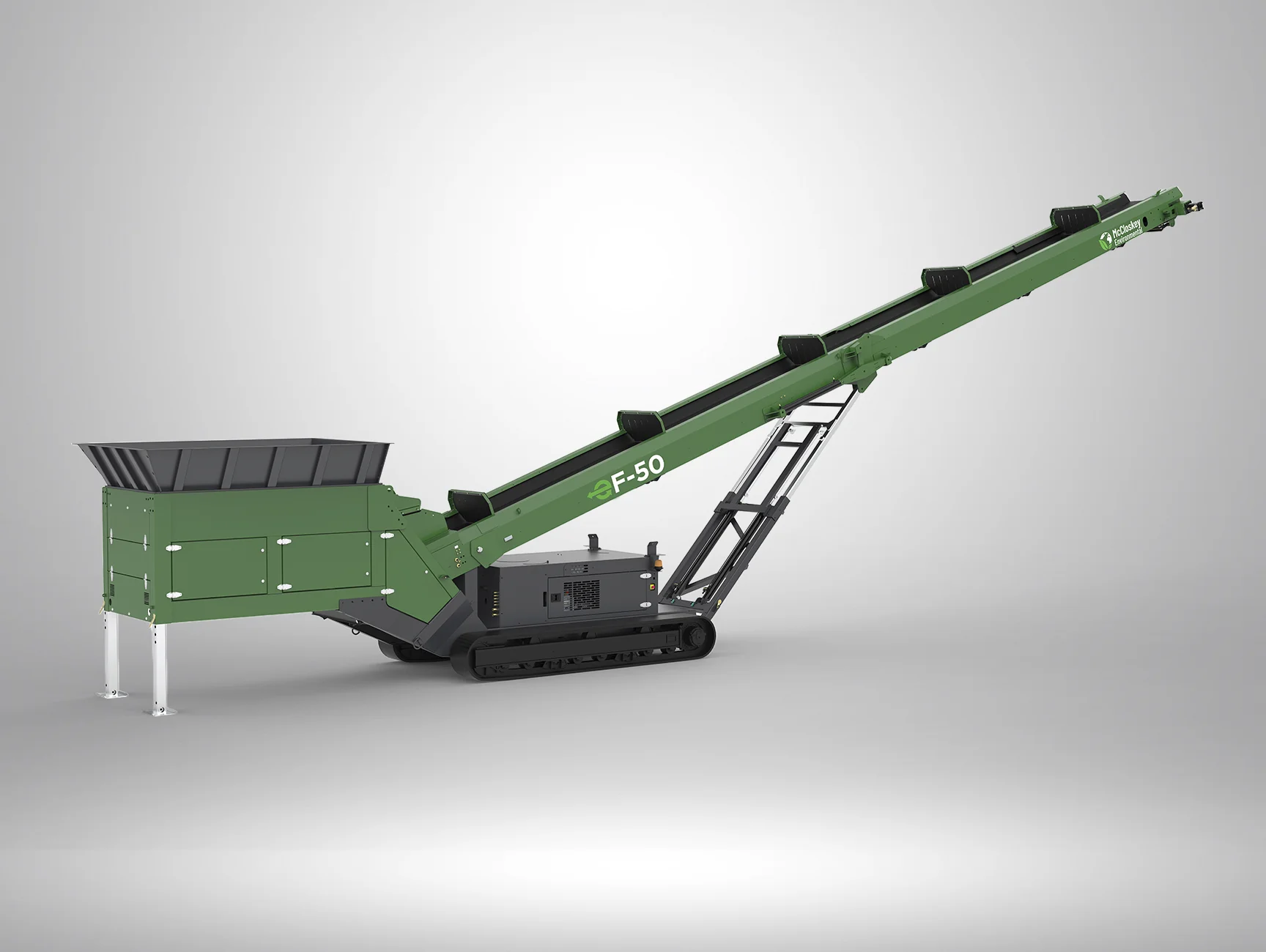

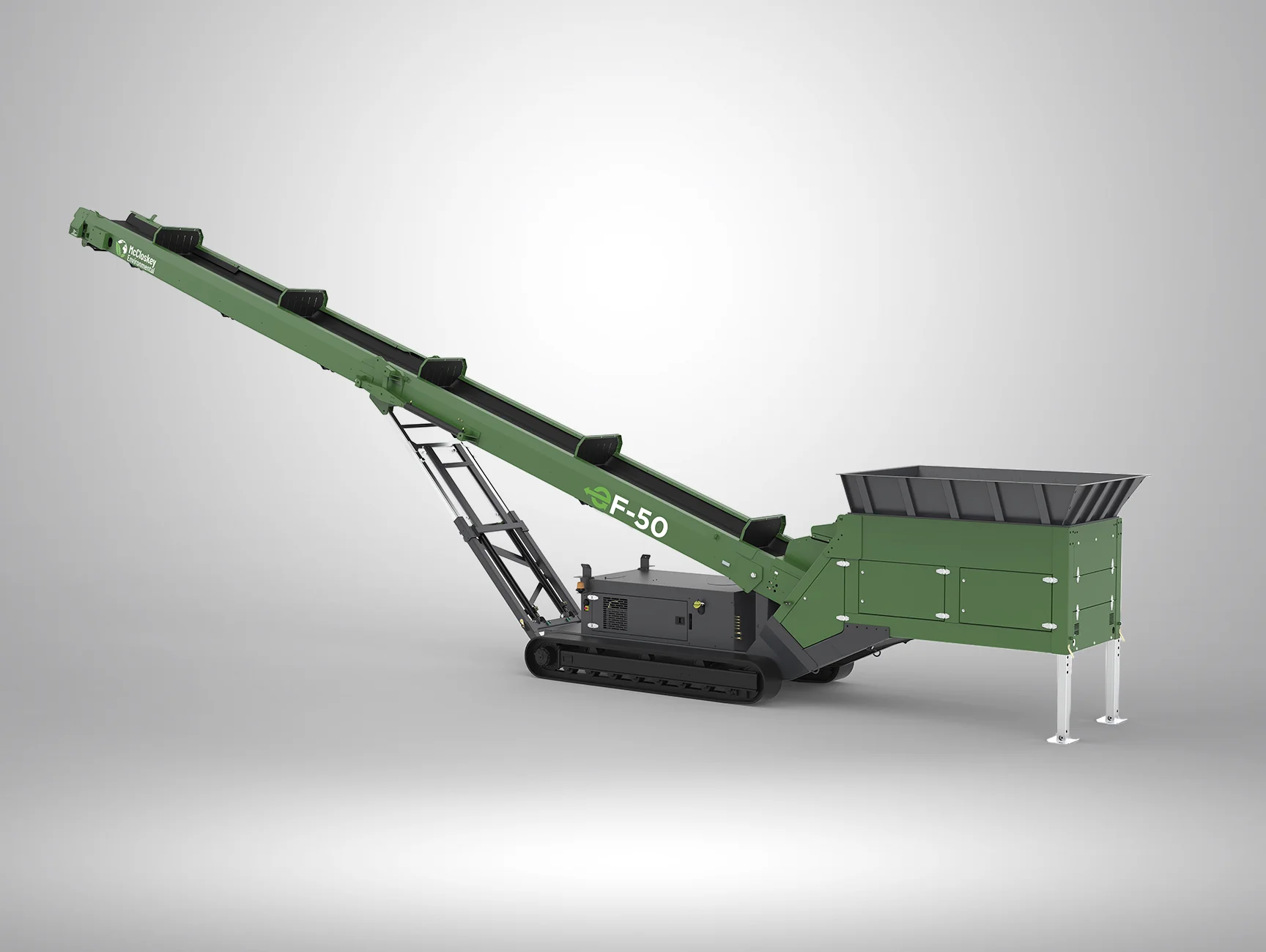

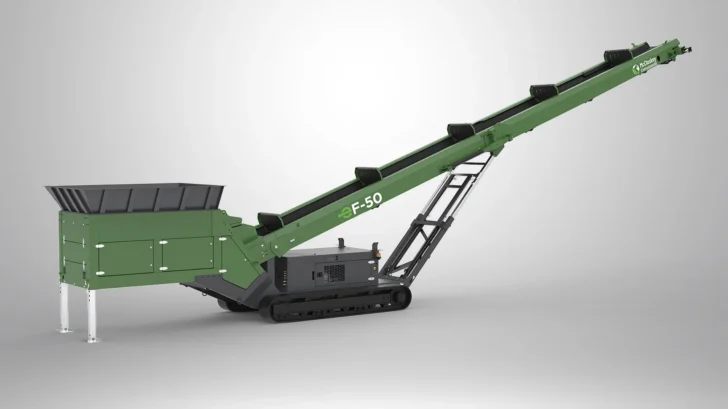

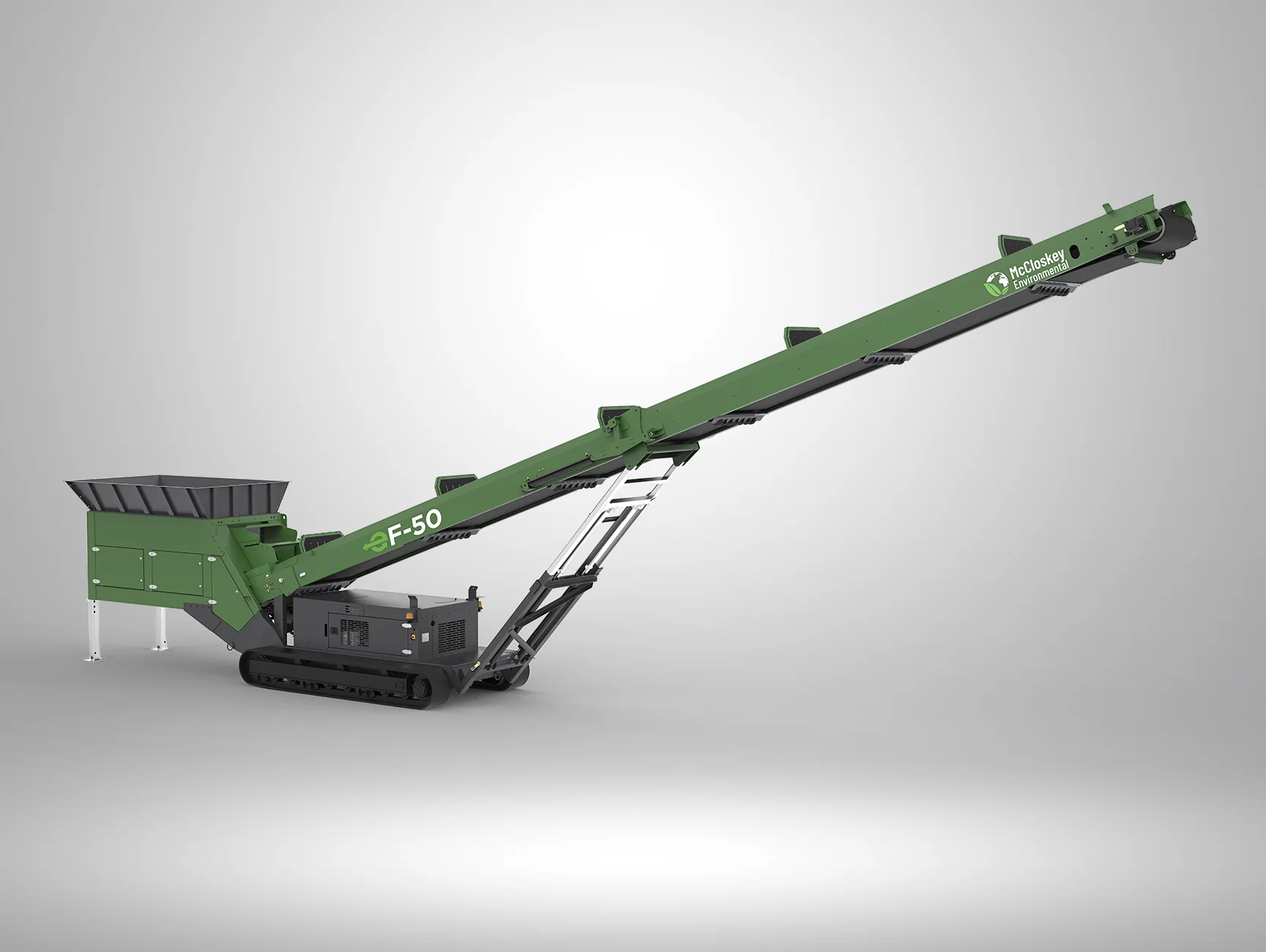

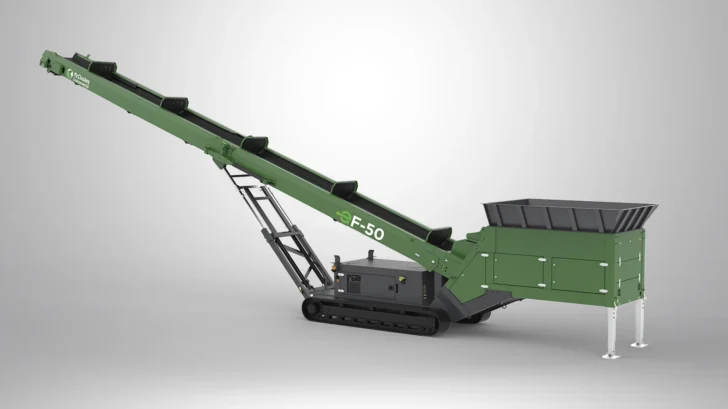

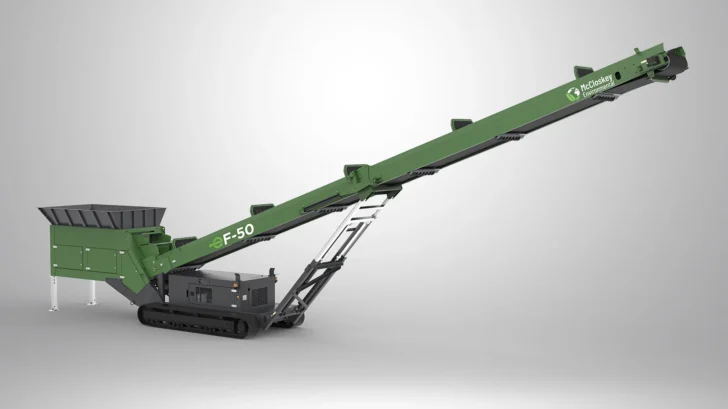

McCloskey Environmental EF-50 compact feeder stacker with 10′ feeder hopper, 50′ conveyor, tracked base, and elevated discharge.

Key features

  • 40″ wide heavy-duty conveyor
  • Hydraulic folding head section helps minimize setup time for transport
  • Hydraulically adjustable discharge height up to 21′ 3″
  • Fuel-efficient hydraulic system
  • 3.5 m tracks provide strong maneuverability and stability
  • User-friendly hydraulic controls
  • CAT 2.8 55 kW / 74 hp LRC engine
  • Production rated up to 550 TPH
  • Hopper extensions increase capacity

Technical specifications

Engine

CAT 2.8 55 kW / 74 hp LRC

Conveyor length

50′

Conveyor belt width

40″

Feeder hopper

10′

Hopper capacity

8 yd³

Maximum production rate

550 TPH

Stockpile height

21′ 3″


Transport

Length

39′ 4″

Width

7′ 6″

Height

8′ 5″

Weight

31,970 lb
