ERF-80

The McCloskey Environmental ERF-80 gives operations a rear-feed stockpiling solution built to move high volumes of material with less rehandling and more control at the feed point.

Instead of relying on loaders to move material multiple times, the ERF-80 uses a large feeder hopper to transfer material onto an 80′ conveyor from a low rear feed position. This layout helps operators stockpile or transfer material efficiently while keeping the machine practical to move between sites. In addition, the unit can be compacted for transport on one low loader, helping reduce relocation complexity.

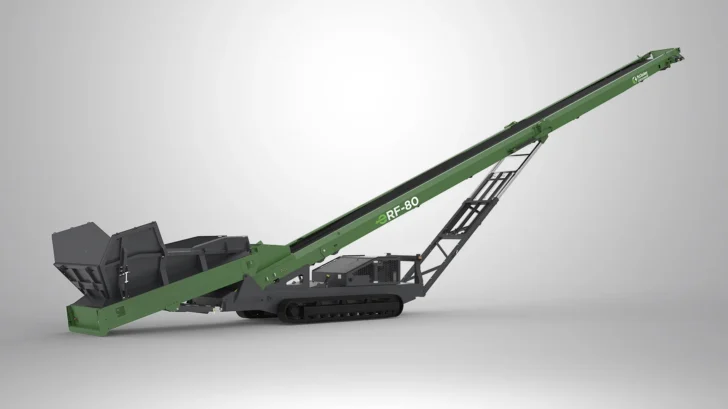

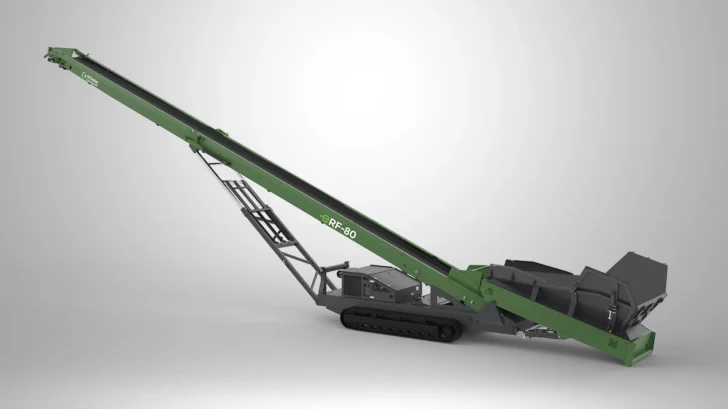

McCloskey Environmental ERF-80 rear-feed stacker with 80′ conveyor, tracked base, and large feeder hopper.

Key features

  • CAT 3.6 100 kW / 136 hp Stage V / Tier 4 Final engine
  • Hydraulically adjustable discharge height up to 32′ 10″
  • 13′ tracks provide maneuverability and stability
  • Fuel-efficient hydraulic system
  • Dual hydraulic main drive system
  • User-friendly hydraulic controls
  • Hydraulic folding head section helps minimize setup time for transport
  • Hopper greedy plates increase capacity

Technical specifications

Engine

CAT 3.6 100 kW / 136 hp Stage V / Tier 4 Final

Maximum production rate

800 TPH

Hopper capacity

13 yd³

Stockpile height

31′ 6″


Transport

Length

63′ 4″

Width

9′ 5″

Height

10′ 6″

Weight

54,000 lb
