ERF-80R

The McCloskey Environmental ERF-80R gives operations rear-feed stockpiling with full radial movement, making it easier to move high volumes of material while reducing unnecessary rehandling.
For sites that need more flexibility around stockpiles, loading areas, or changing material positions, the ERF-80R combines a large feeder hopper with an 80′ conveyor and radio remote controls. Its 360° radial capability supports efficient stockpiling and transfer, while the rear low-level feed design helps operators load the machine more easily and keep material moving with less handling equipment.

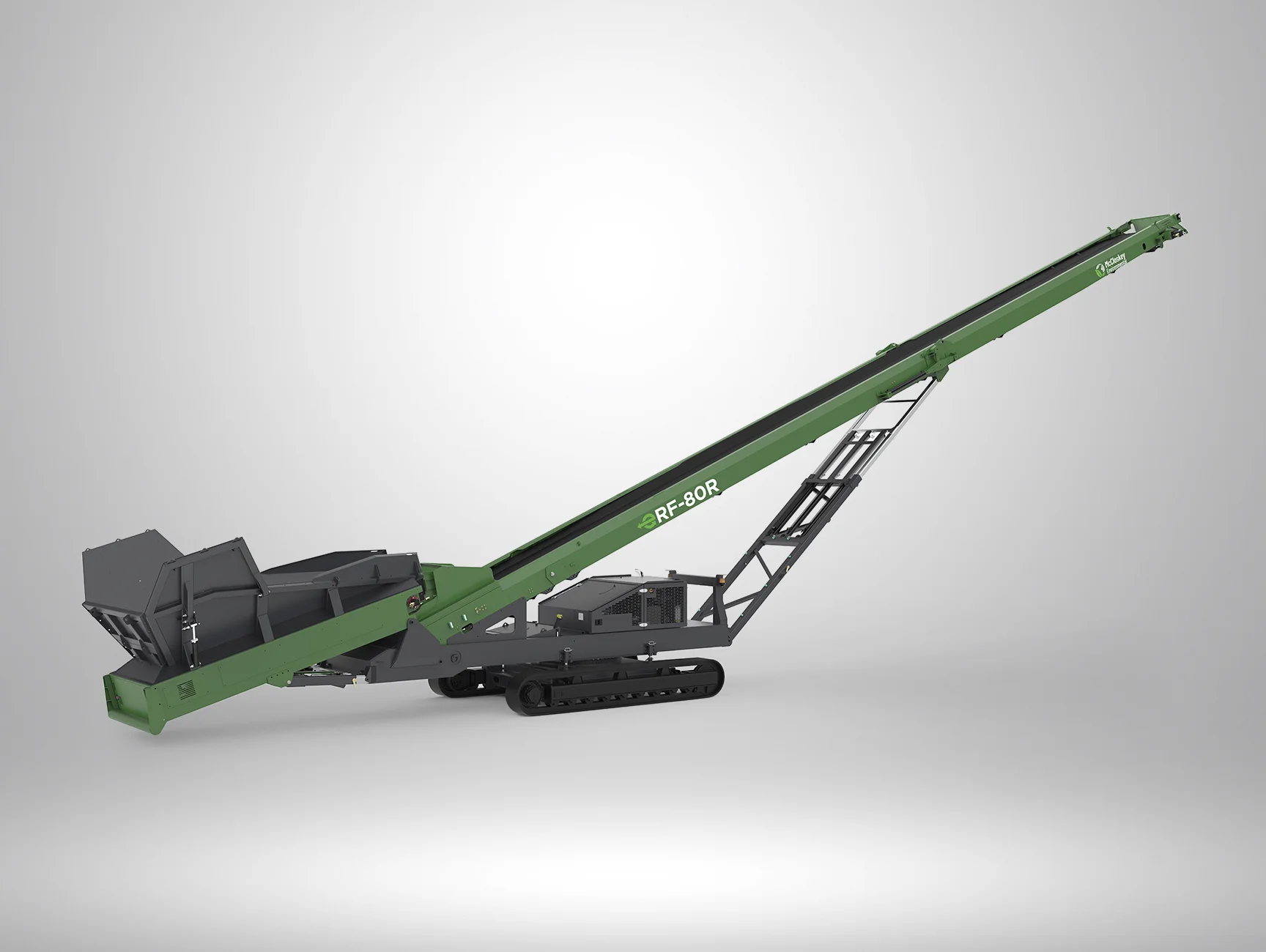

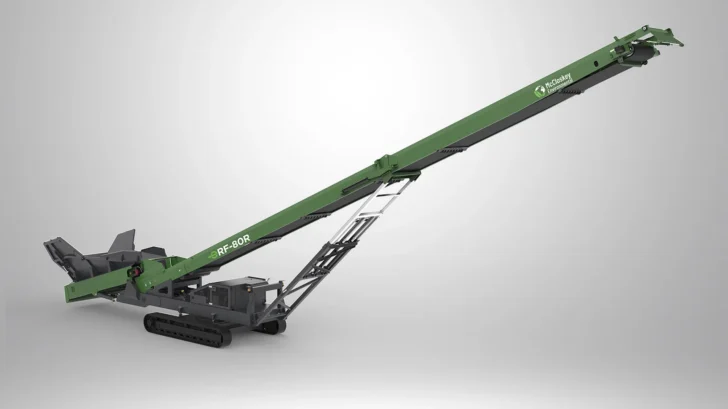

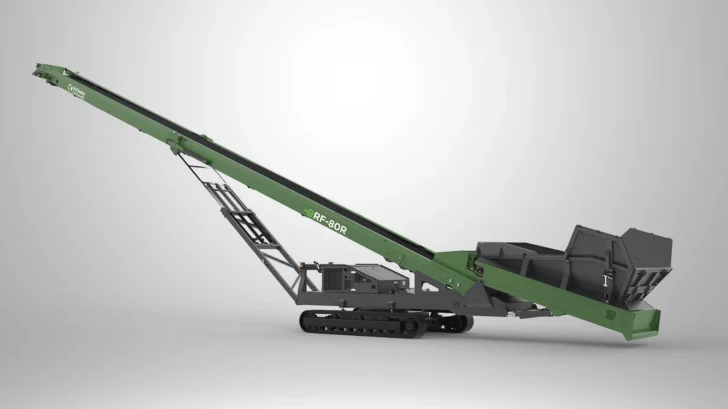

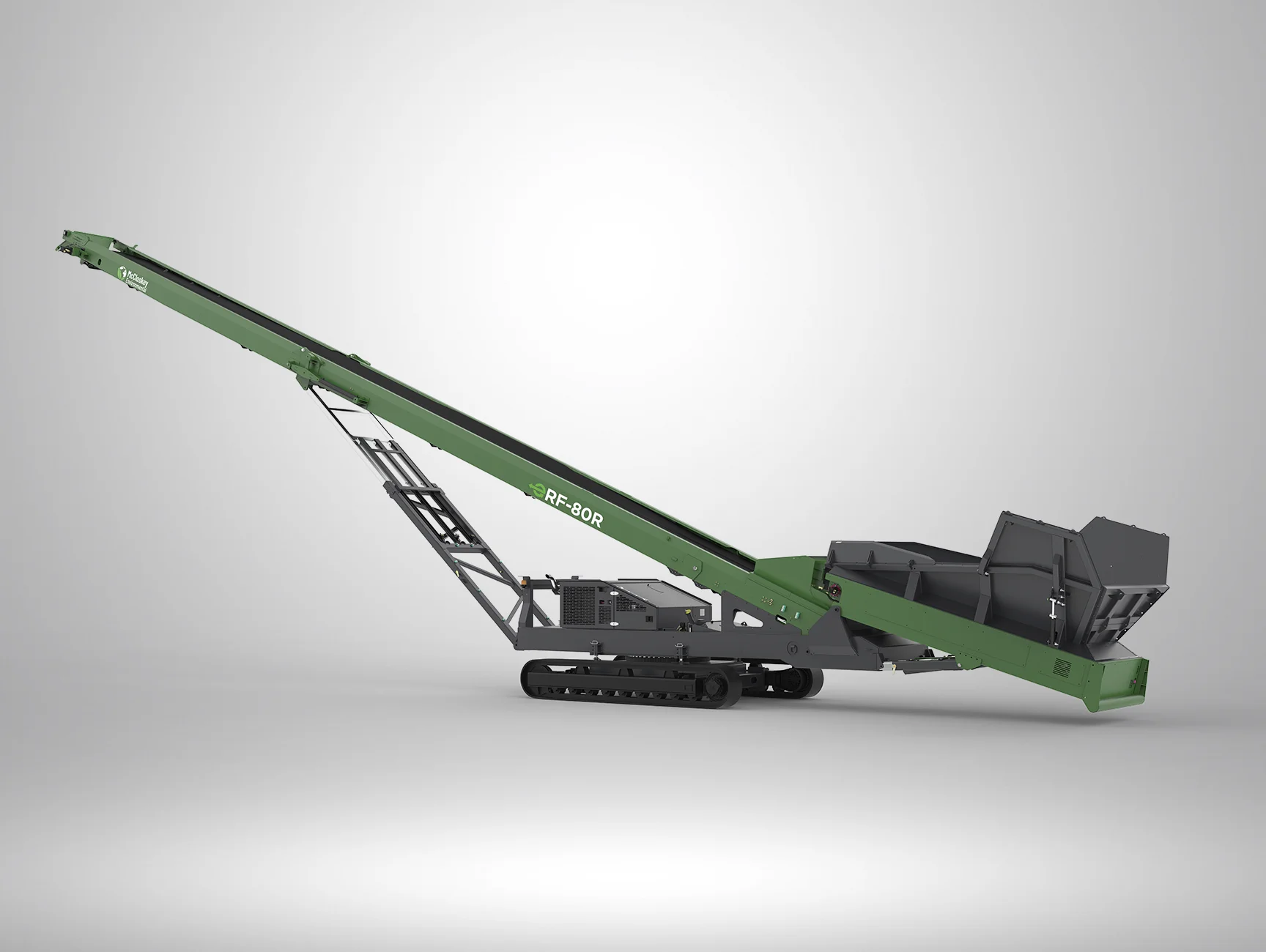

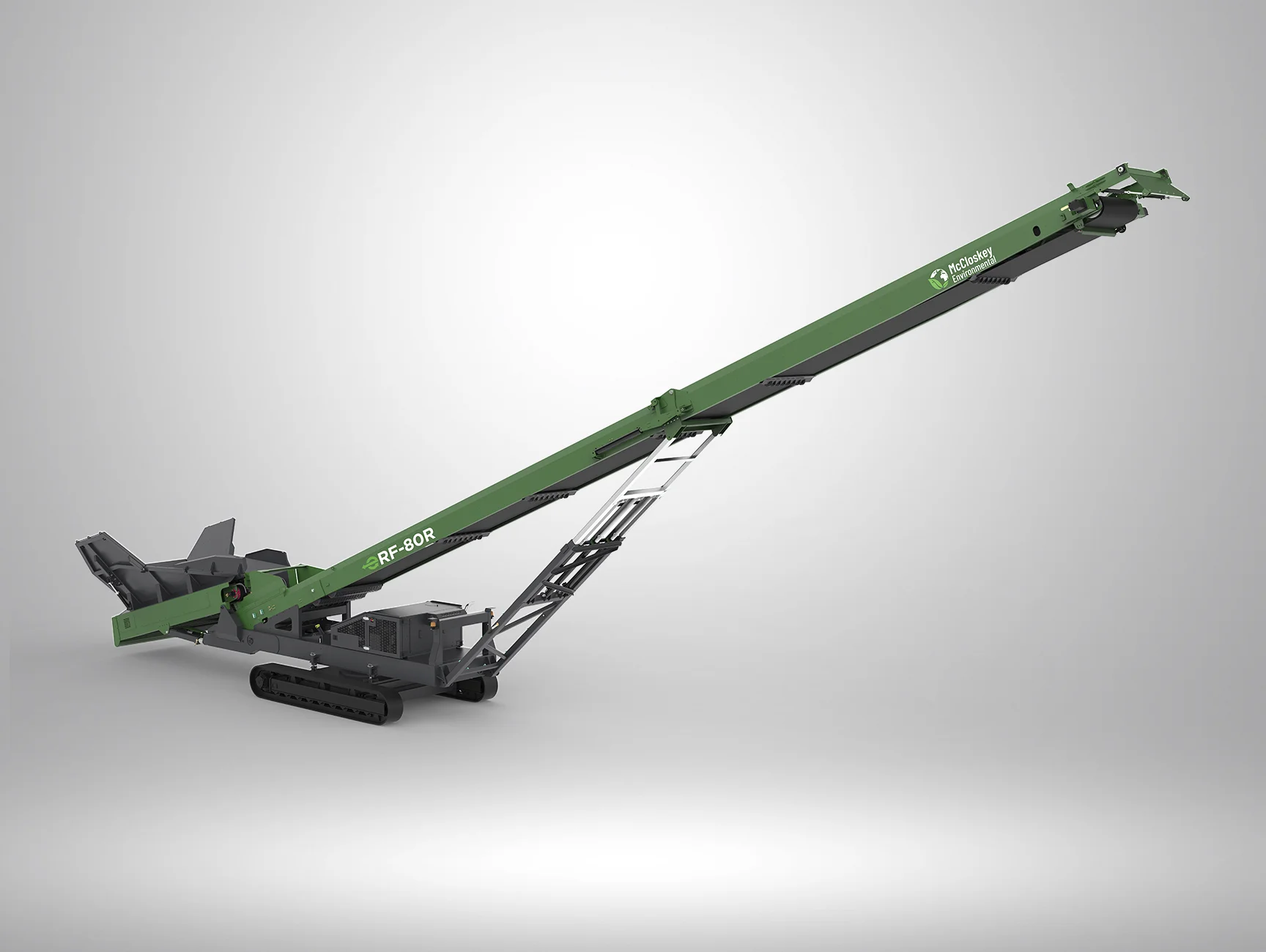

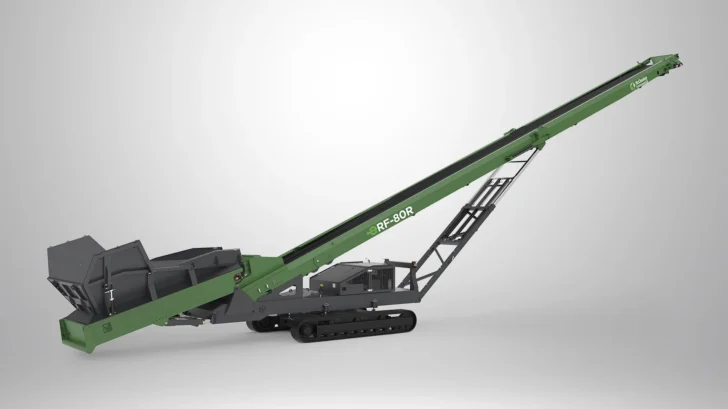

McCloskey Environmental ERF-80R feeder stacker with rear-feed hopper and 80′ conveyor

Key features

  • Dual hydraulic main drive system
  • Hydraulic folding head section helps minimize setup time for transport
  • Hydraulically adjustable discharge height up to 32′ 10″
  • High-powered slew gearbox and slew ring assembly
  • Fuel-efficient hydraulic system
  • Hopper extensions increase capacity
  • Radio remote as standard
  • 13′ tracks provide maneuverability and stability
  • Radio remote rear stabilizing legs for easy operator use
  • Radio remote tracking
  • User-friendly hydraulic controls

Technical specifications

Engine

CAT 3.6 100 kW / 136 hp Stage V / Tier 4 Final

Maximum production rate

800 TPH

Maximum working height

34′ 6″


Transport

Length

63′ 7″

Width

9′ 5″

Height

10′ 6″

Weight

60,627 lb
