EF-80

The McCloskey Environmental EF-80 gives operations a high-capacity tracked stockpiling solution for moving material efficiently and reducing double handling on site.
With its large feeder hopper and 80′ conveyor, the EF-80 is built to transfer and stockpile material directly from upstream equipment. As a result, operators can keep material flowing, build larger stockpiles, and reduce the need for loaders to rehandle material. In addition, its hydraulic folding head section and compact transport setup allow the machine to move from site to site on one low loader.
Type
Product Brochure CEC Brochure

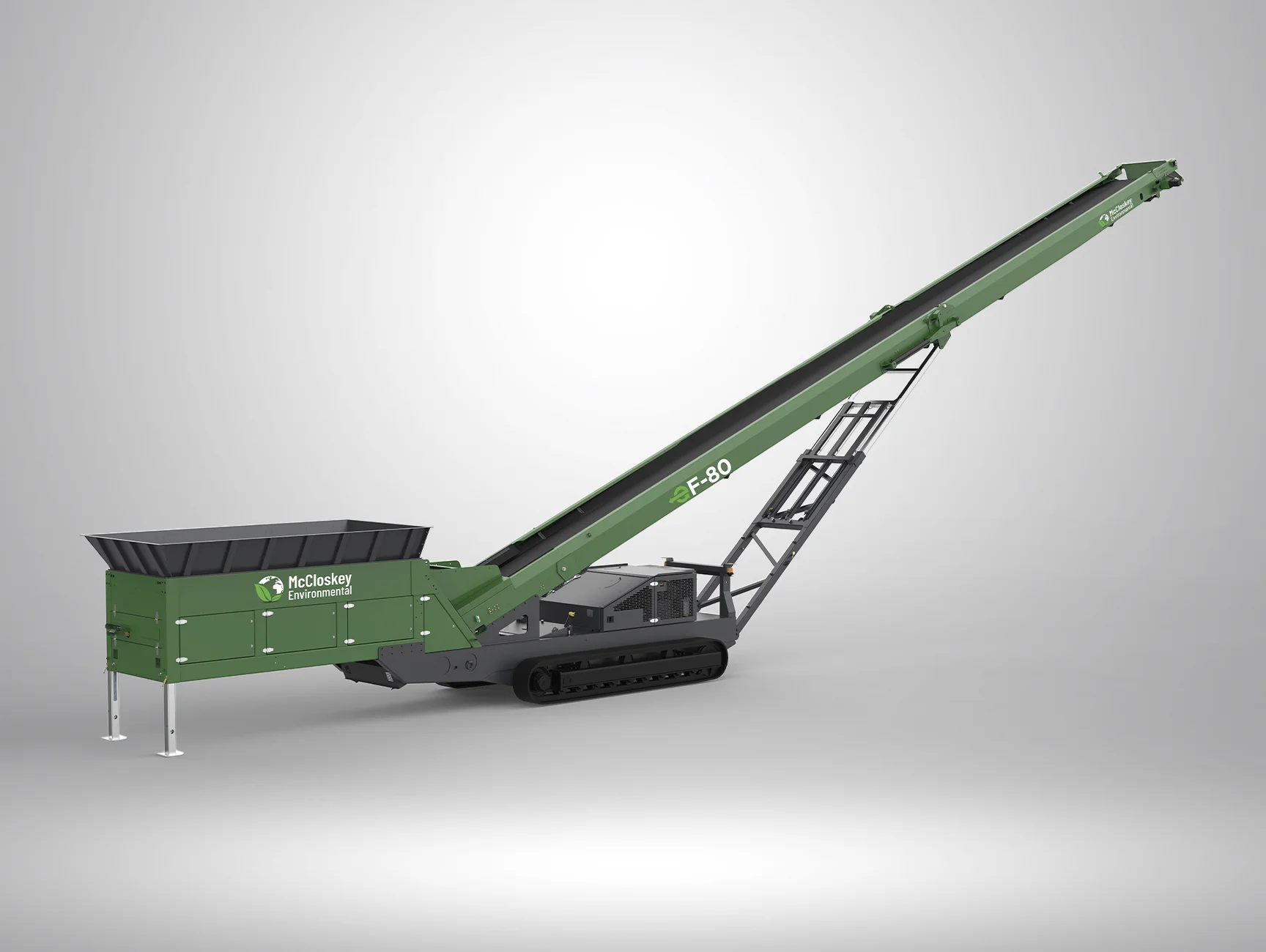

McCloskey Environmental EF-80 tracked feeder stacker with large hopper, 80′ conveyor, folding head section, and compact transport frame.

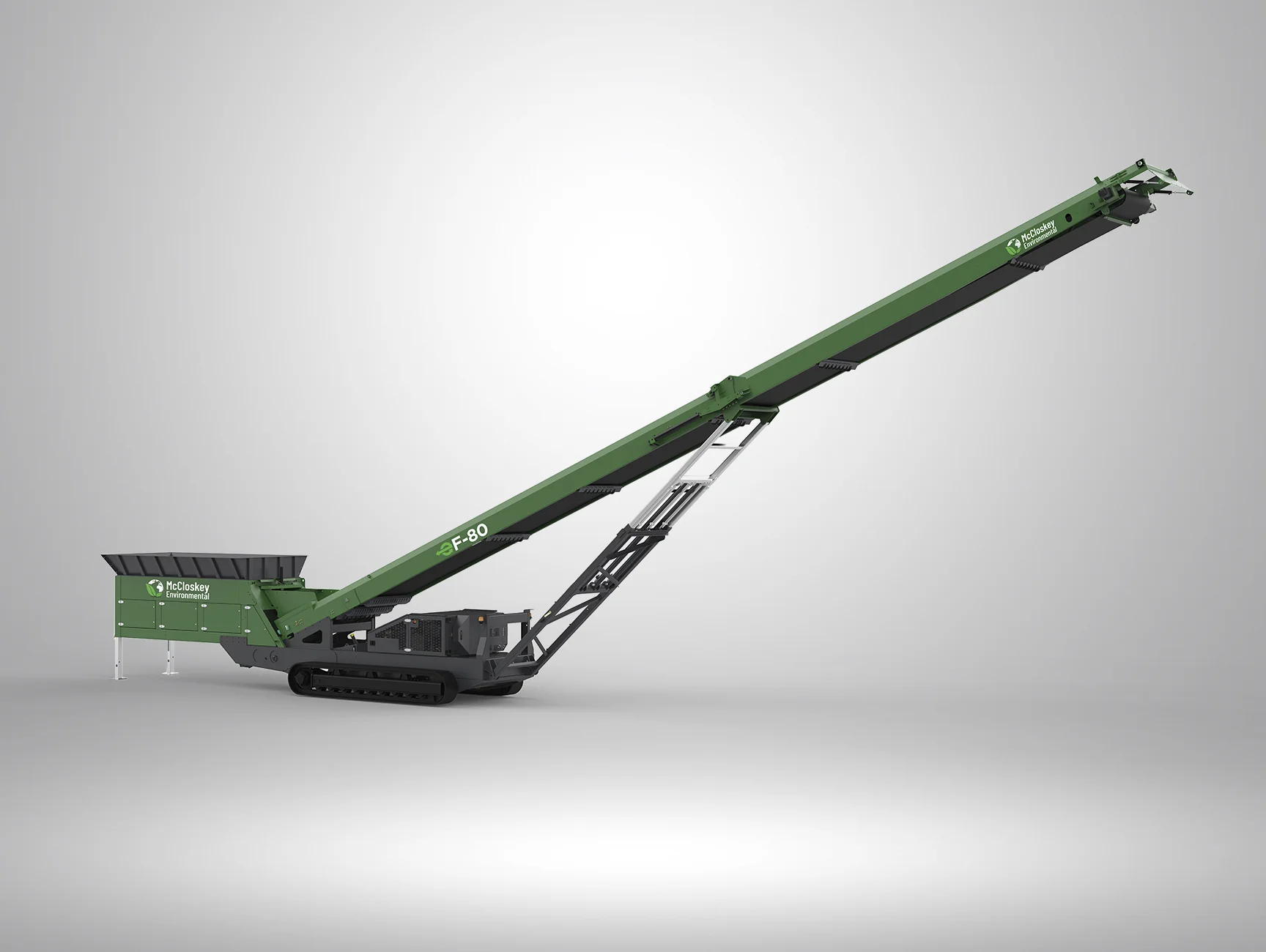

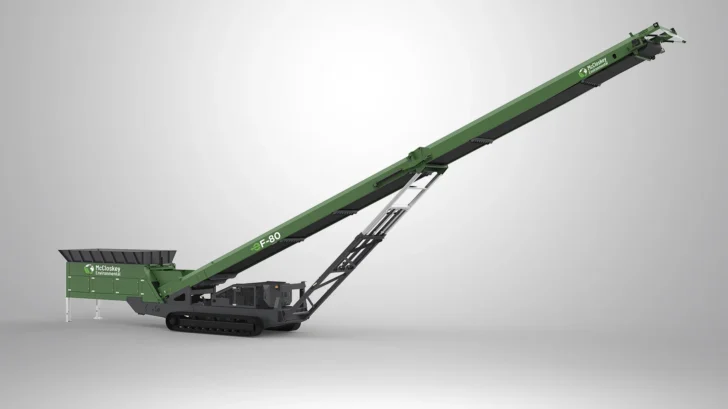

Side profile of the EF-80 Feeder Stacker showing the elevated 80′ conveyor, tracked undercarriage, feeder hopper, and support frame.

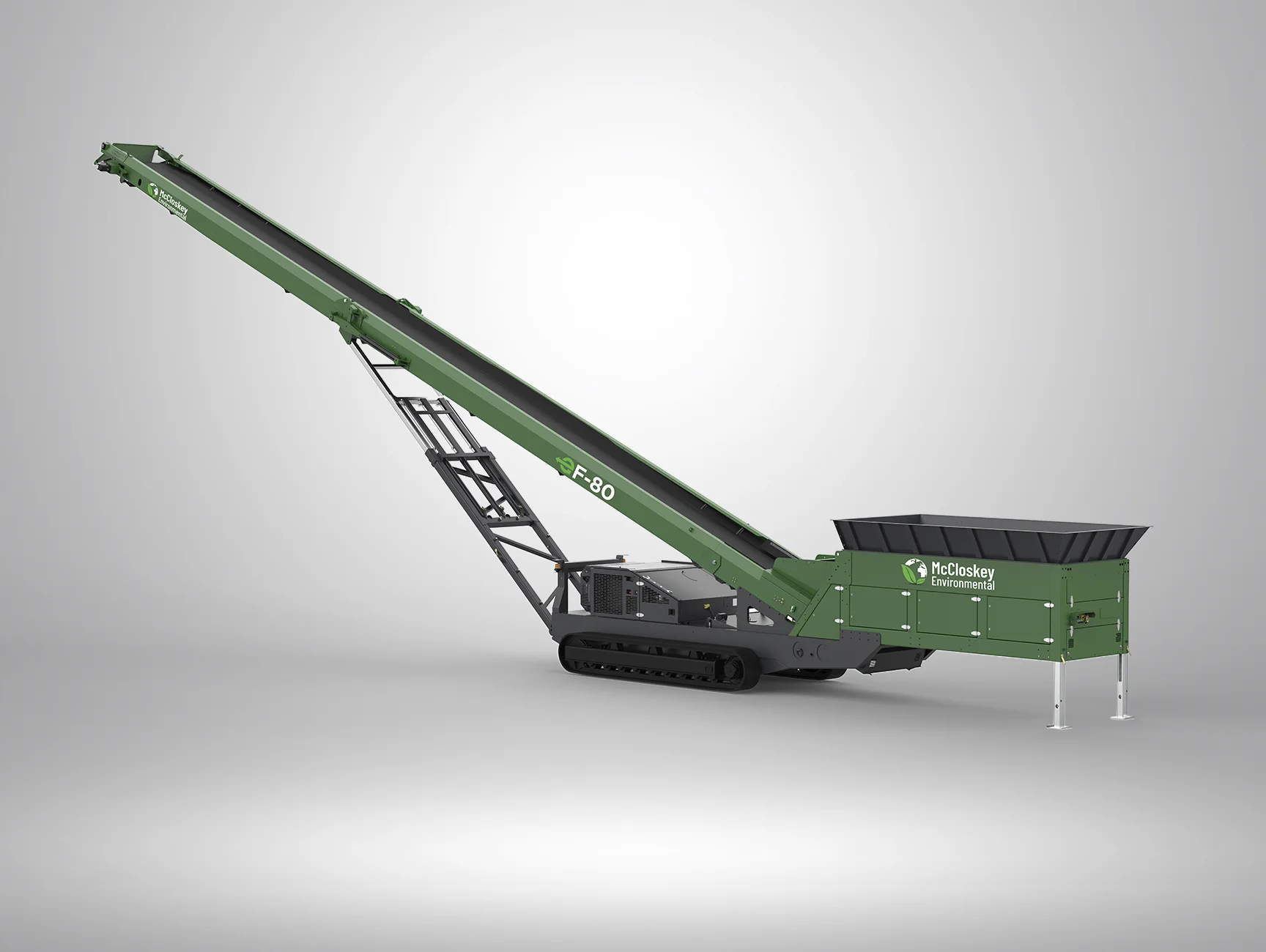

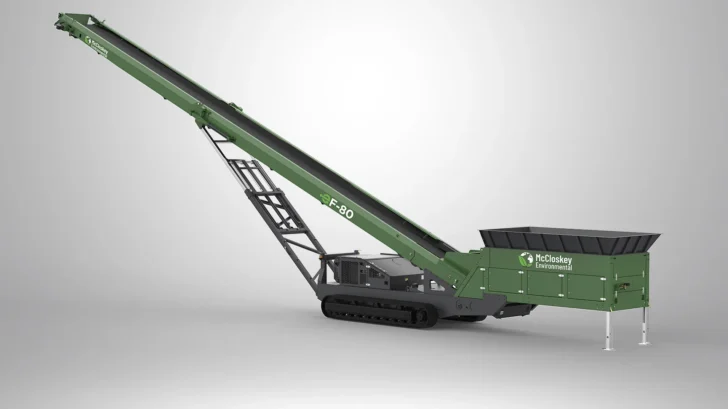

McCloskey tracked stacker with large loading hopper and long stockpiling conveyor extended.

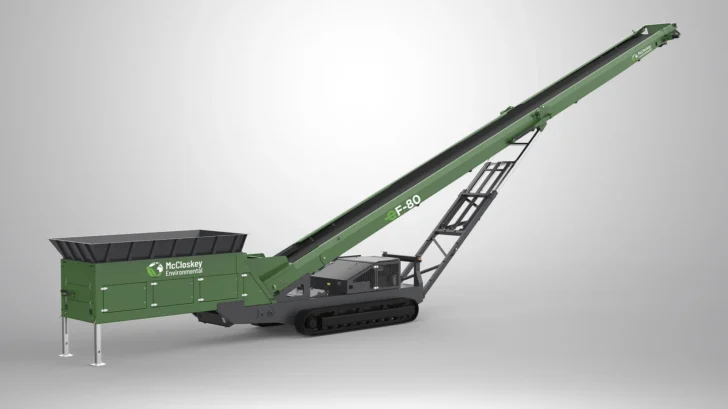

Angled view of the Feeder Stacker with hydraulic folding head section, crawler tracks, feeder hopper, and raised conveyor.
Side profile of the EF-80 Feeder Stacker showing the elevated 80′ conveyor, tracked undercarriage, feeder hopper, and support frame.
McCloskey tracked stacker with large loading hopper and long stockpiling conveyor extended.
Angled view of the Feeder Stacker with hydraulic folding head section, crawler tracks, feeder hopper, and raised conveyor.

Key features

  • Dual hydraulic main drive system
  • Hydraulic folding head section helps minimize setup time for transport
  • Hydraulically adjustable discharge height up to 32′ 10″
  • CAT 3.6 100 kW / 136 hp Stage V / Tier 4 Final engine
  • Production rated up to 800 TPH
  • Fuel-efficient hydraulic system
  • User-friendly hydraulic controls
  • Hopper extensions increase capacity
  • 13′ tracks provide maneuverability and stability

Technical specifications

Engine

CAT 3.6 100 kW / 136 hp Stage V / Tier 4 Final

Production

800 TPH

Stockpile height

31′ 5″

Stockpile capacity

83′ 6″


Transport

Length

63′ 6″

Width

10′ 6″

Height

11′ 1″

Weight

54,013 lb
