ER-155

The McCloskey Environmental ER-155 is built for heavy-duty scalping applications where high-energy screening, fast loading, and strong material flow are critical.
Large loaders need a screener that can keep up without slowing the feed cycle. The ER-155 answers that challenge with a longer direct-feed Hardox-lined hopper, an extended tail conveyor, and a 5′ × 16′ high-energy screenbox. Therefore, operators can load more material with less spillage, maintain steady production, and process demanding applications across recycling, aggregates, and material handling sites.

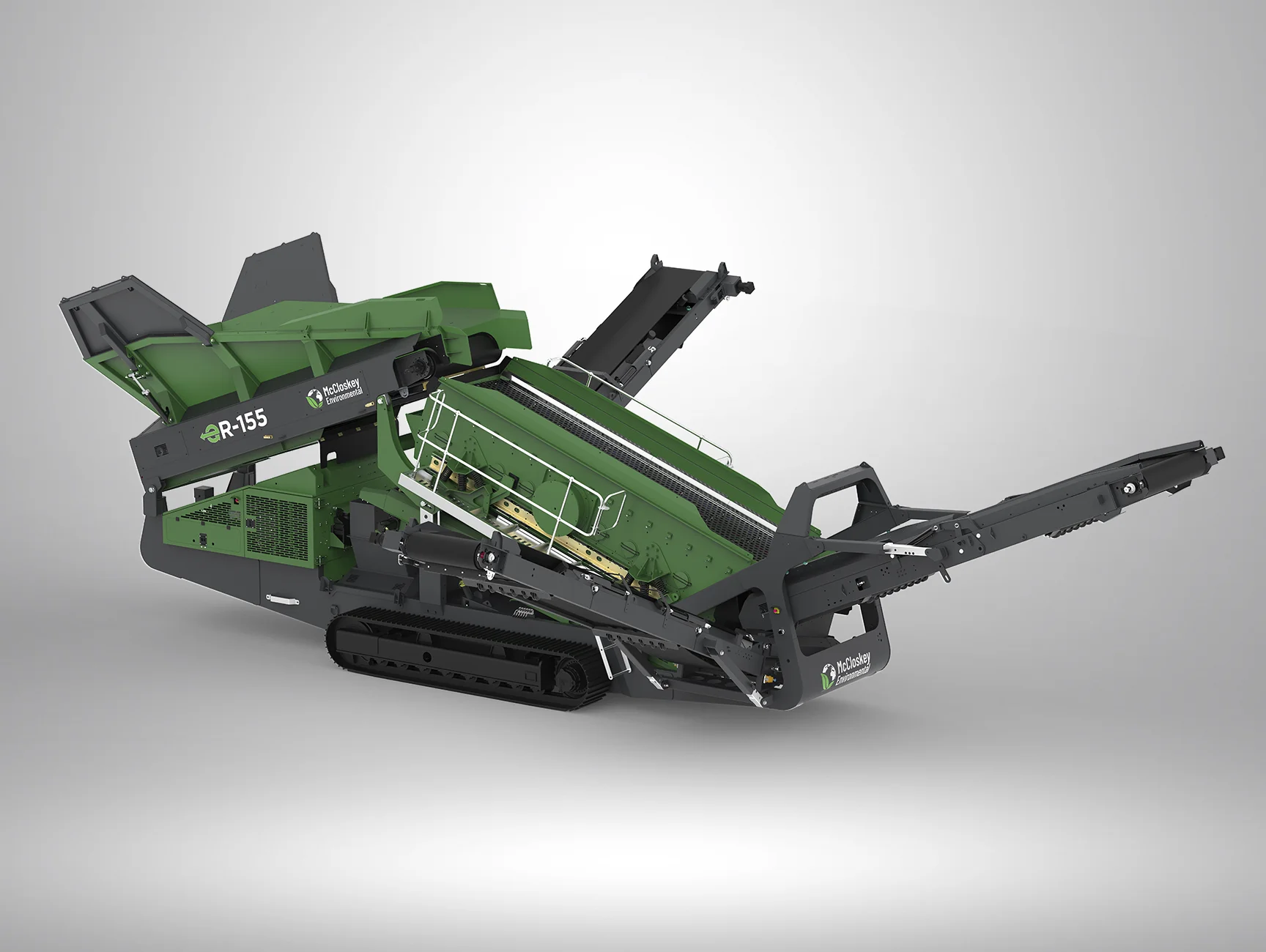

McCloskey Environmental ER-155 heavy-duty scalping screener with tracked chassis, direct-feed hopper, and extended conveyors.

Key features

  • 5′ × 16′ heavy-duty high-energy 2-bearing screenbox
  • 130 hp diesel engine
  • No more slow loading
  • Direct-feed Hardox-lined hopper
  • Travel-out fixed walkways
  • Integrated hydraulic folding stockpiling conveyors
  • Fast on-site setup time of approximately 10 minutes
  • Screen raises at lower end for easy bottom deck access
  • Service standing room inside powerpack
  • Track mobile configuration

Technical specifications

Engine

130 hp / 98 kW diesel

Screenbox dimensions

5′ × 16′

Screenbox area

155 ft²

Stockpile height — extended tail conveyor

12′ 3″

Stockpile height — side fines conveyor

13′

Stockpile height — side mid conveyor

11′ 10″


Transport

Length

50′ 2″

Width

9′ 8″

Height

11′ 7″

Weight

79,600
