ER-230

The McCloskey Environmental ER-230 is built for producers who need heavy-duty screening power, strong output, and reliable performance in demanding scalping applications. Besides, he is one of the most robust, durable and powerful heavy-duty mobile screeners at work nowadays.
Some jobs require more than a standard mobile screener. With its 6′ × 20′ high-energy screenbox, direct feed lined hopper, integrated hydraulic folding conveyors, and 225 hp diesel engine, the ER-230 is made to handle tough feed material while keeping production moving. It can work as a stand-alone plant to produce finished material, or it can scalp recycled material before a picking station to remove fines and improve downstream processing.
Type
Product Brochure CEC Brochure
McCloskey Environmental ER-230 heavy-duty mobile screener with 6′ × 20′ screenbox, tracked chassis, and folding conveyors.

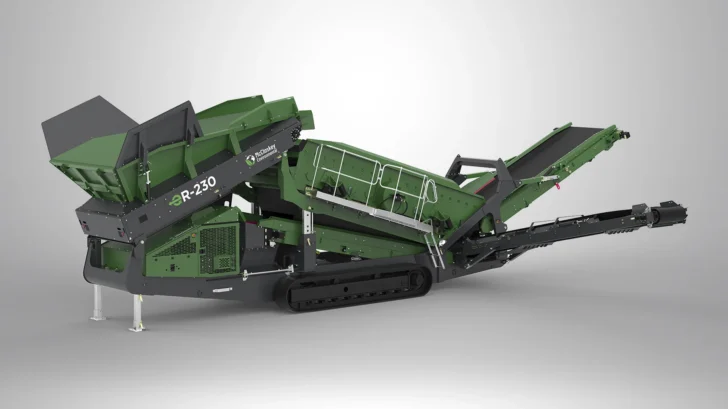

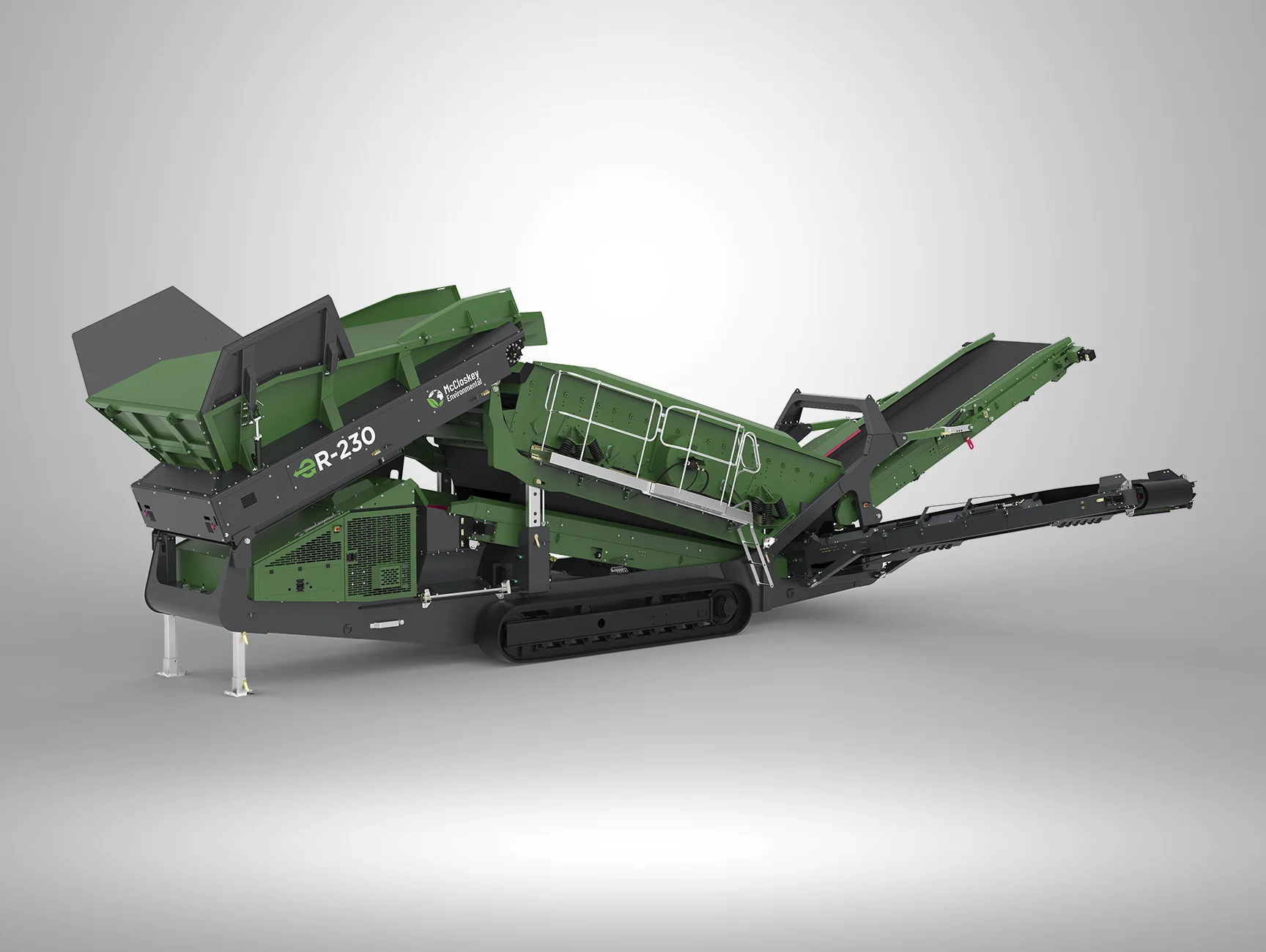

Side view of the McCloskey Environmental ER-230 Screener showing the lined feed hopper, screenbox, tracks, and discharge conveyors.

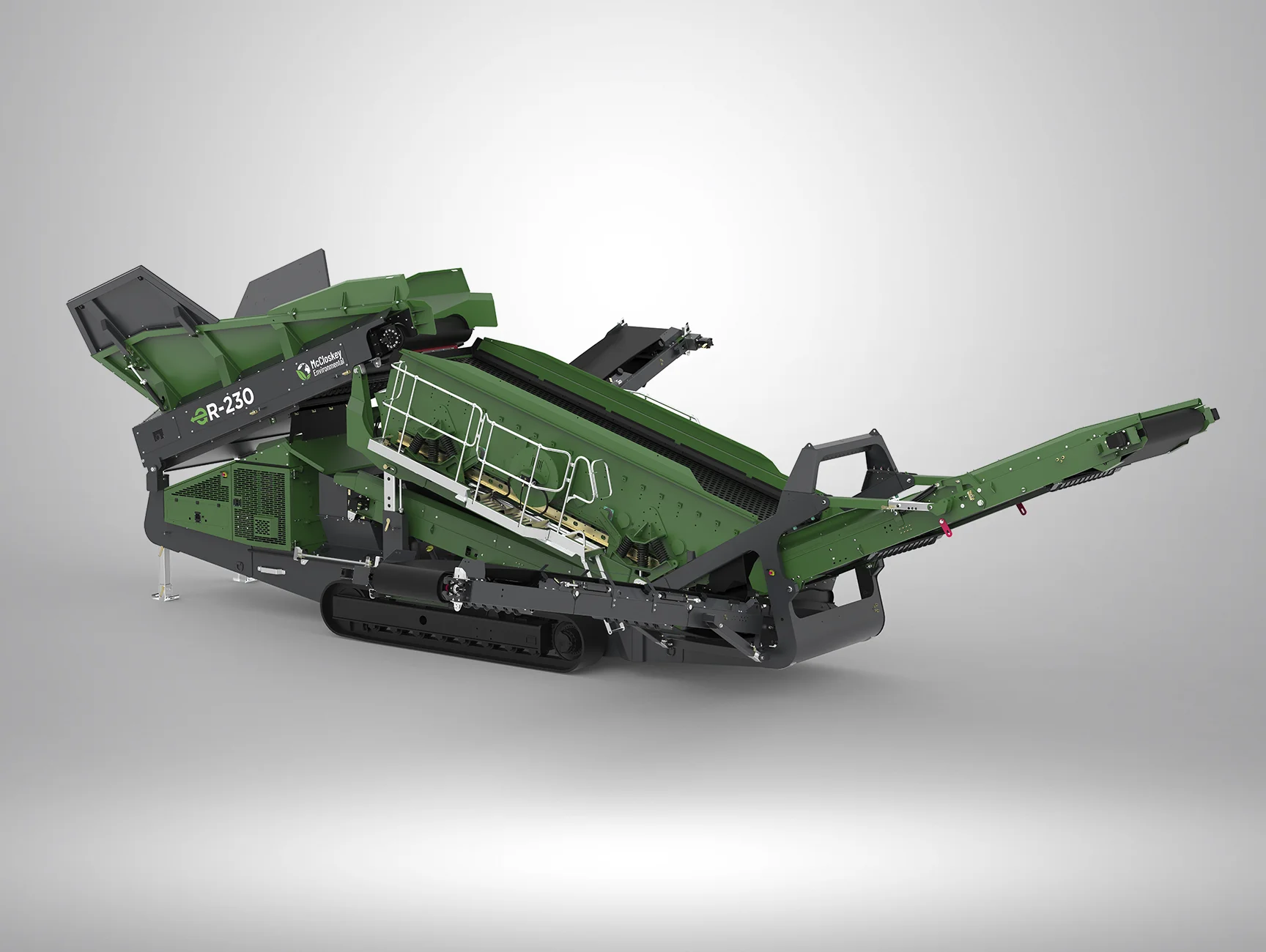

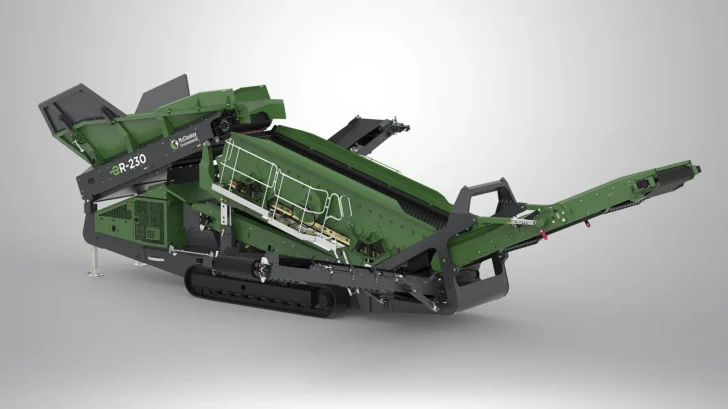

Angled view of the ER-230 mobile screener with high-energy screenbox, access platform, tracked undercarriage, and stockpiling conveyors.

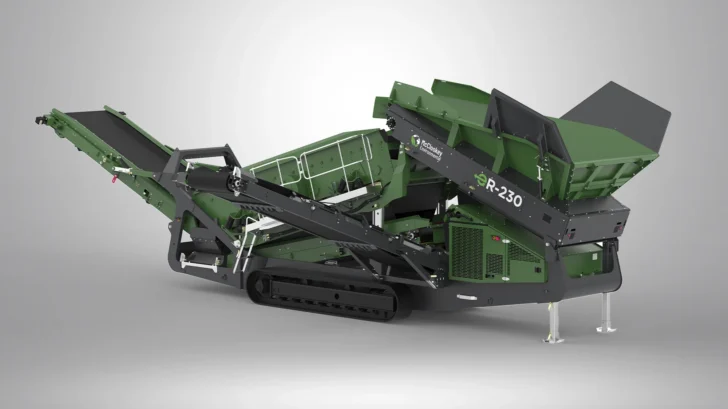

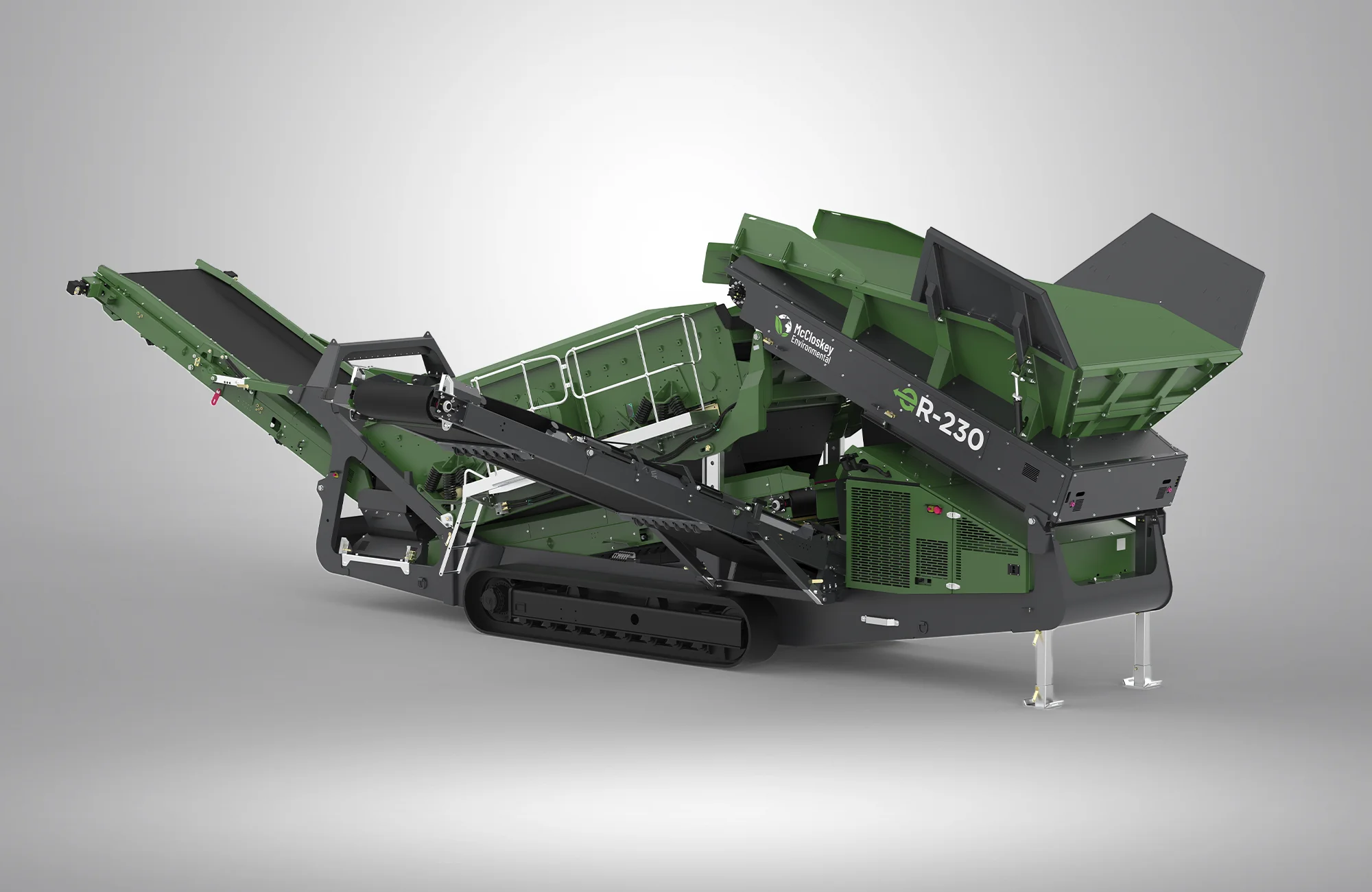

Rear angle of the McCloskey Environmental ER-230 showing the feed hopper, hydraulic folding conveyors, service access, and crawler tracks.
Side view of the McCloskey Environmental ER-230 Screener showing the lined feed hopper, screenbox, tracks, and discharge conveyors.
Angled view of the ER-230 mobile screener with high-energy screenbox, access platform, tracked undercarriage, and stockpiling conveyors.
Rear angle of the McCloskey Environmental ER-230 showing the feed hopper, hydraulic folding conveyors, service access, and crawler tracks.

Key features

  • 6′ × 20′ heavy-duty high-energy 2-bearing screenbox
  • 225 hp diesel engine
  • Direct feed lined hopper
  • Travel-out fixed walkways
  • Fast on-site setup time of approximately 10 minutes
  • Integrated hydraulic folding stockpiling conveyors
  • Screen raises at lower end for easy bottom deck access
  • Service standing room inside powerpack

Technical specifications

Engine

225 hp / 168 kW diesel

Screenbox dimensions

6′ × 20′

Stockpile height — tall conveyor

12′ 6″

Stockpile height — mid product conveyor

12′

Stockpile height — fine product conveyor

13′ 5″


Transport

Length

55′ 8″

Width

9′ 10″

Height

11′ 6″

Weight

82,000 lb
