ET-512A

The McCloskey Environmental ET-512A Trommel gives mid-size operations a portable screening solution with proven performance, fast setup, and strong production capability. It is the best-selling medium-sized portable trommel in North America.
Built for topsoil producers, contractors, and landscape supply operators, the ET-512A combines a 5′ × 12′ heavy-duty drum, wheeled mobility, and an extended fines conveyor to keep material moving efficiently on site. Its compact transport size, ground-level adjustable brushes, and quick setup time make it a practical choice for operations that need reliable screening performance without a complicated setup process.

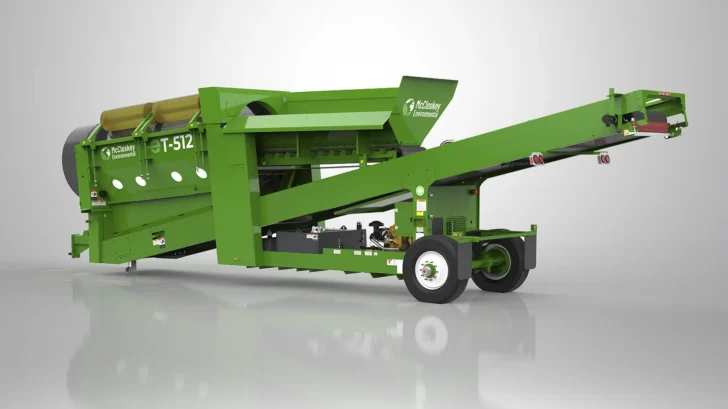

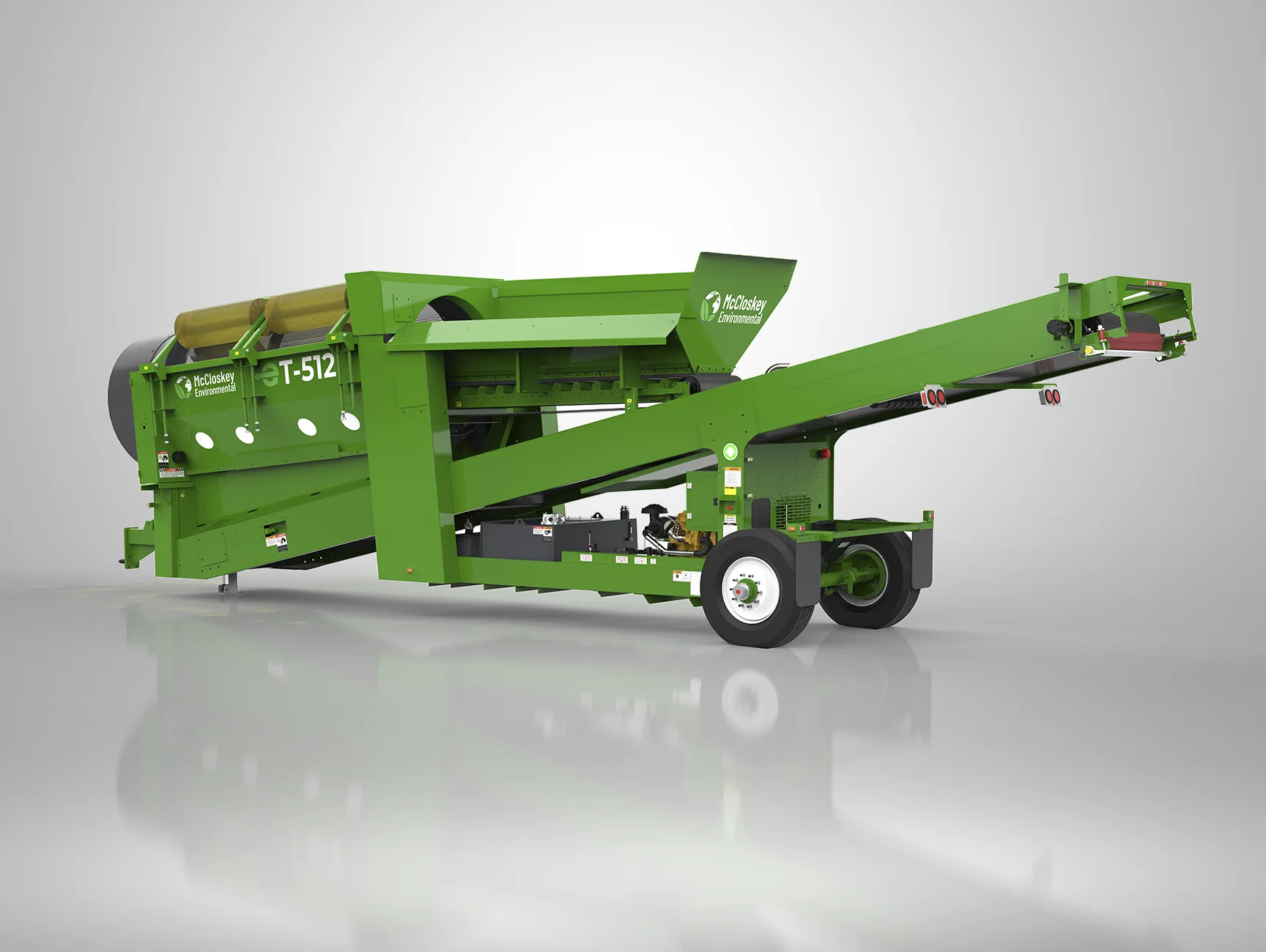

McCloskey Environmental ET-512A portable trommel with 5′ × 12′ drum, wheeled frame, and extended fines conveyor.

Key features

  • 5′ × 12′ heavy-duty trommel drum
  • 55 kW / 74 hp engine
  • Wheeled mobility
  • Fast on-site setup time of approximately 10 minutes
  • Fines conveyor positioned at the end of the trommel
  • 48″ wide fines conveyor belt
  • Ground-level adjustable brushes
  • 4.5 yd³ hopper capacity

Technical specifications

Engine

55 kW / 74 hp

Drum

5′ × 12′

Fines conveyor belt width

48″

Hopper capacity

4.5 yd³


Transport

Length

40′ 0″

Width

8′ 6″

Height

11′ 6.5″

Weight

21,500 lb
