ET-512R

The McCloskey Environmental ET-512R Trommel is made for mid-size operations that need portable screening performance with added stockpiling flexibility. It is the best-selling medium-sized portable trommel in North America.
For contractors, topsoil producers, and landscape supply operators, the ET-512R combines a 5′ × 12′ heavy-duty trommel drum with wheeled mobility and an integrated radial conveyor. As a result, operators can screen material efficiently, build stockpiles more easily, and adjust the conveyor position without adding extra handling equipment. Its fast setup time, remote control radial conveyor, and ground-level adjustable brushes make it a practical option for sites that need reliable production with simple operation.

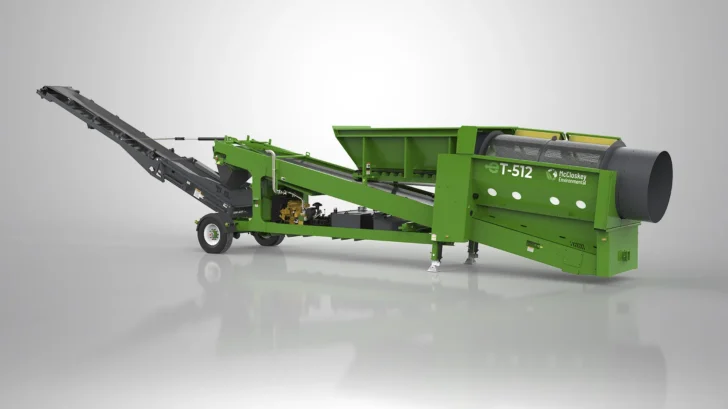

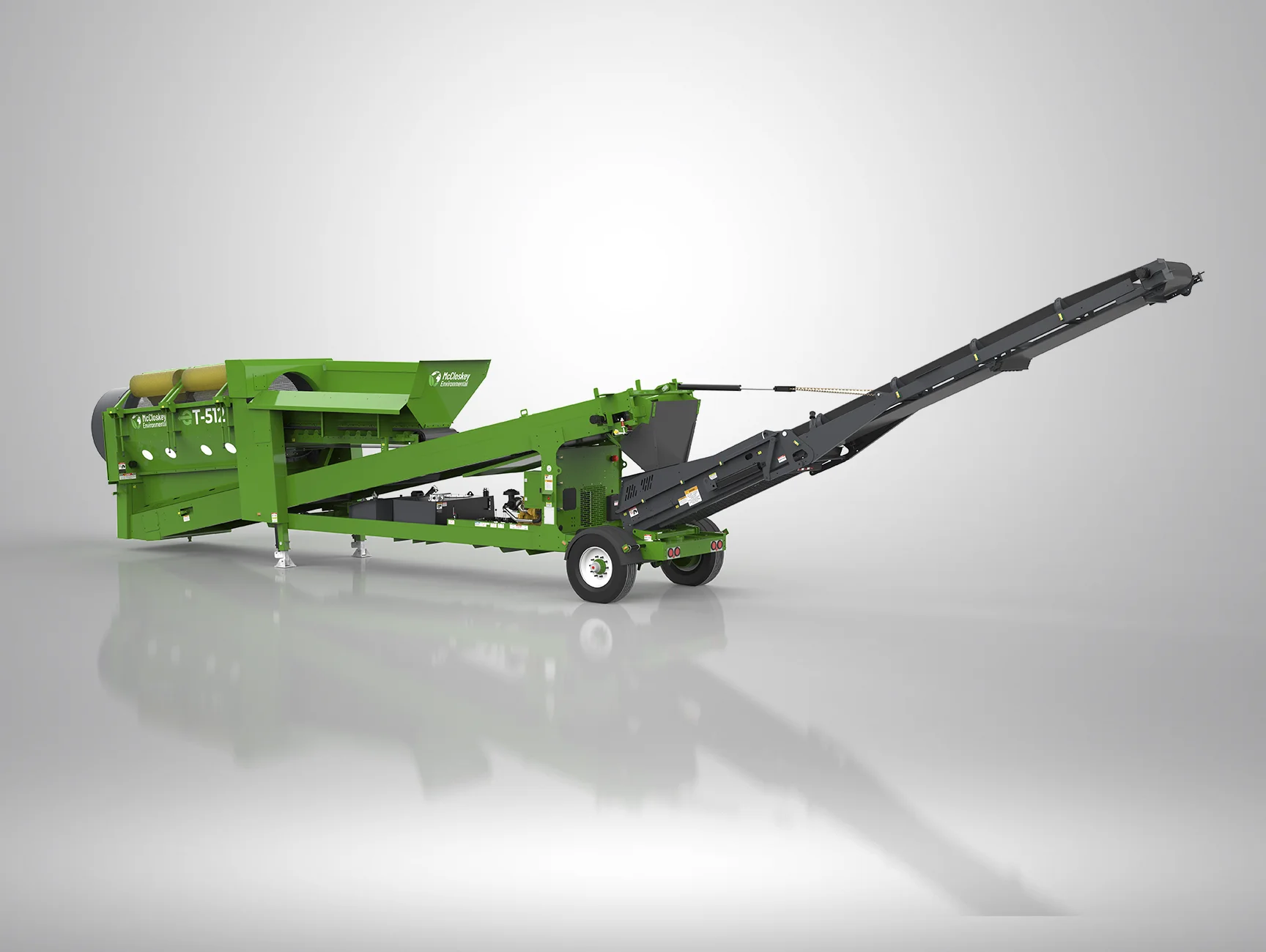

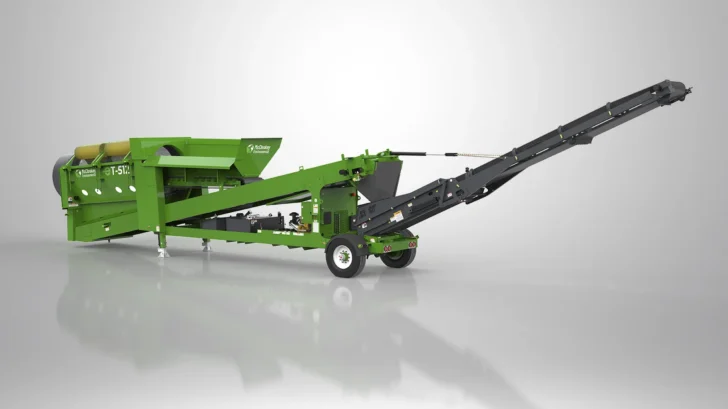

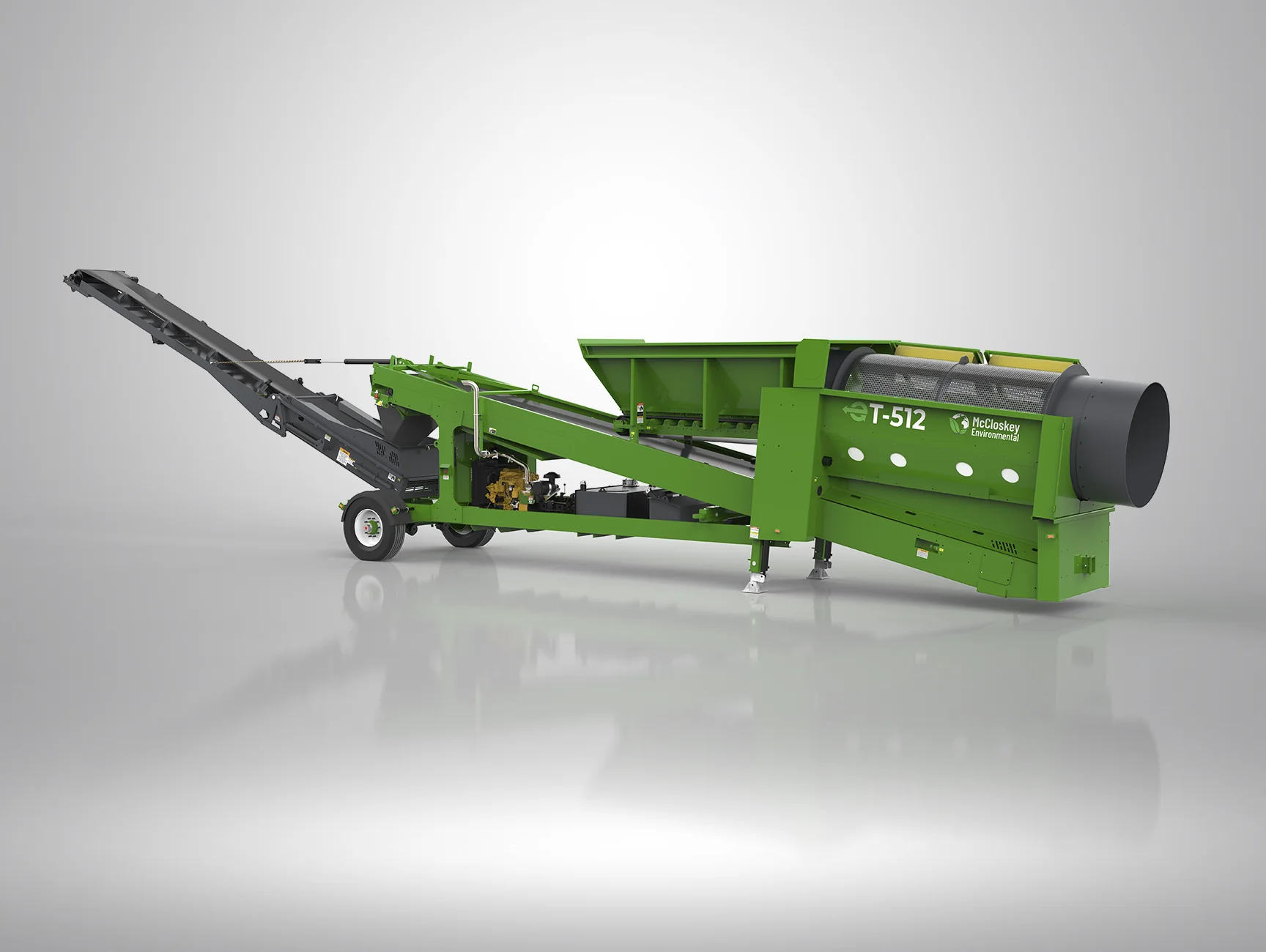

McCloskey Environmental ET-512R portable trommel with 5′ × 12′ drum, wheeled frame, and radial stockpiling conveyor.

Key features

  • 5′ × 12′ heavy-duty trommel drum
  • Integrated hydraulic folding stockpiling conveyors
  • Wheeled mobility
  • Fast on-site setup time of approximately 10 minutes
  • Remote control radial conveyor
  • 55 kW / 74 hp engine
  • Ground-level adjustable brushes
  • 4.5 yd³ hopper capacity

Technical specifications

Engine

55 kW / 74 hp

Drum

5′ × 12′

Fines conveyor belt width

48″

Hopper capacity

4.5 yd³

Radial conveyor stockpile height

14′ 9″


Transport

Length

47′ 11″

Width

8′ 6″

Height

13′ 6″

Weight

27,000 lb
