ET-516RE

The McCloskey Environmental ET-516RE Trommel gives larger producers more screening capacity in a mobile, easy-to-deploy package, to improve quality and meet high demand.
Designed for topsoil, compost, sand and gravel, and wood chip applications, the ET-516RE uses a longer 5′ × 16′ drum to keep material in the screening area for more time. In addition, its three screen sections give operators more flexibility when producing different material sizes, while the hydraulic folding conveyors help move finished and oversize material efficiently into stockpiles. For tougher applications, the available hydraulic tipping grid helps scalp large material before it reaches the drum.

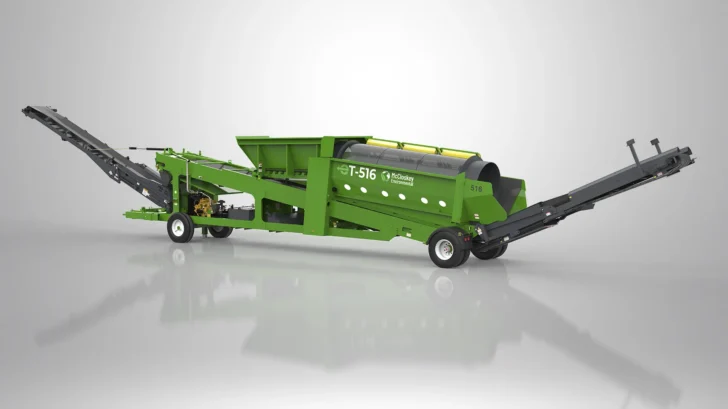

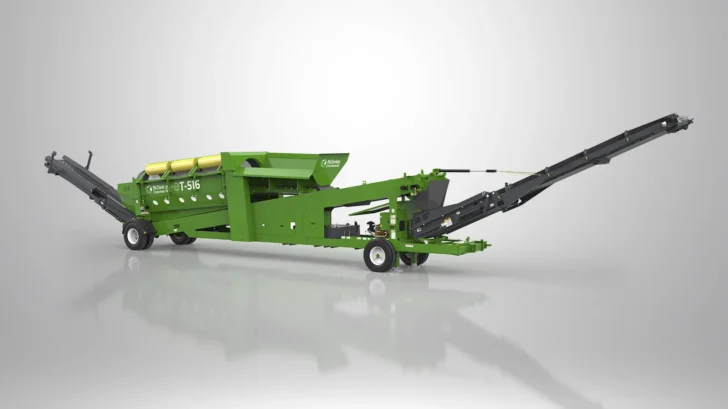

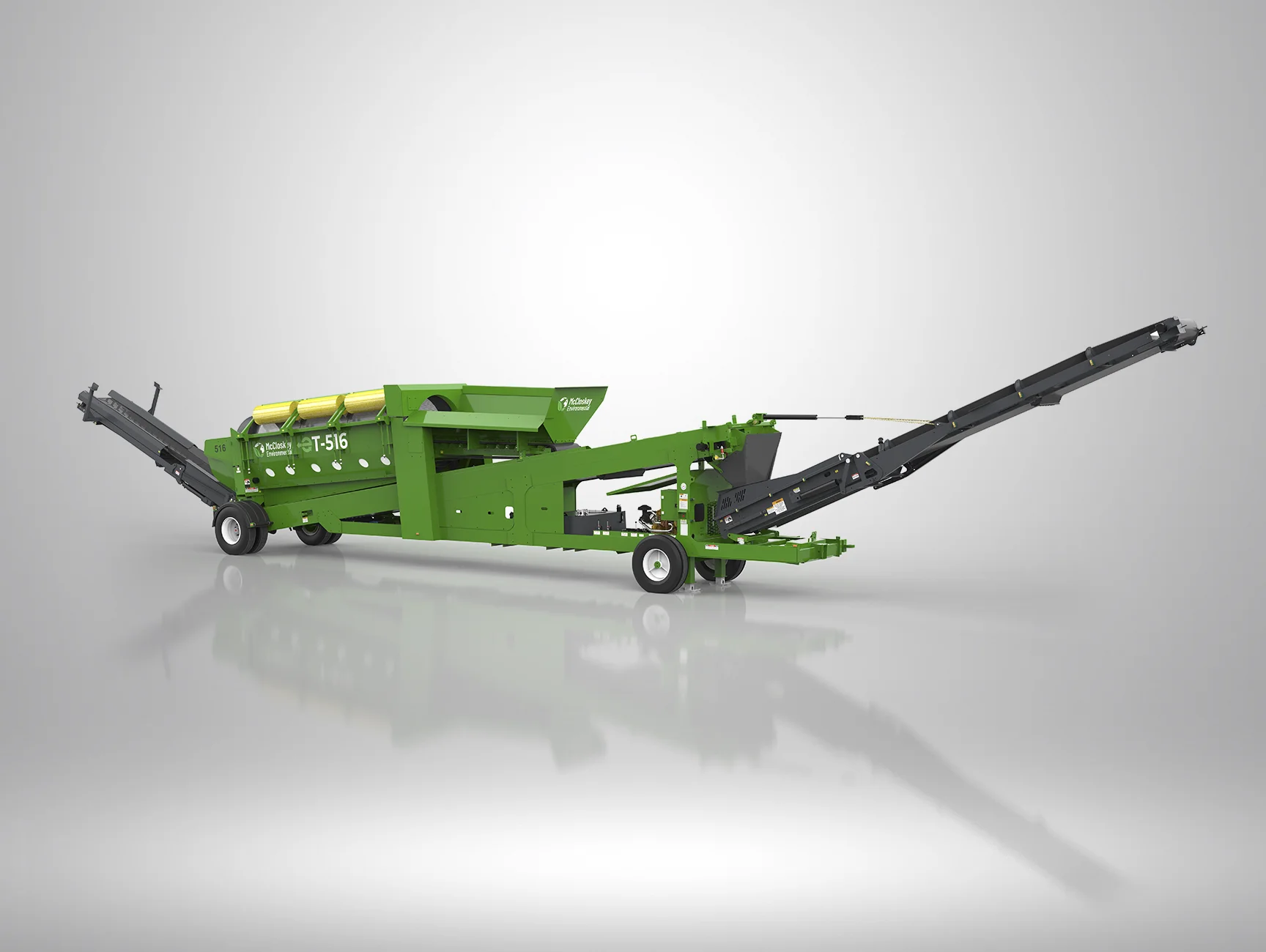

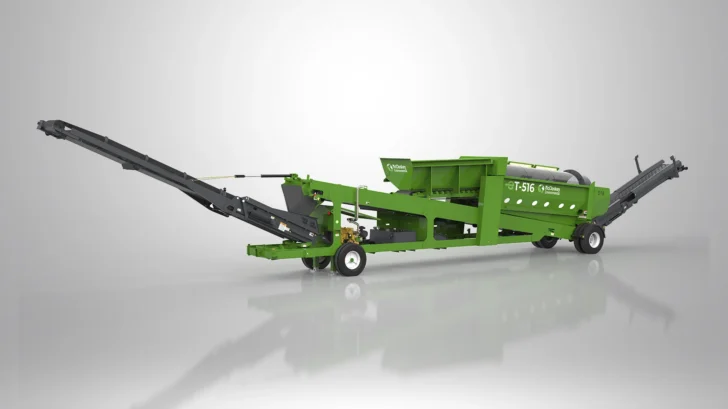

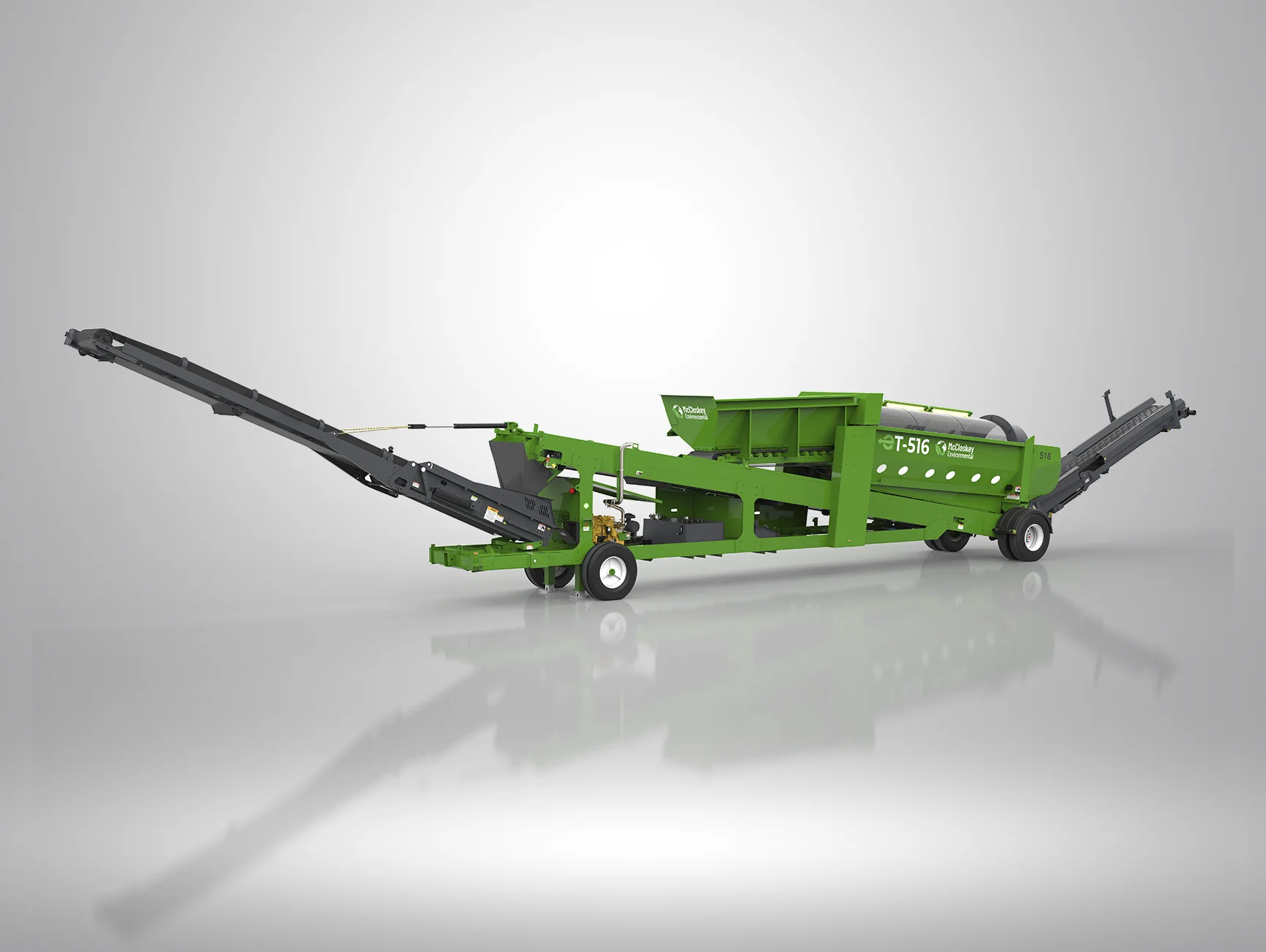

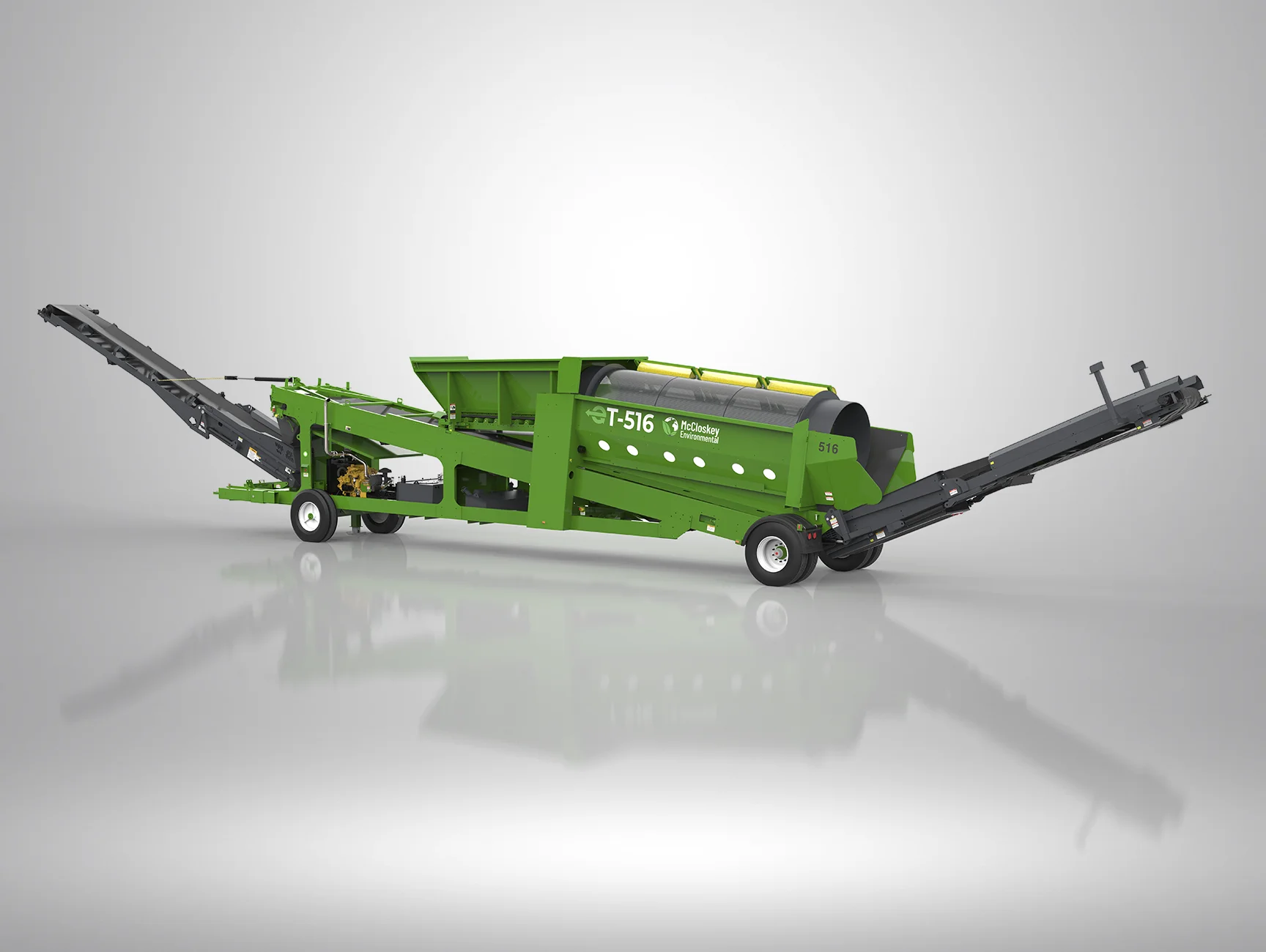

McCloskey Environmental ET-516RE mobile trommel with 5′ × 16′ drum, wheeled chassis, and extended stockpiling conveyors.

Key features

  • 5′ × 16′ heavy-duty trommel drum
  • Integrated hydraulic folding stockpiling conveyors
  • Wheeled mobility
  • Fast on-site setup time of approximately 10 minutes
  • Radial controlled conveyor
  • Large engine bay
  • Hydraulic tipping grid option
  • Ground-level adjustable brushes

Technical specifications

Engine

55 kW / 74 hp

Drum

5′ × 16′

Radial conveyor

15′ 1″

Stockpile height — oversize conveyor

10′ 1″

Hopper capacity

4.5 yd³


Transport

Length

52′ 6.5″

Width

9′ 6″

Height

13′ 7″

Weight

36,000 lb
