ET-516RT

The McCloskey Environmental ET-516RT Trommel brings 5′ × 16′ screening performance to operations that need tracked mobility, fast setup, and dependable production on changing job sites.
With its longer drum and three screen sections, the ET-516RT gives material more time to separate while helping operators fine-tune output across applications such as topsoil, compost, sand and gravel, and wood chips. In addition, the tracked undercarriage helps the machine move confidently around active sites, while the remote control radial conveyor and hydraulic folding stockpiling conveyors support efficient stockpile management. For heavy-duty feed, an optional remote control hydraulic tipping grizzly can help remove oversized material before it reaches the drum.

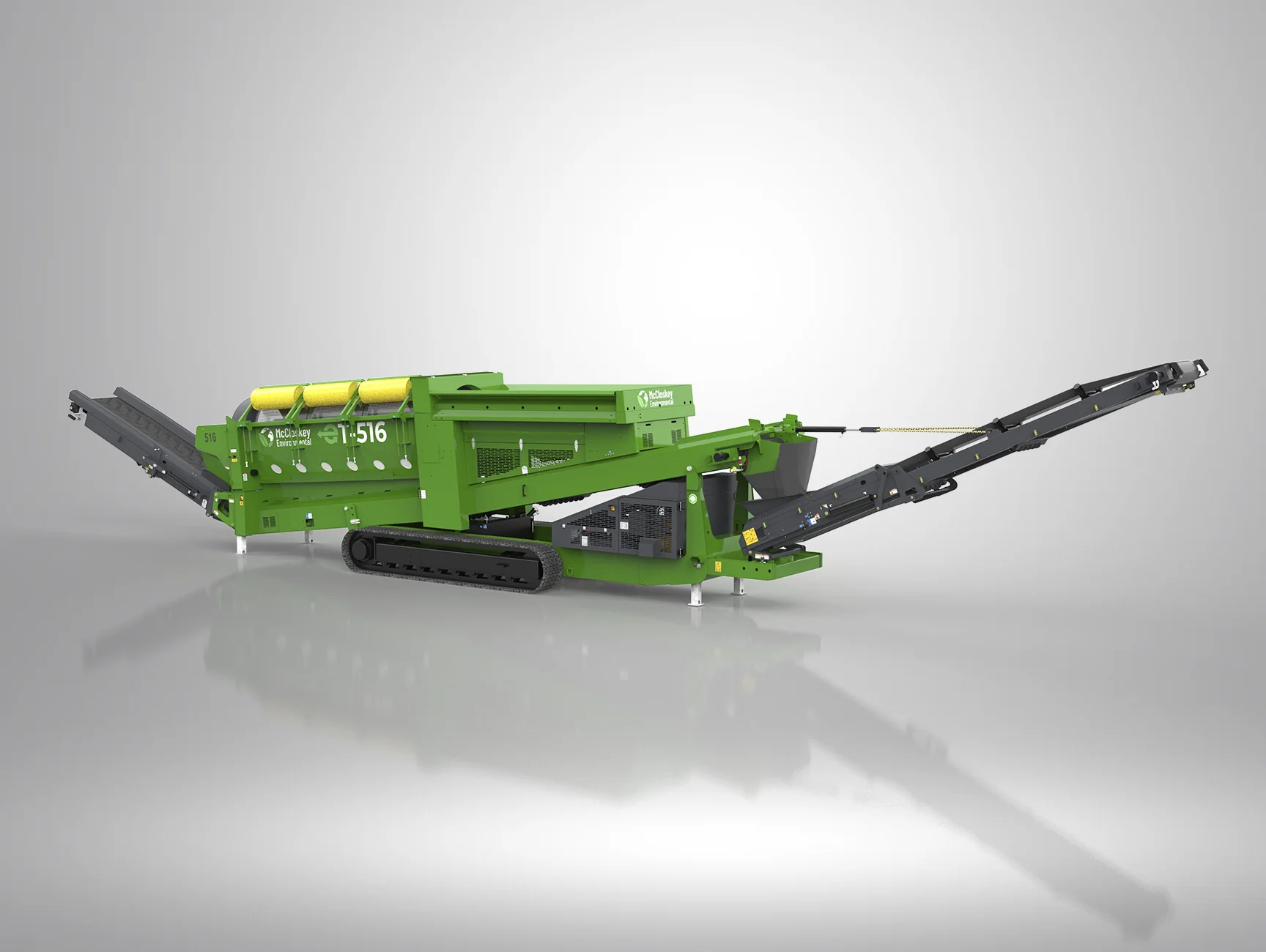

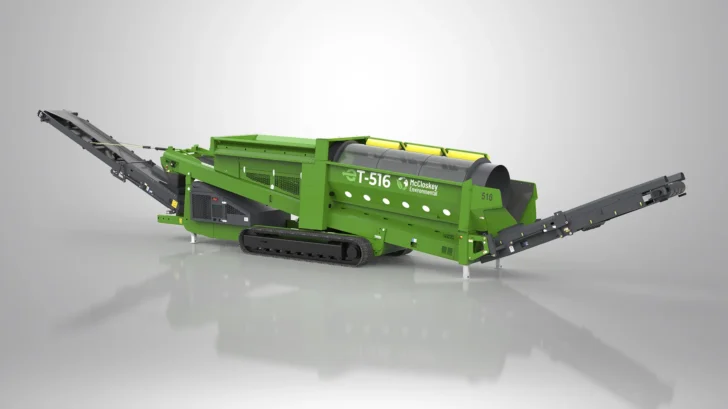

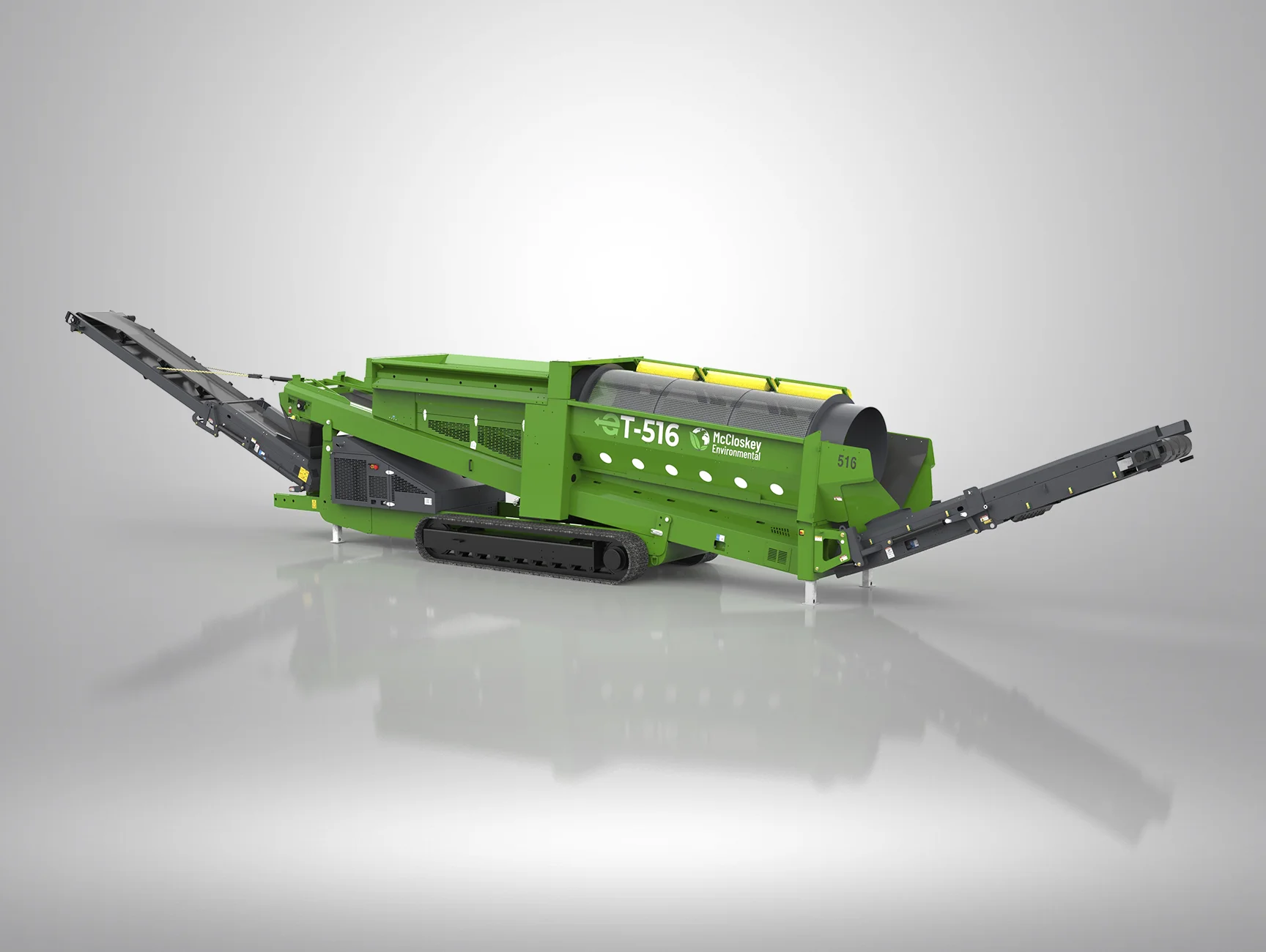

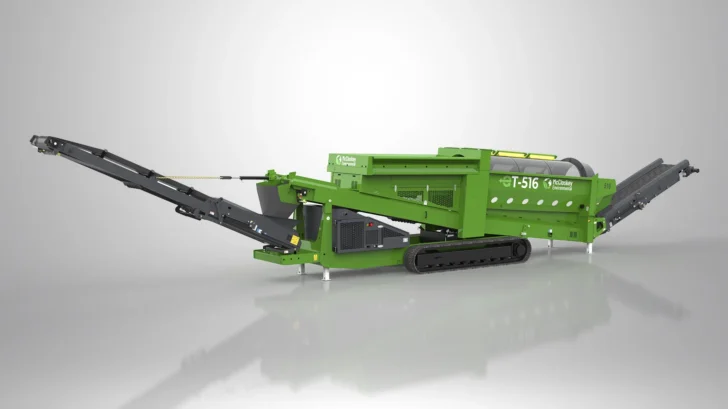

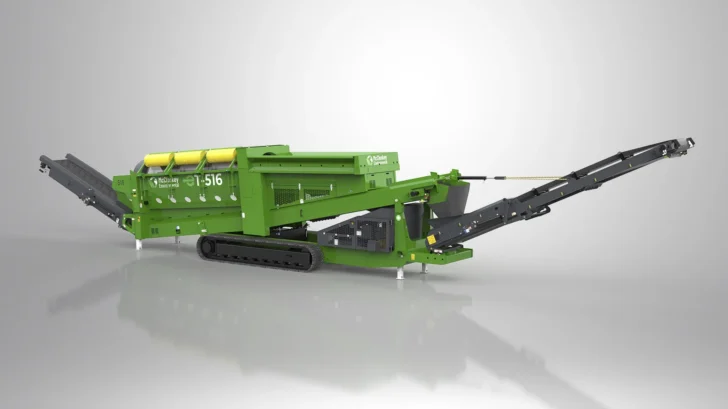

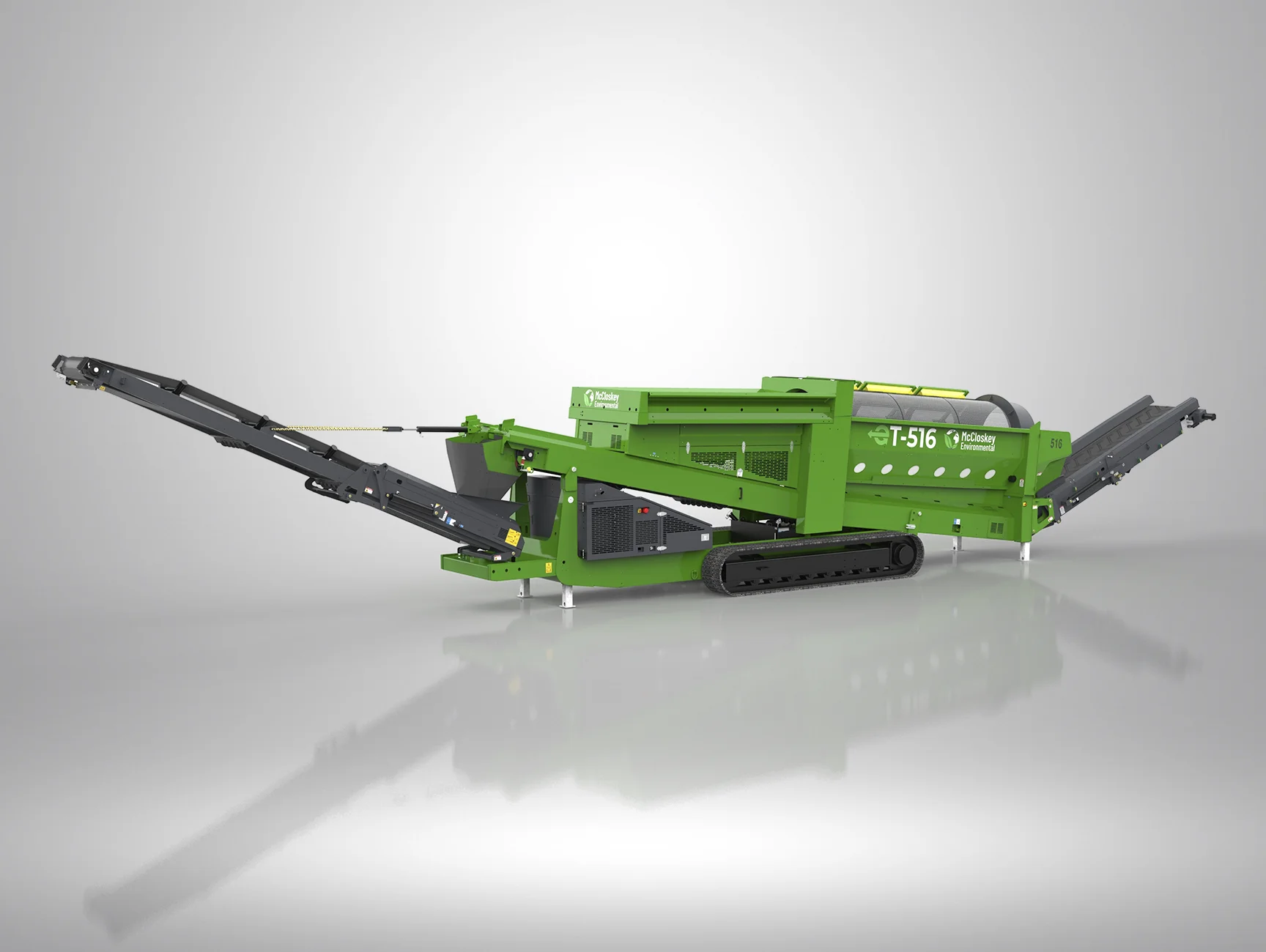

McCloskey Environmental ET-516RT tracked trommel with 5′ × 16′ drum, radial conveyor, and folding stockpiling conveyors.

Key features

  • 5′ × 16′ heavy-duty trommel drum
  • Integrated hydraulic folding stockpiling conveyors
  • Tracked mobility
  • Fast on-site setup time of approximately 10 minutes
  • Remote control radial conveyor
  • 55 kW / 74 hp engine
  • Ground-level adjustable brushes

Technical specifications

Engine

55 kW / 74 hp

Drum

5′ × 16′

Radial conveyor

12′ 10″

Hopper capacity

7 yd


Transport

Length

50′ 11″

Width

8′ 11″

Height

11′ 8″

Weight

50,000 lb
