ET-620

The McCloskey Environmental ET-620 Trommel is built for high-volume waste and organic material screening where flexibility, throughput, and tracked mobility matter.
Designed for wood waste, compost, light C&D waste, and general MSW applications, the ET-620 gives operators a practical way to screen multiple material streams with one machine. Its quick-change drum system allows the drum to be removed from the side of the machine, while the retractable feed conveyor helps speed up material changes and maintenance access. In addition, the intelligent control system helps optimize throughput by reducing the risk of drum stalling or slowdowns during operation.

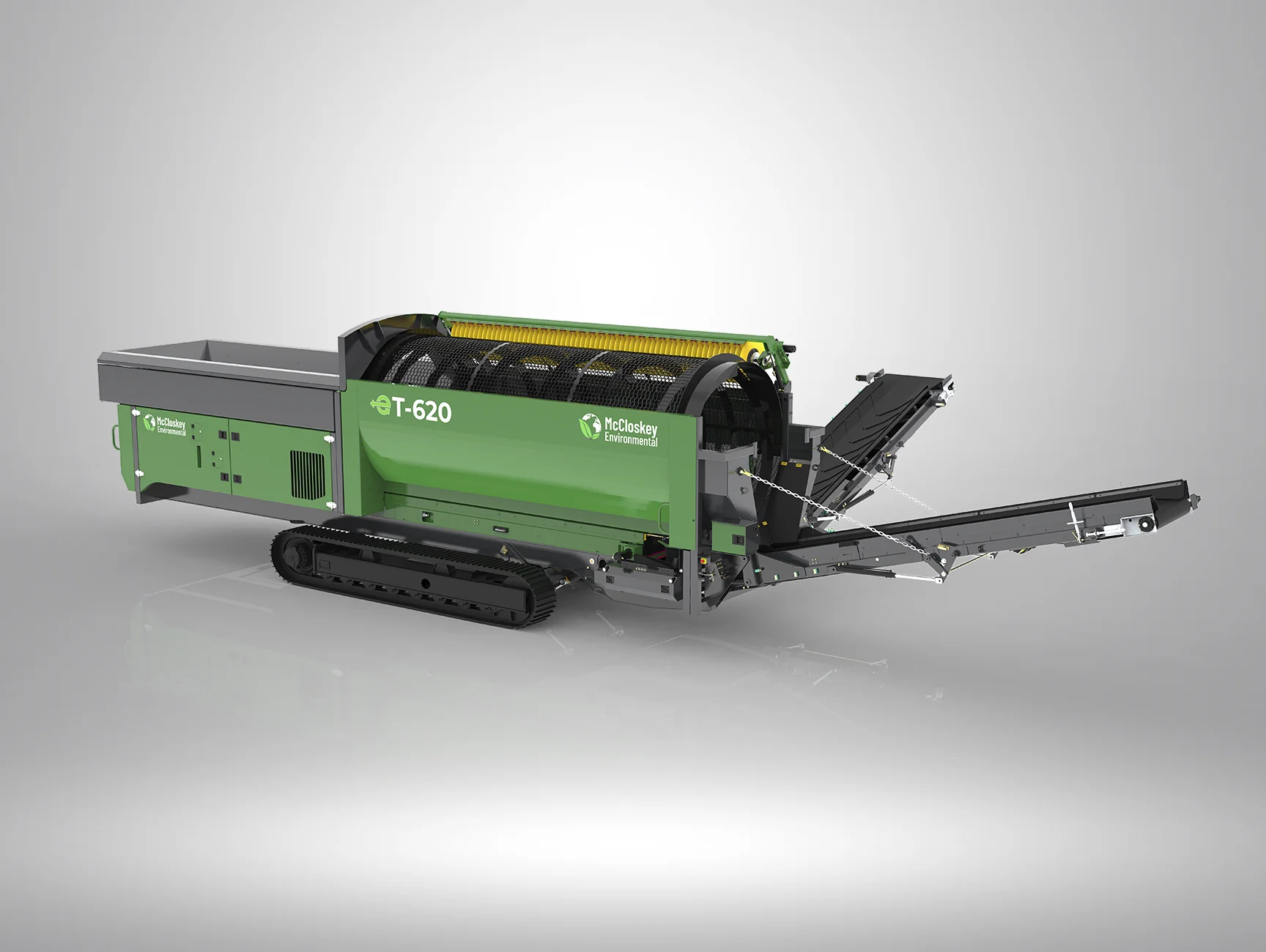

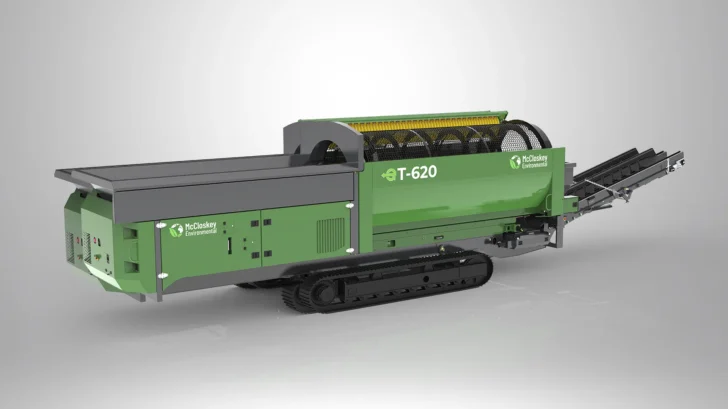

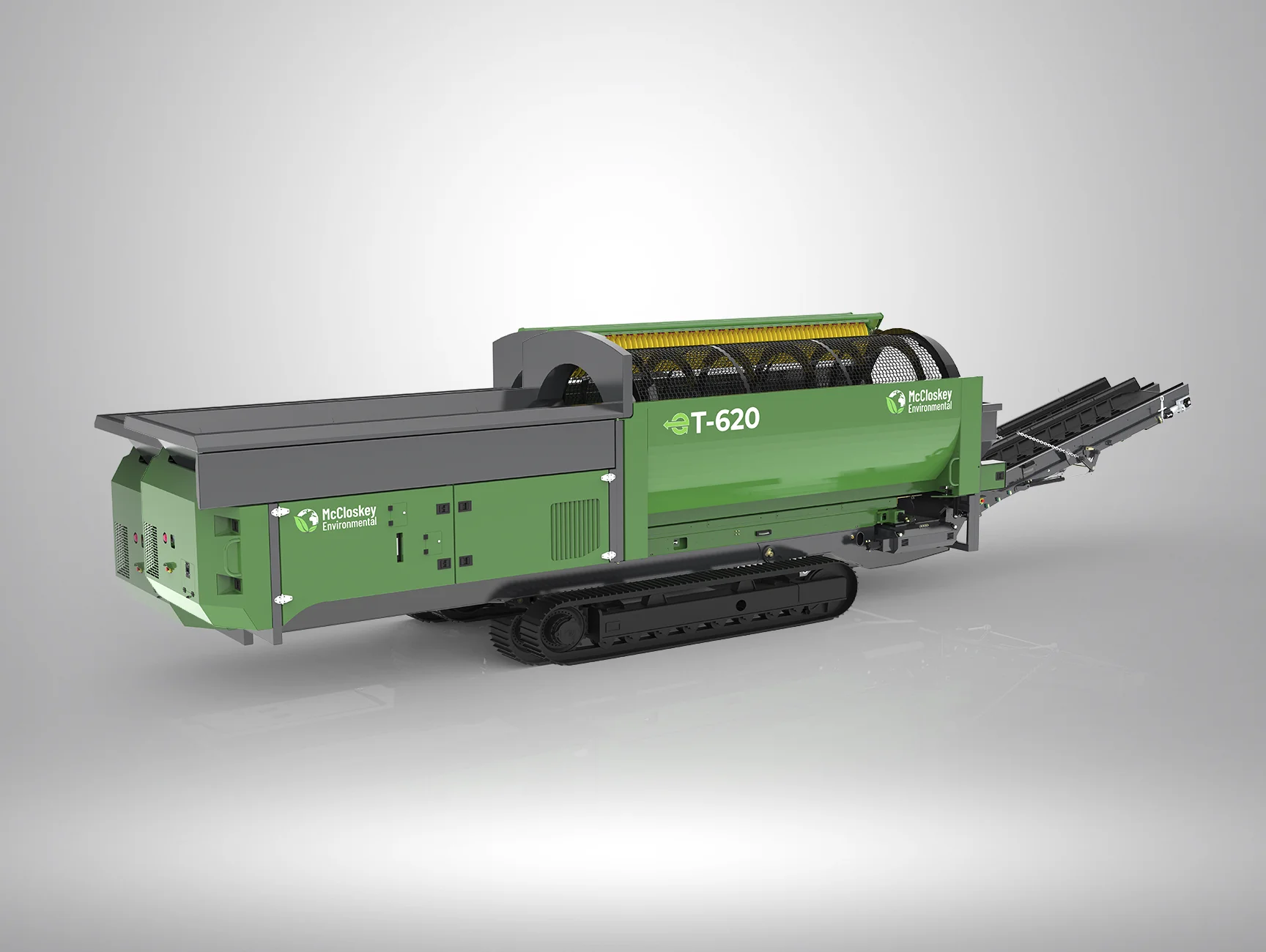

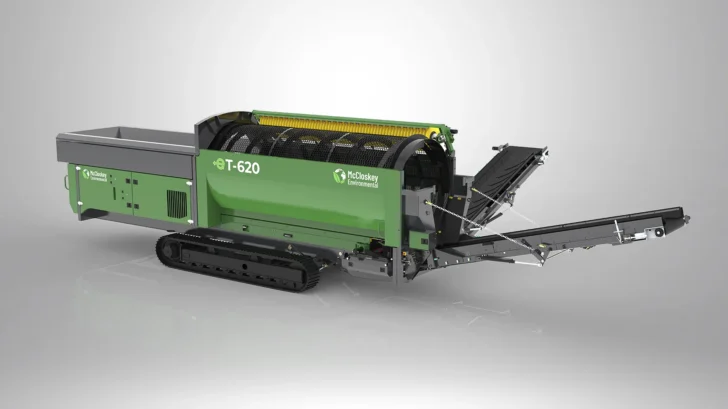

McCloskey Environmental ET-620 Trommel tracked screener for high-volume waste and compost screening

Key features

  • Hydraulically adjustable drum brushes
  • Intelligent electrical control unit
  • Variable-speed feed conveyor
  • 4 m tracks for improved maneuverability and stability
  • Hydraulically adjustable track frame increases ground clearance
  • CAT 3.6 100 kW / 135 hp Stage V / Tier 4 Final engine
  • Fuel-efficient hydraulic system
  • User-friendly hydraulic controls
  • Hydrostatic drive transmission
  • Adjustable transfer conveyor divert chute
  • Chain drive drum
  • Hydraulically adjustable conveyor angle

Technical specifications

Engine

CAT 3.6 100 kW / 135 hp Stage V / Tier 4 Final

Applications

Wood waste, compost, light C&D waste, general MSW

Drum system

Interchangeable quick-change drum

Feed conveyor

Retractable feed conveyor

Feed conveyor speed

Variable speed

Drive system

Hydrostatic drive transmission

Drum drive

Chain drive drum

Control system

Intelligent electrical control unit


Transport

Length

38′ 4″

Width

9′ 10″

Height

11′ 1″

Weight

52,910 lb
