ET-621RE

The McCloskey Environmental ET-621RE Trommel is built for large screening operations that need higher capacity, reliable uptime, and strong stockpiling performance.
For producers working with construction and demolition material, topsoil, compost, waste recycling, and other large screening applications, the ET-621RE delivers a larger 6′ × 21′ drum with fast setup and efficient material flow. Its 174 hp engine, hydraulic folding stockpiling conveyors, remote control radial conveyor, and ground-level adjustable brushes help operators keep production moving while reducing setup time and daily maintenance effort.
Type
Product Brochure CEC Brochure

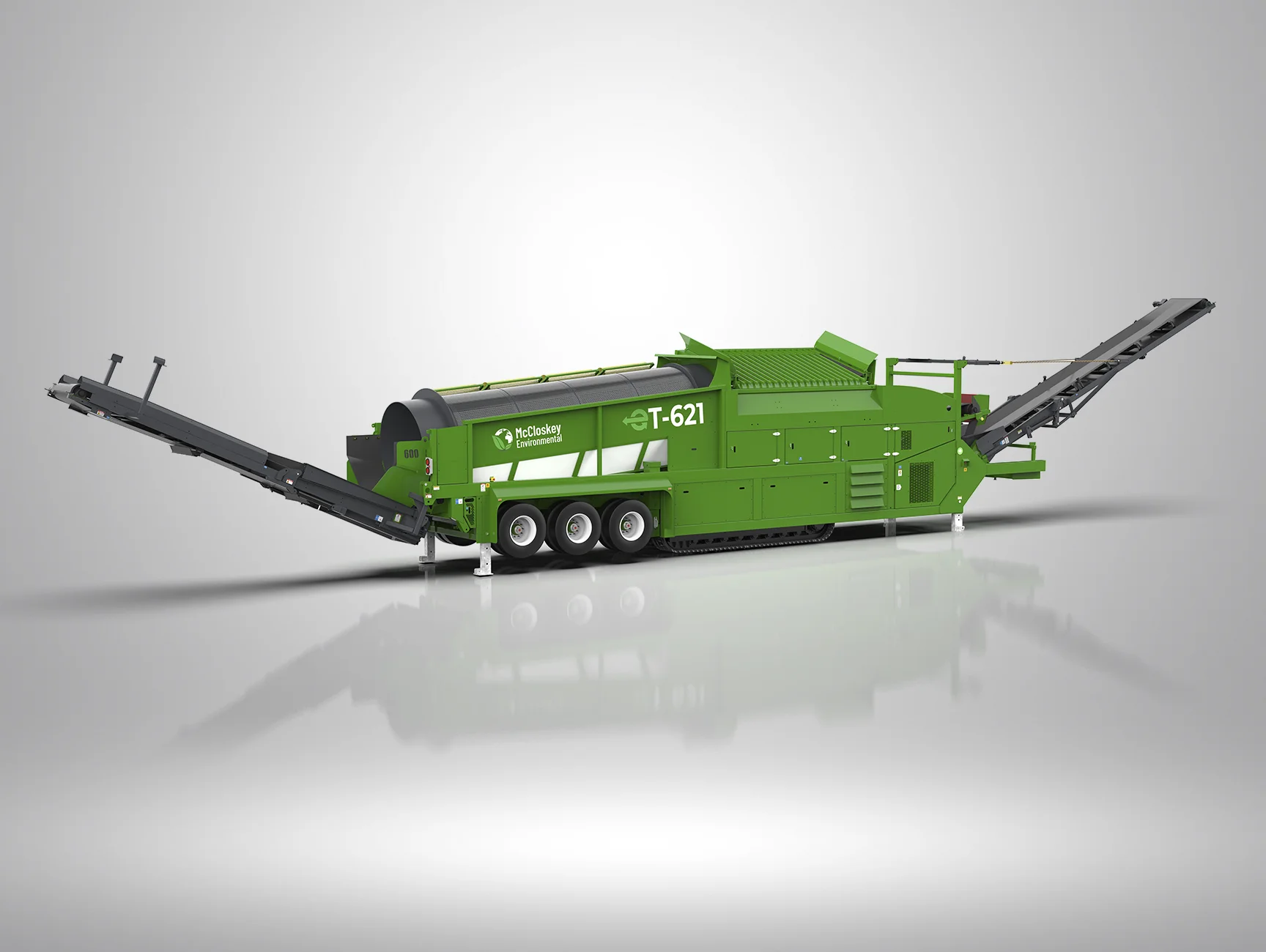

McCloskey Environmental ET-621RE Trommel with 6′ × 21′ drum, tracked base, wheels, and extended conveyors.

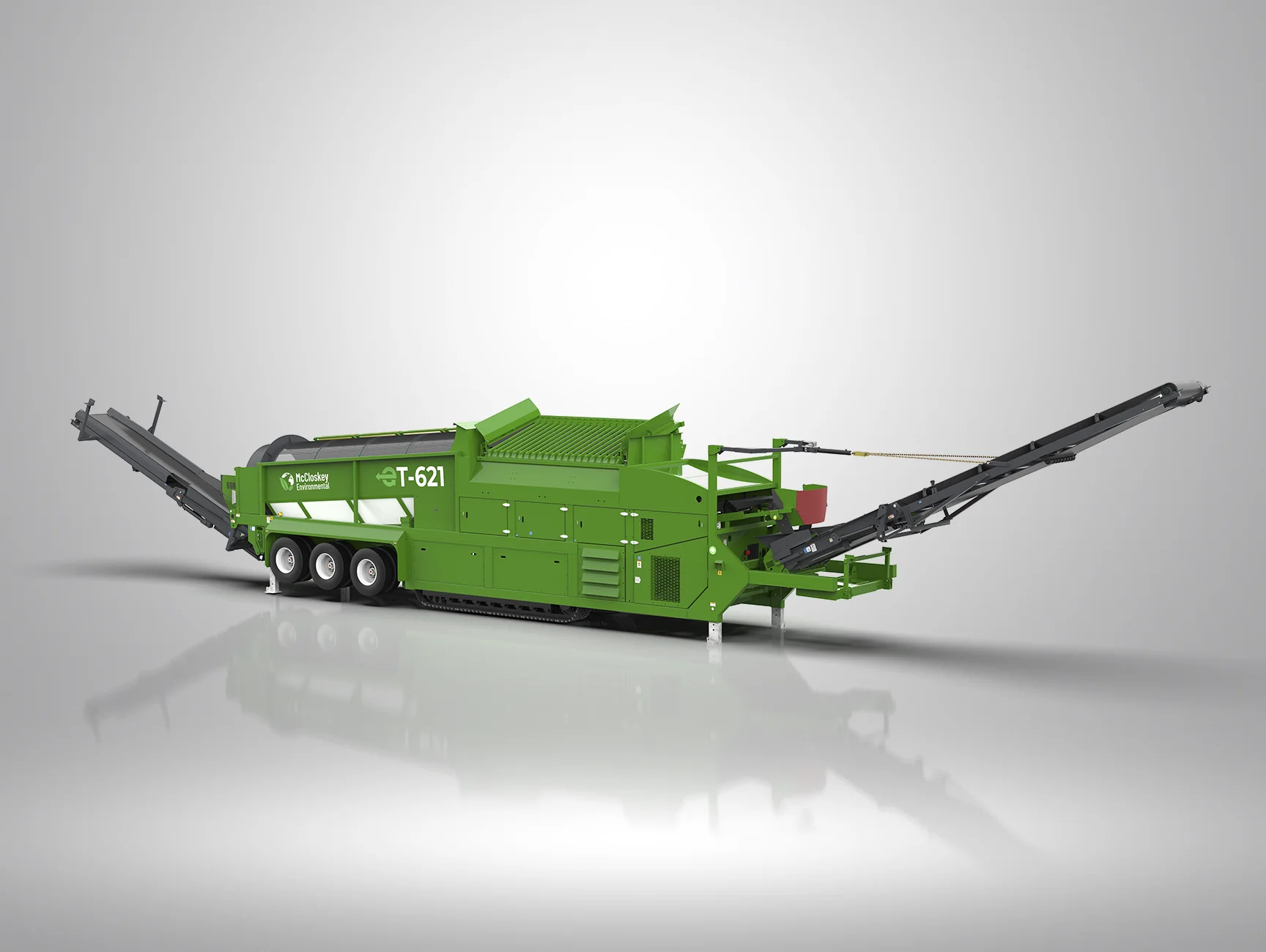

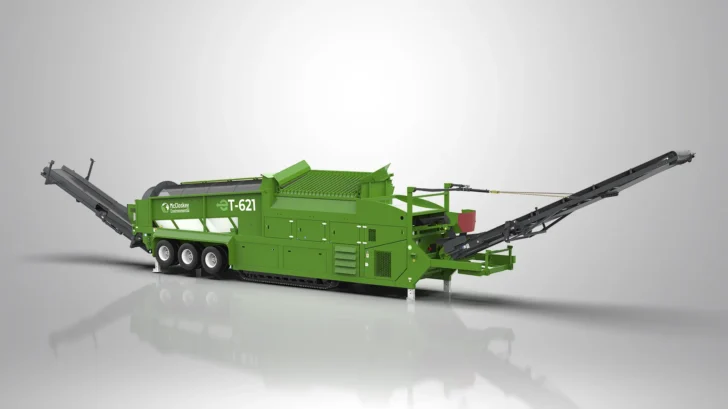

Angled view of the ET-621RE Trommel showing the feed hopper, screening drum, radial conveyor, and stockpiling conveyor layout.

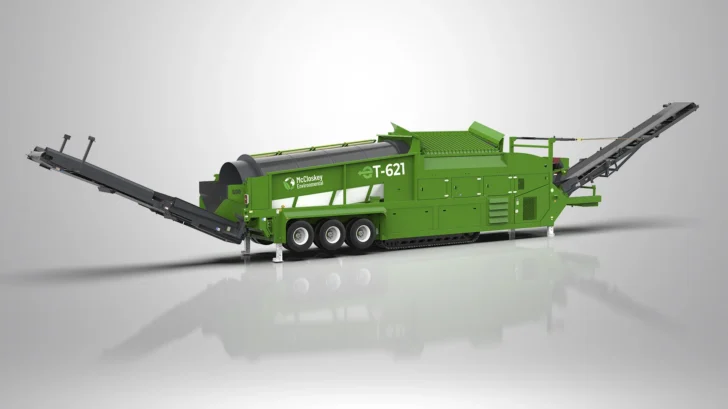

Side profile of the McCloskey Trommel with extended conveyors and heavy-duty drum section.

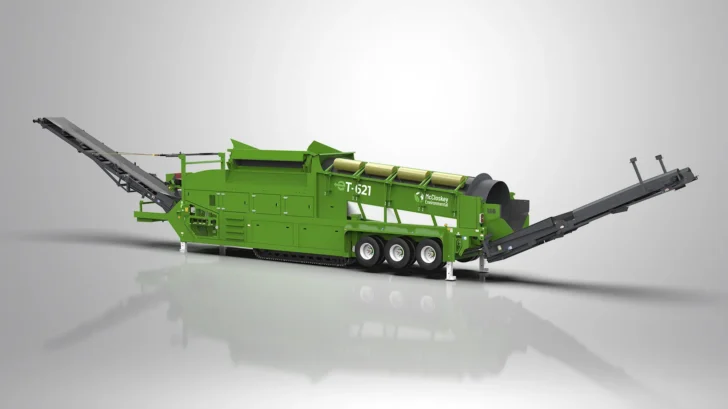

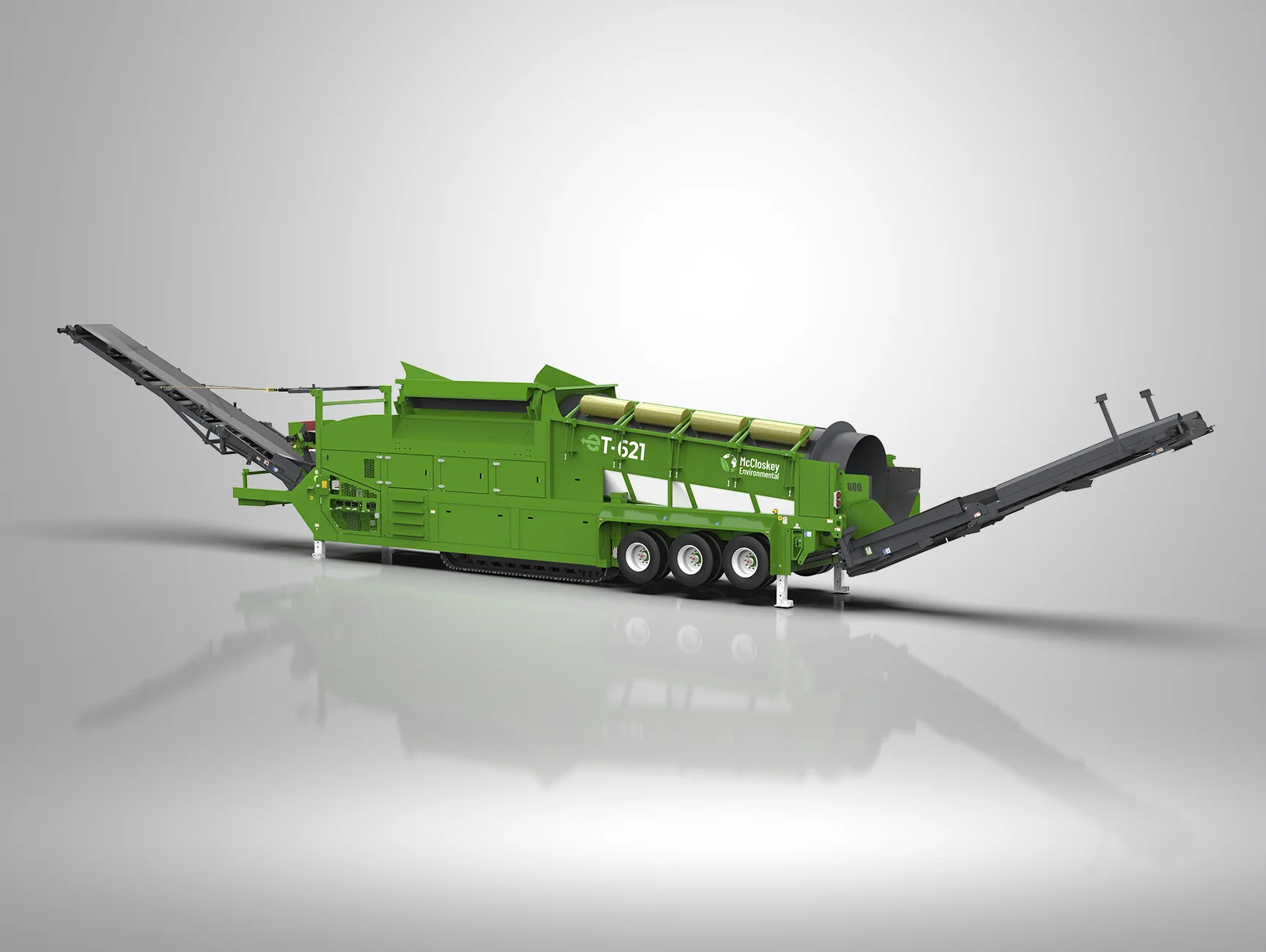

Rear angle of the Trommel showing wheels, support legs, drum enclosure, and extended discharge conveyors.
Angled view of the ET-621RE Trommel showing the feed hopper, screening drum, radial conveyor, and stockpiling conveyor layout.
Side profile of the McCloskey Trommel with extended conveyors and heavy-duty drum section.
Rear angle of the Trommel showing wheels, support legs, drum enclosure, and extended discharge conveyors.

Key features

  • 6′ × 21′ heavy-duty trommel drum
  • 130 kW / 174 hp engine
  • Integrated hydraulic folding stockpiling conveyors
  • Fast on-site setup time of approximately 10 minutes
  • Remote control radial conveyor
  • Ground-level adjustable brushes
  • 6′ × 21′ steel drum
  • Wheeled unit with 72″ spread tandem axle or tri-axle configuration

Technical specifications

Engine

130 kW / 174 hp

Drum

6′ × 21′

Radial conveyor

16′ 4″

Hopper capacity

6.5 yd


Transport

Length

60′ 9″

Width

8′ 11.5″

Height

13′ 6″

Weight

51,750 lb
