ET-628RE

The McCloskey Environmental ET-628RE Trommel is built for large-scale screening applications that need strong production, longer retention time, and dependable material separation.
With its 6′ diameter drum and extended 28′ screening length, the McCloskey ET-628RE gives material more time on the screen to help produce a cleaner, more consistent end product. Its wheeled mobility, hydraulic folding conveyors, remote control radial conveyor, and fast setup time make it a practical option for high-volume operations that need efficient screening and stockpiling without a long setup process.

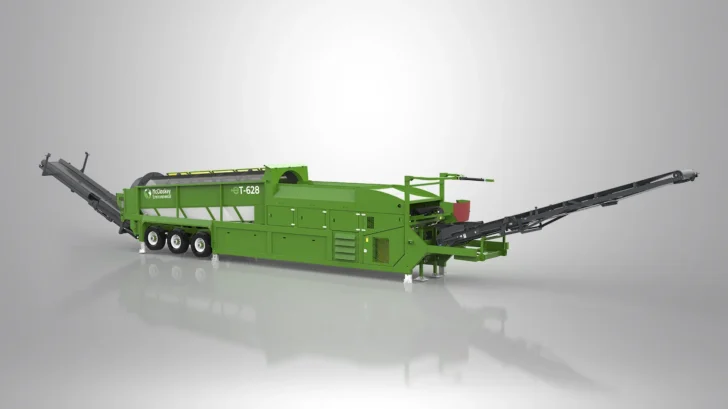

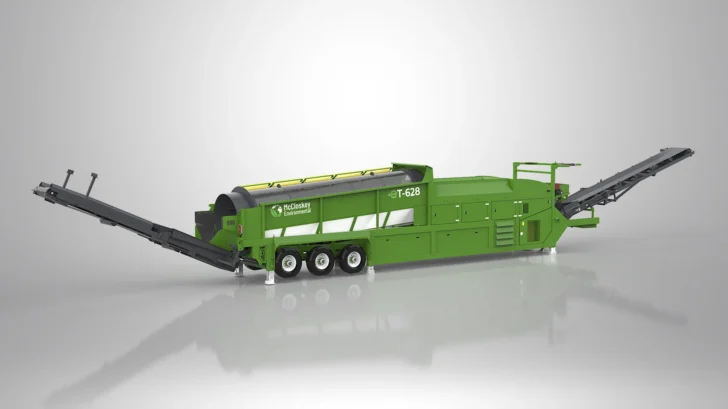

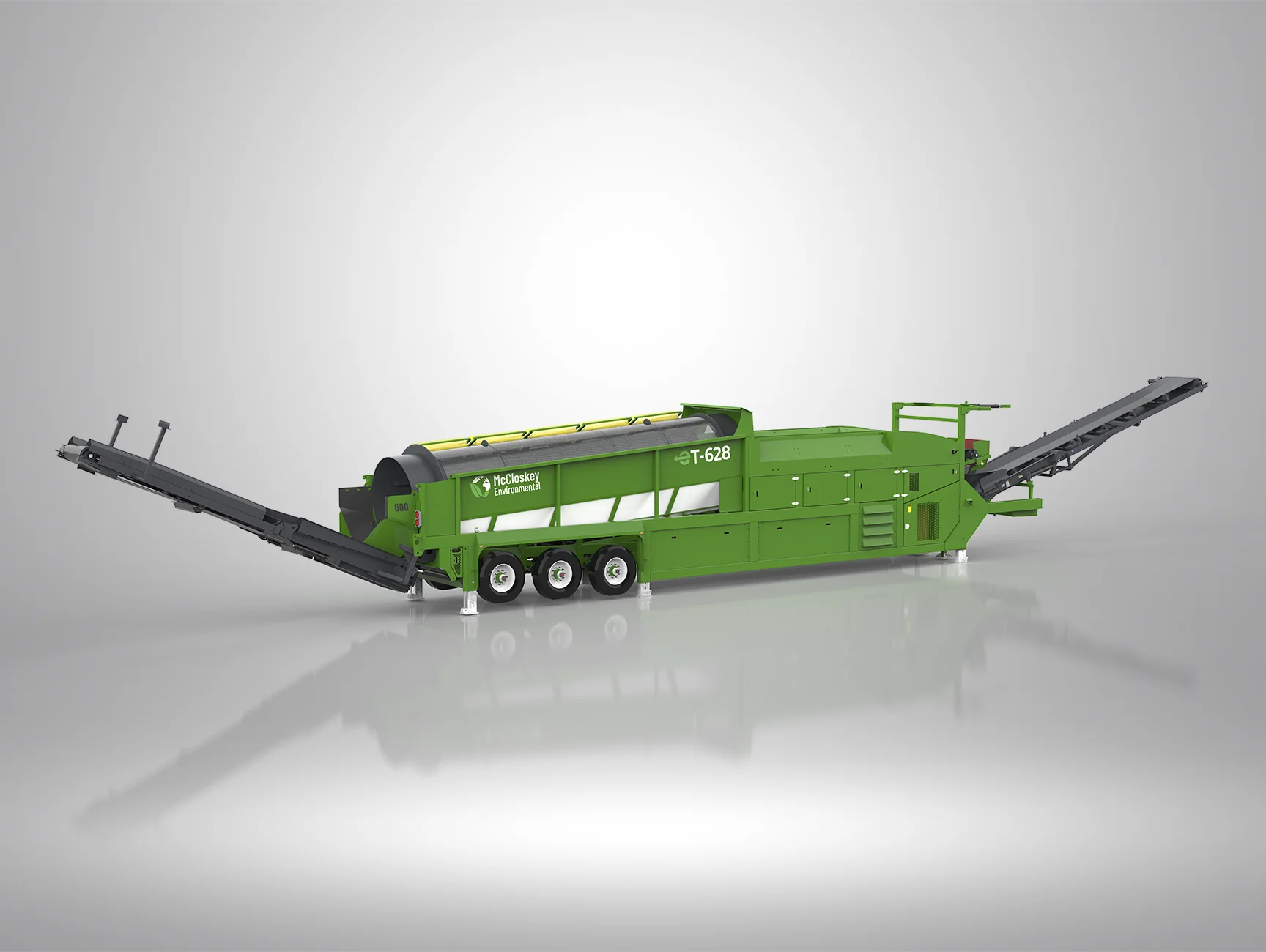

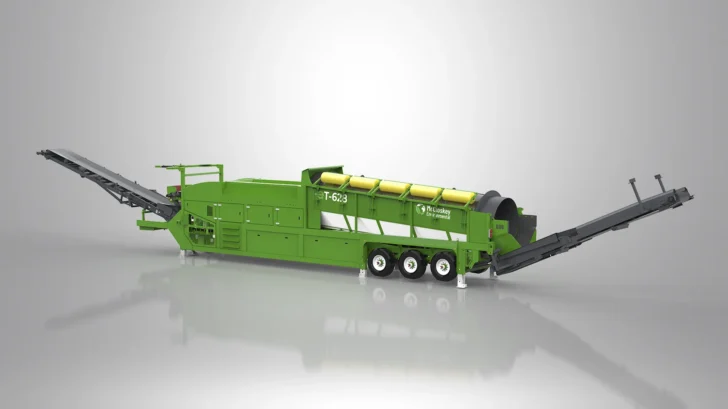

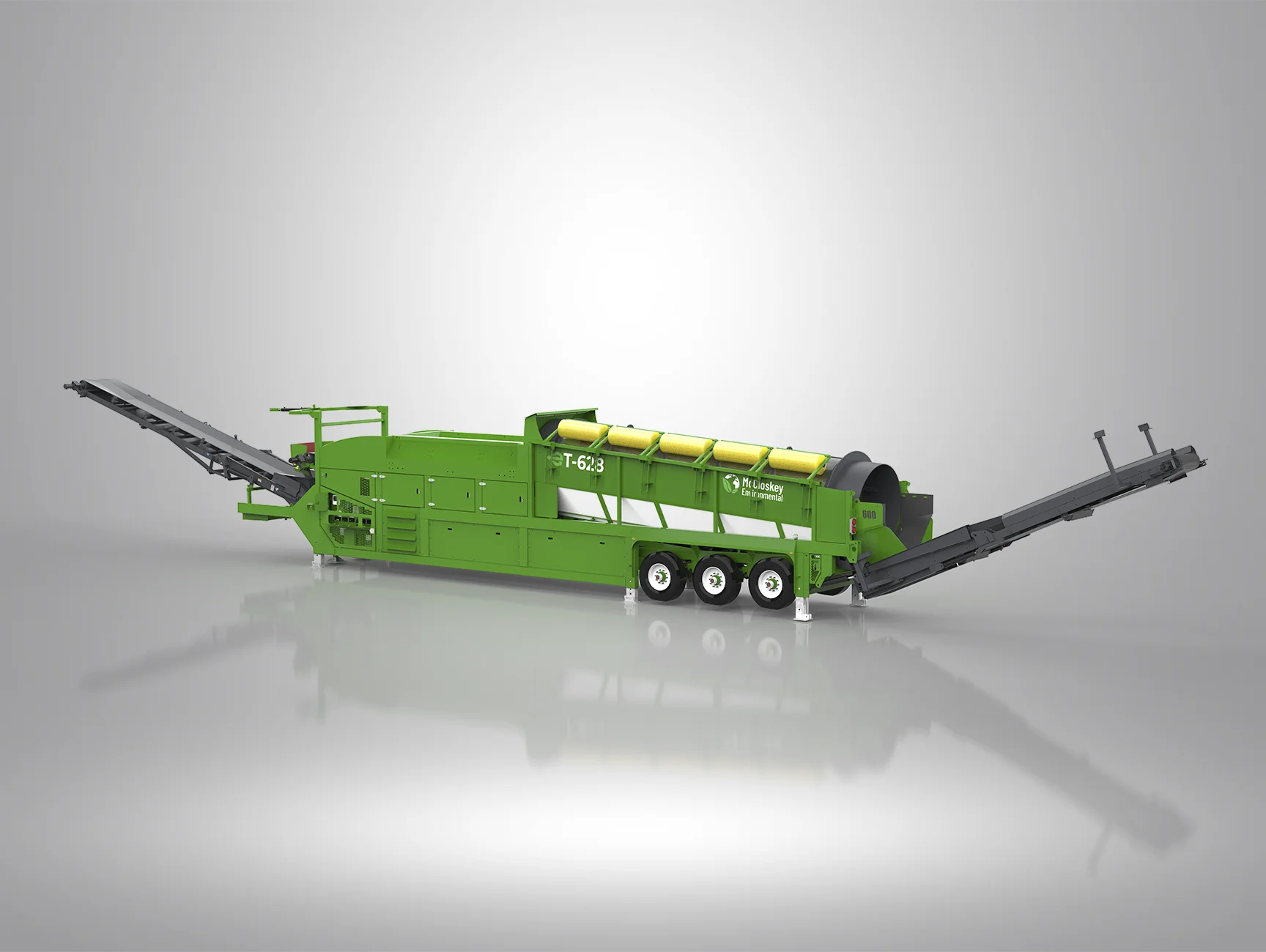

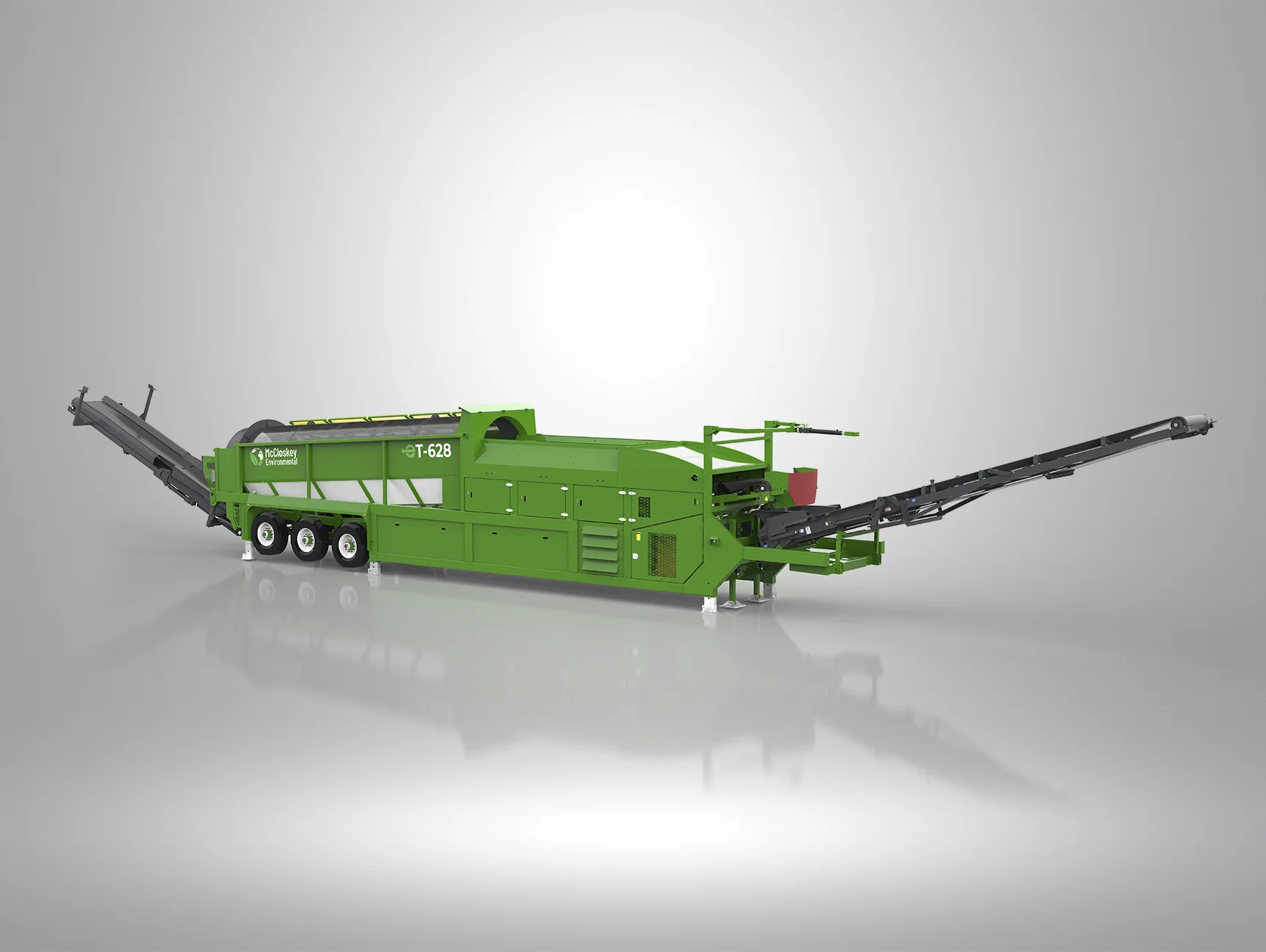

McCloskey Environmental ET-628RE Trommel with 6′ drum, extended conveyors, and wheeled mobile chassis.

Key features

  • 6′ × 28′ heavy-duty trommel drum
  • Wheeled mobility
  • Integrated hydraulic folding stockpiling conveyors
  • Fast on-site setup time of approximately 10 minutes
  • Remote control radial conveyor
  • Custom drum and feeder options available

Technical specifications

Engine

130 kW / 174 hp

Drum

6′ × 28′

Hopper capacity

6.5 yd³


Transport

Length

65′ 3″

Width

8′ 9.5″

Height

13′ 6″

Weight

59,750 lb
