ET-733

The McCloskey Environmental ET-733RE Trommel is built for operations that need maximum screening capacity, long drum retention time, and extensive stockpiling performance.
At the top end of the McCloskey Environmental trommel range, the ET-733RE uses a 7′ × 33′ heavy-duty drum to give material more time on the screening surface. This makes it a strong fit for construction and demolition material, topsoil, compost, waste recycling, and other large screening applications. With wheeled mobility, a 160° radial fines conveyor, an oversize end conveyor, hydraulic folding stockpiling conveyors, and custom drum and feeder options, the ET-733RE is made for high-production sites that need efficient material separation and strong stockpile capacity.

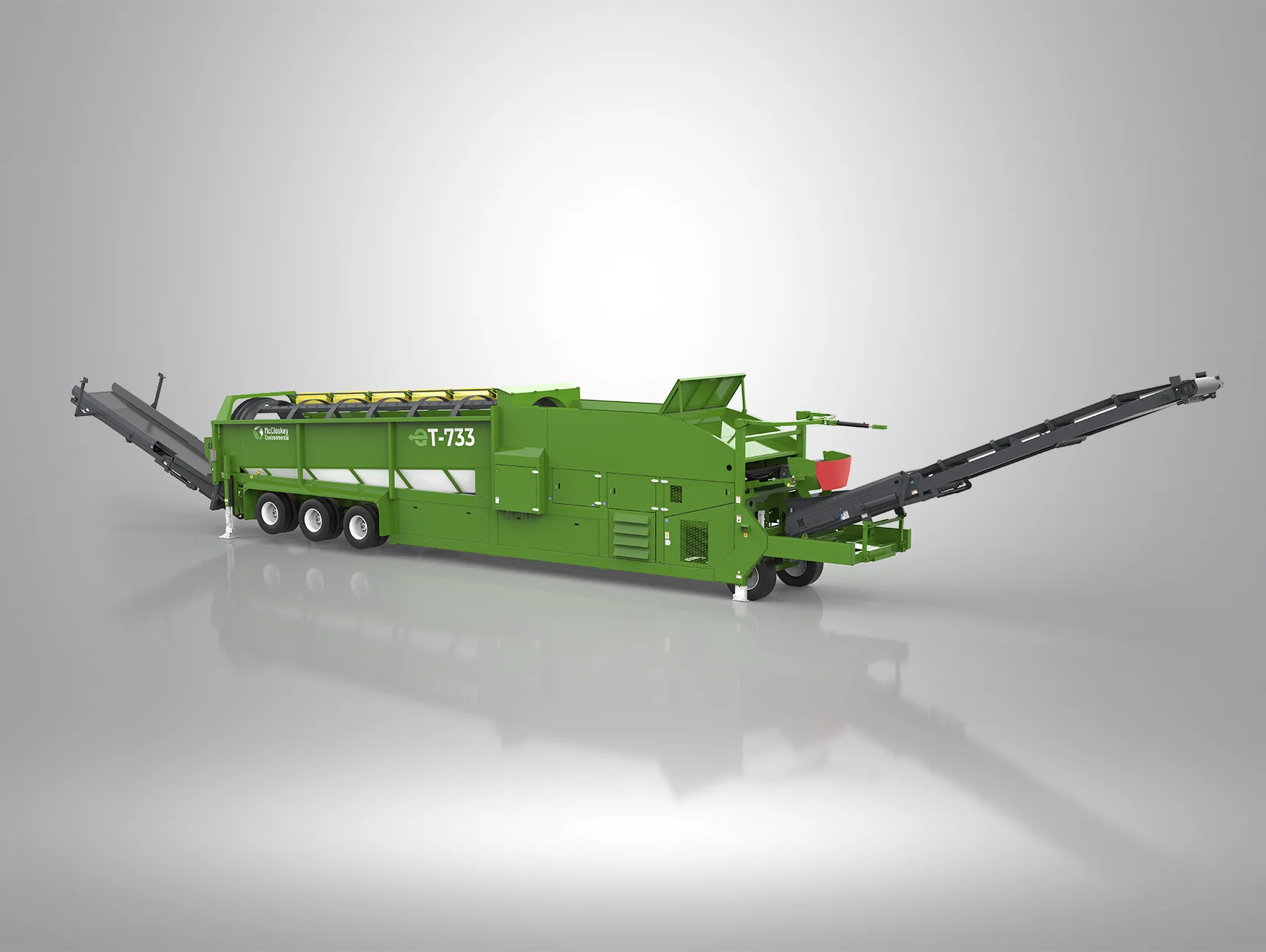

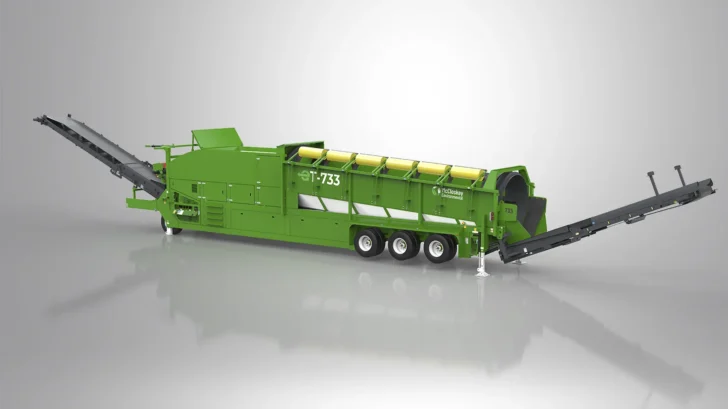

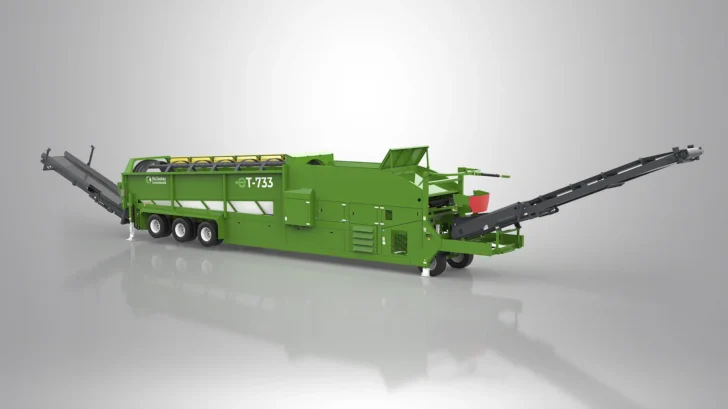

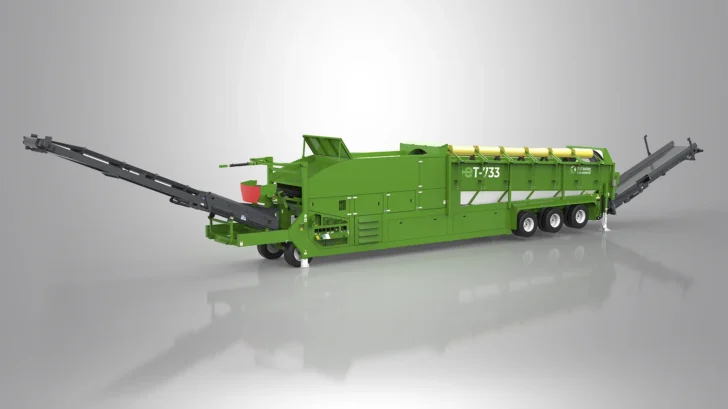

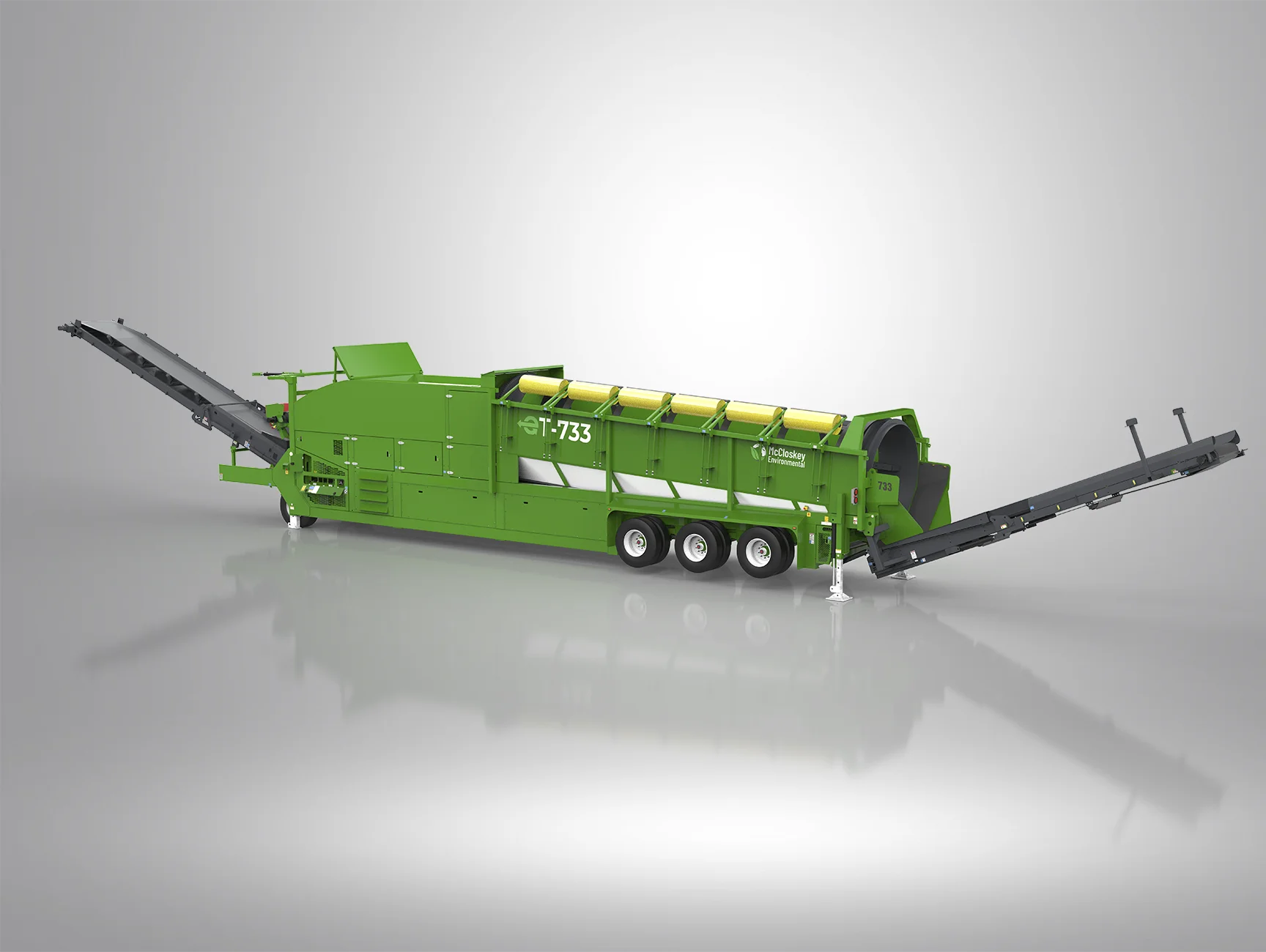

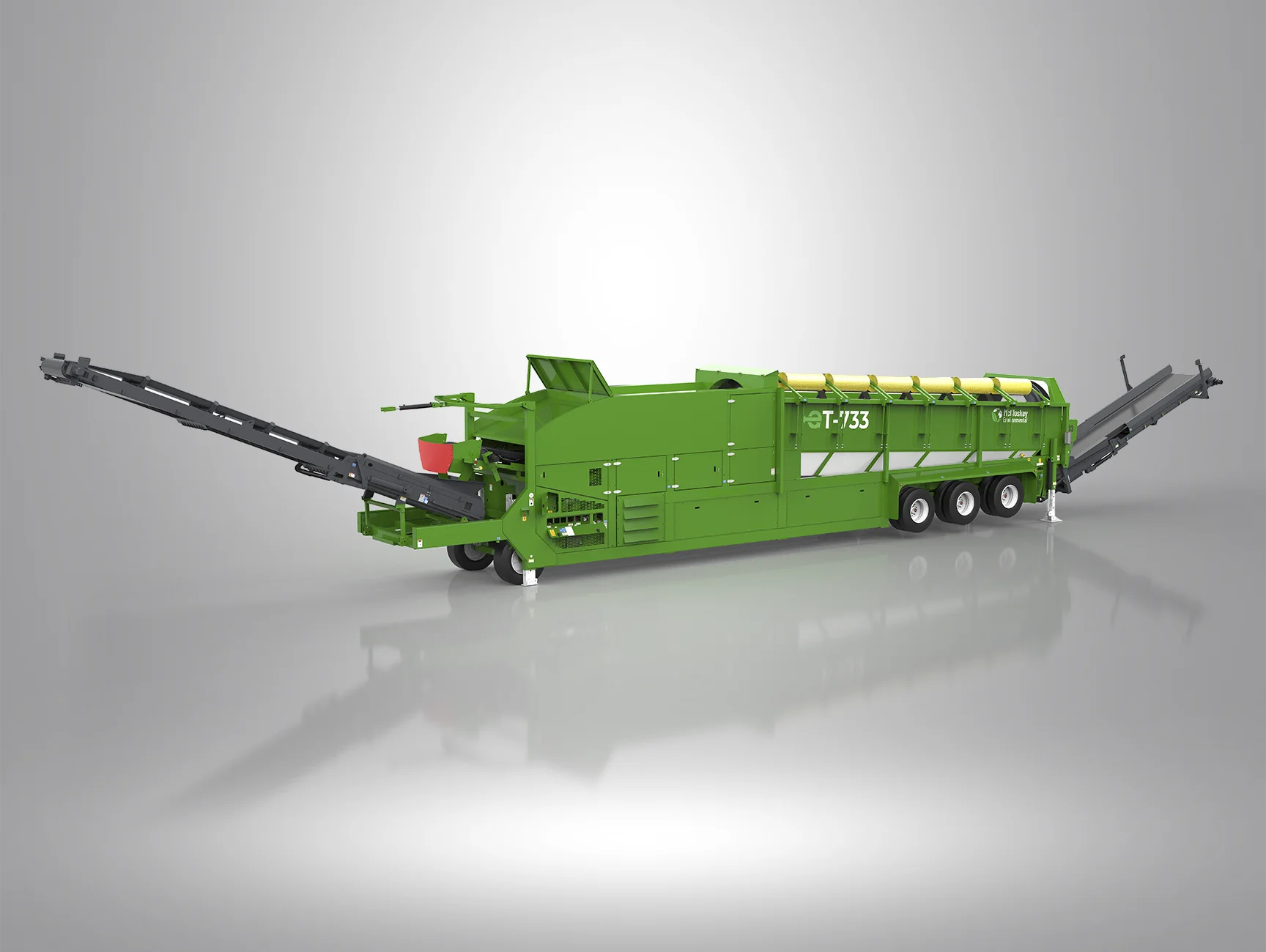

McCloskey Environmental ET-733RE Trommel with extended conveyors, wheeled chassis, and 7′ × 33′ screening drum.

Key features

  • 7′ × 33′ heavy-duty trommel drum
  • Wheeled mobility with 60″ spread tri-axle
  • Integrated hydraulic folding stockpiling conveyors
  • 130 kW / 174 hp engine
  • Fast on-site setup time of approximately 10 minutes
  • Remote control radial conveyor
  • 160° radial fines conveyor
  • Oversize end conveyor for stockpiling flexibility
  • Ground-level adjustable brushes keep the screen clean
  • Custom drum and feeder options available

Technical specifications

Engine

130 kW / 174 hp

Drum

7′ × 33′

Hopper capacity

9 yd³

Radial conveyor stockpile height

16′ 8″

Mobility

Wheeled unit with 60″ spread tri-axle


Transport

Length

69′ 6″

Width

10′ 10″

Height

13′ 6″

Weight

80,750
