McCloskey RF80 Feeder Stacker

Name: McCloskey RF80 Feeder Stacker
Brand: McCloskey International
SKU: RF80

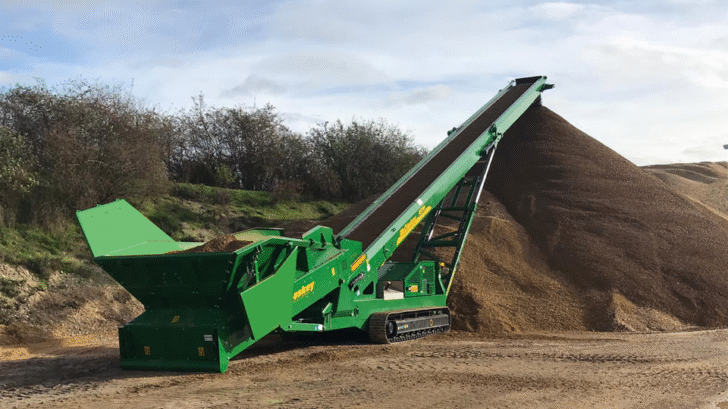

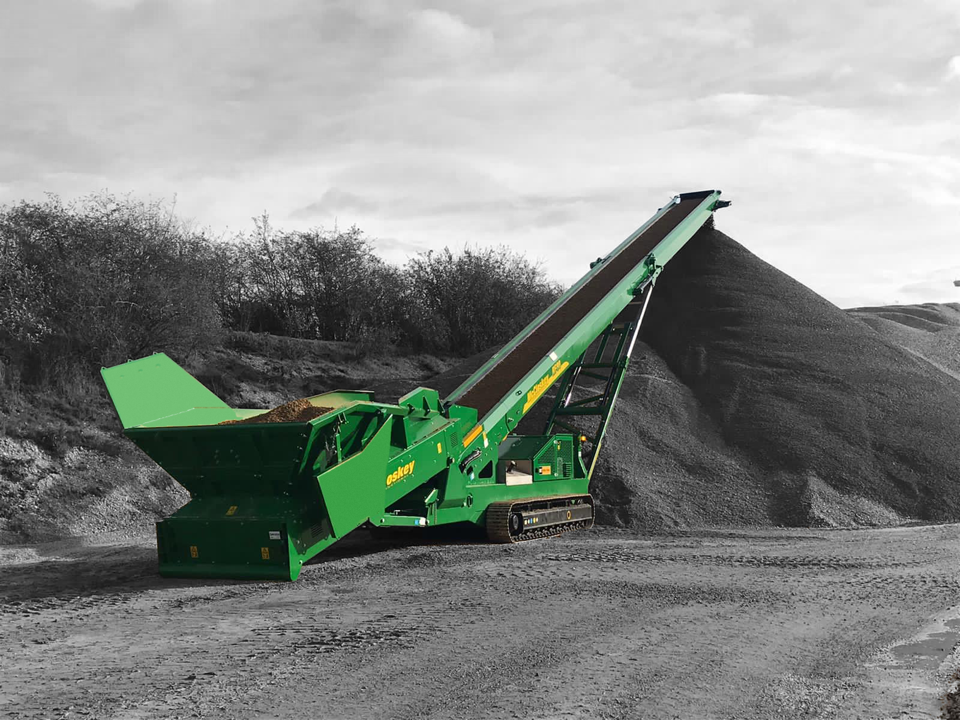

The newly designed RF80 is McCloskey International’s latest offering as a feeder stacker. It comprises of a large feeder hopper that transfers material onto an 80ft conveyor and provides a rear, low level feed option to operators. Designed to allow operators to stockpile/transfer material it eliminates double handling of materials. The unit can also be compacted for transport on one low loader for easy site to site transport.

Get a quote on the RF80 (877) 217-4474

Make

McCloskey International

Type

Feeders Stackers

Product Brochure CEC Brochure

Key features

100kW (127Hp) CAT engine
Dual hydraulic main drive system
Hydraulically adjustable discharge height up to 10m
4m tracks for superior maneuverability and stability.
Fuel efficient Hydraulics system.
User Friendly Hydraulic Controls
Hydraulic folding heading section for transport minimizing setup time.

Where an RF80 saves you a loader

The RF80 is a hopper and a stacker in one. You fill the 13 yd³ hopper from the rear at low level, and the 80 foot conveyor stockpiles or transfers up to 880 TPH. Material gets handled once, not twice.

A 127 hp CAT engine runs a dual hydraulic main drive, and the discharge height adjusts hydraulically for a 31 foot 6 inch stockpile. The head section folds, and the whole unit goes on one low loader at 54,000 lb. Compare the McCloskey ST80, or browse our stackers. We service McCloskey machines from Maine down to Georgia.

Tell us what you load it with, your tons an hour and where the material goes next: Get a quote on the RF80
