SF80

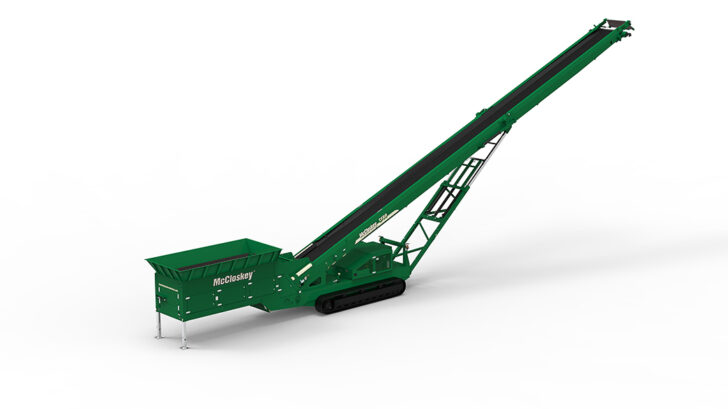

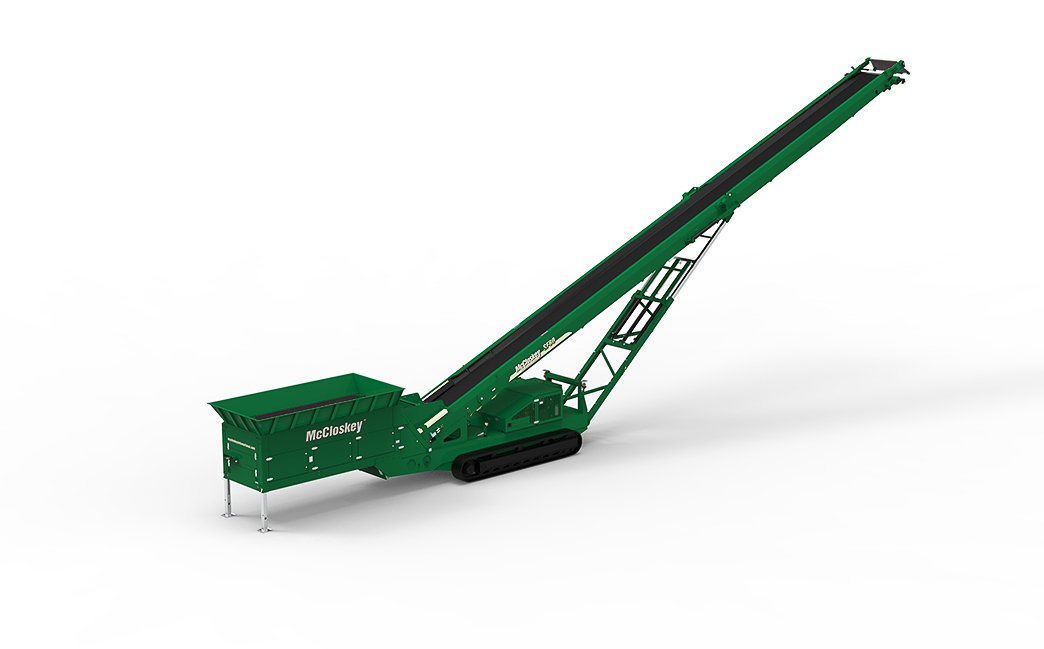

The SF80 Feeder Stacker is designed to allow operators to stockpile/transfer material while eliminating double handling of materials. It comprises of a large feeder hopper that transfers material onto an 80ft conveyor.

Also available in a Dual Power model, the SF80 and SF80R boost your operational fuel efficiency, reducing costs, and along with full electric models are perfect where environmental, legislative, or noise constraints are a consideration.

Key features

  • Available in Dual Power
  • 48″ x 80′ Main Conveyor Belt
  • 13m³ Hopper Capacity of standard aggregates with hopper extensions option to increase capacity
  • Straight forward hydraulic controls to fold and unfold, raise and lower conveyor for easy transport
  • Easy to use control panel makes operating the machine simple
  • 100KW (127HP) engine

Technical specifications

Engine

100 kW (127 Hp)

Stockpile Height

9.6m (31′ 5″)

Stockpile Capacity

25.4m (83′ 6″)

Hopper

13m³ (17 yd³)

Max. Production Rate

880 TPH (800 metric TPH)


transport

Length

19.4m (38′ 8″)

Width

3.2 (10′ 6″)

Height

3.4m (11′ 1″)

Weight

24,500 Kg (54,013 lbs)
