Aggredry Dewatering Washer

The Superior Aggredry Dewatering Washer combines sand washing, fines recovery, and dewatering in one system to help producers create a cleaner, drier, saleable sand product.

Wet sand normally needs space and time to drain before it can be handled efficiently. The Aggredry changes that process by pairing a fine material screw with an integrated dewatering screen. The screw washes and classifies the material, while the screen removes excess moisture before discharge. Its patented fines recovery jet also returns valuable fine material back into the screw, helping reduce waste and improve product recovery. Superior lists finished material moisture as low as 8%, depending on application and operating conditions.

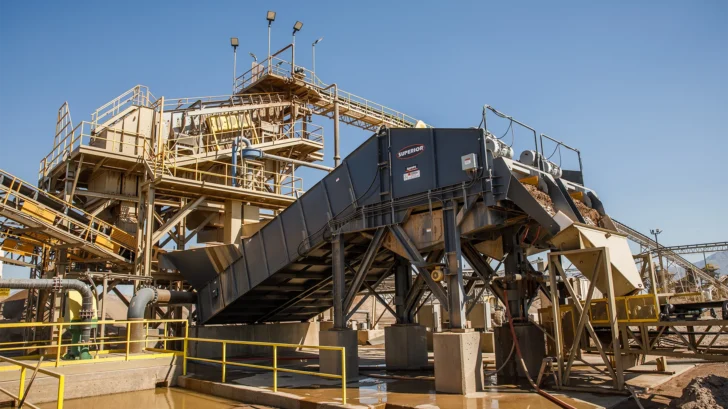

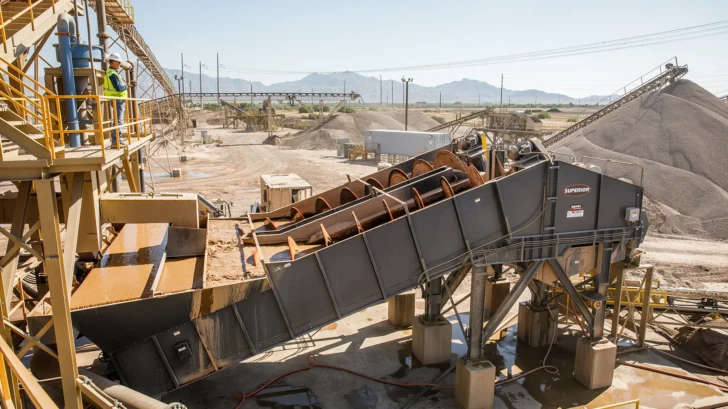

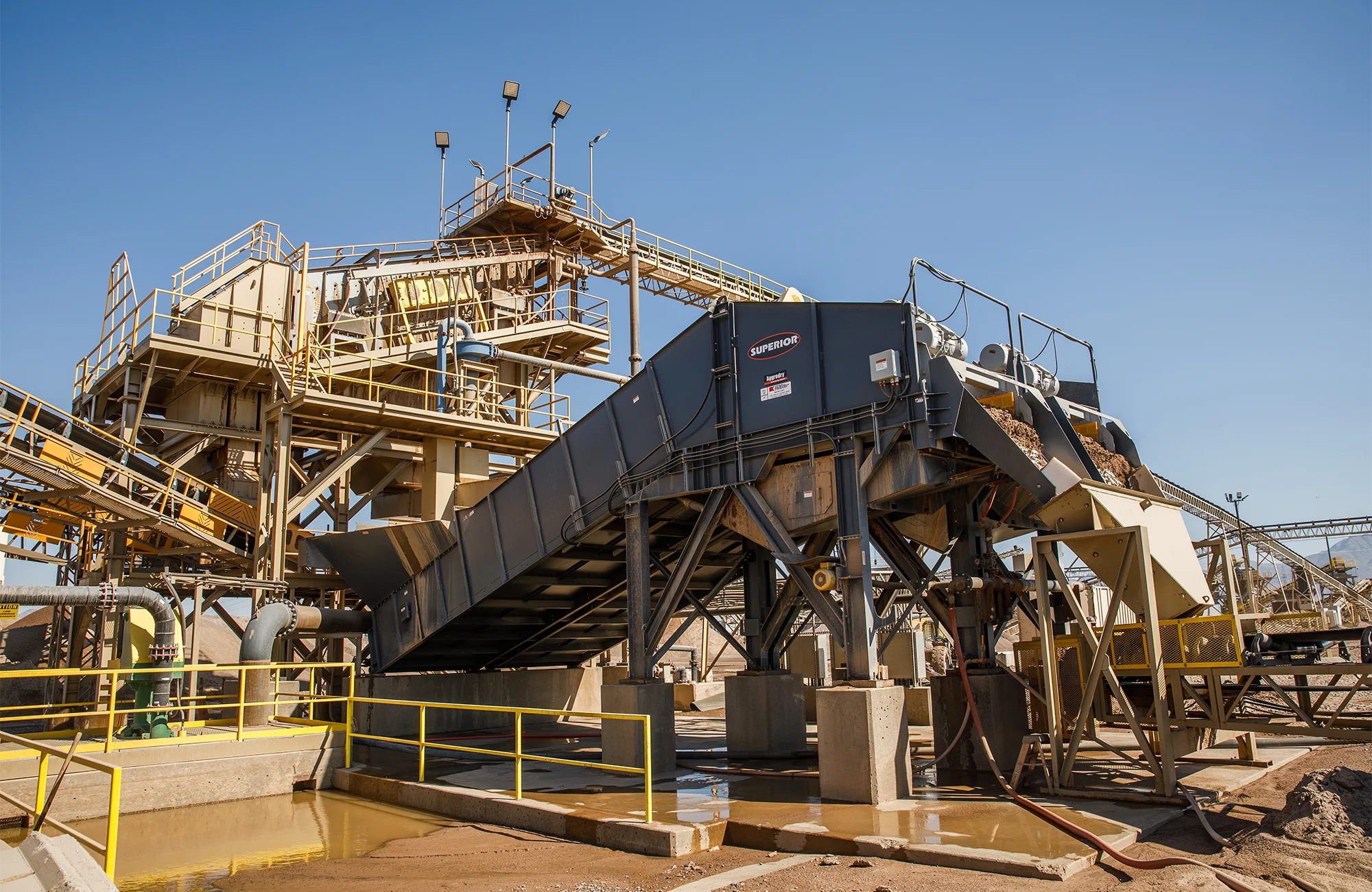

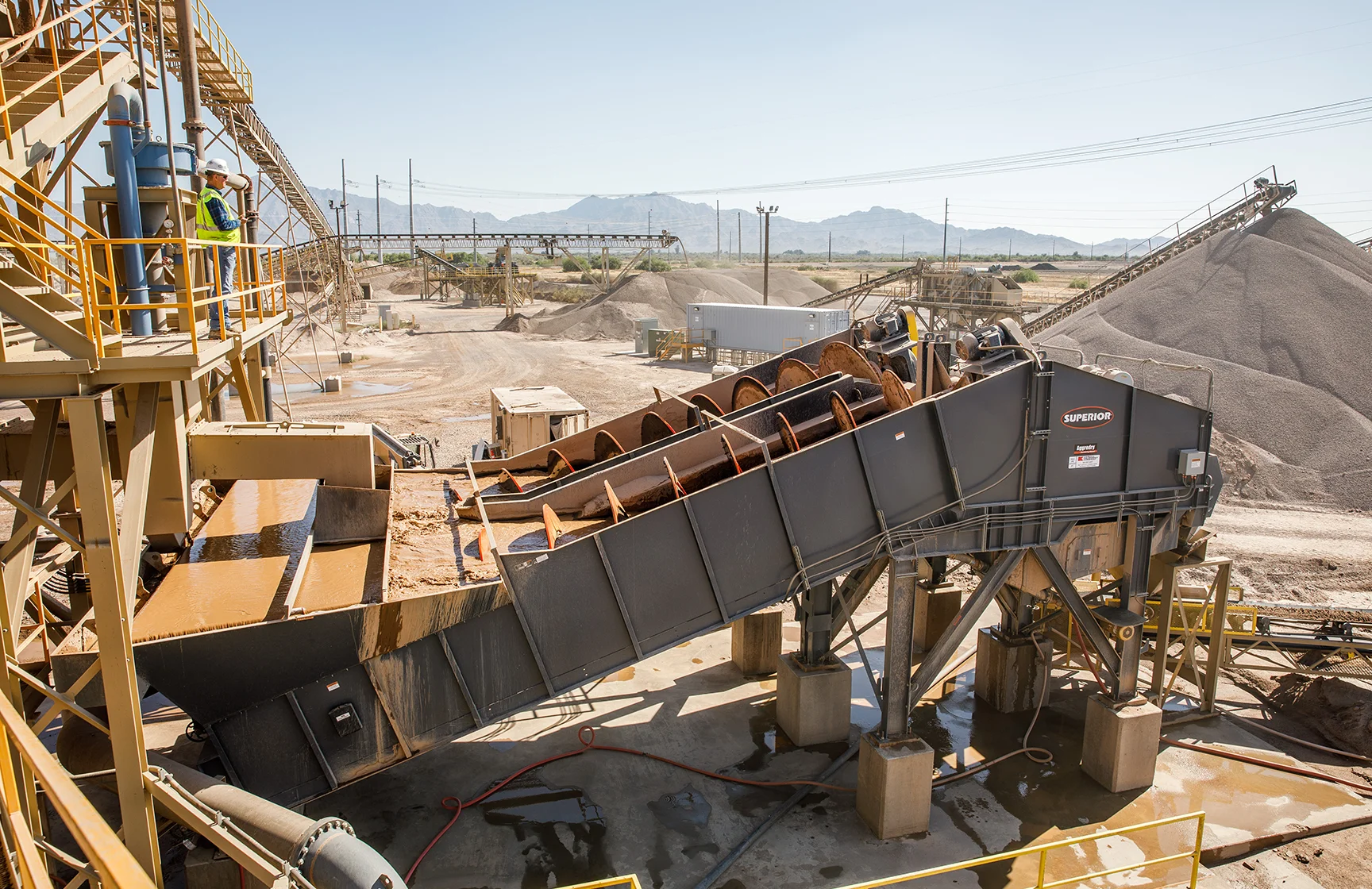

Superior Aggredry Dewatering Washer processing wet sand in a wash plant

Key features

  • Combines fine material washing and dewatering in one machine
  • Typically dewaters material to as low as 8% moisture
  • Removes unwanted lightweight silts from fine material applications
  • Fine material screw accepts feed up to 3/4″

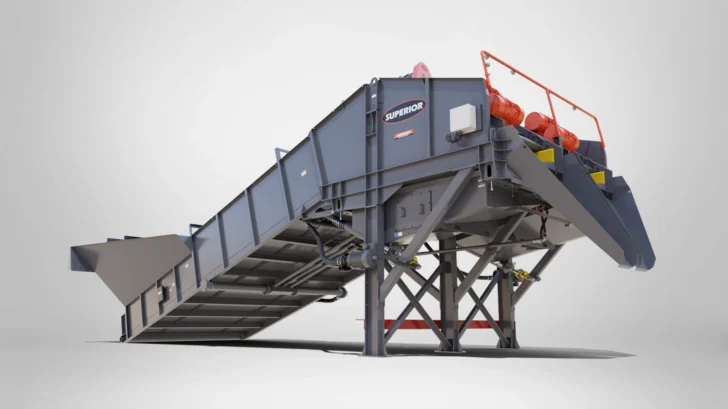

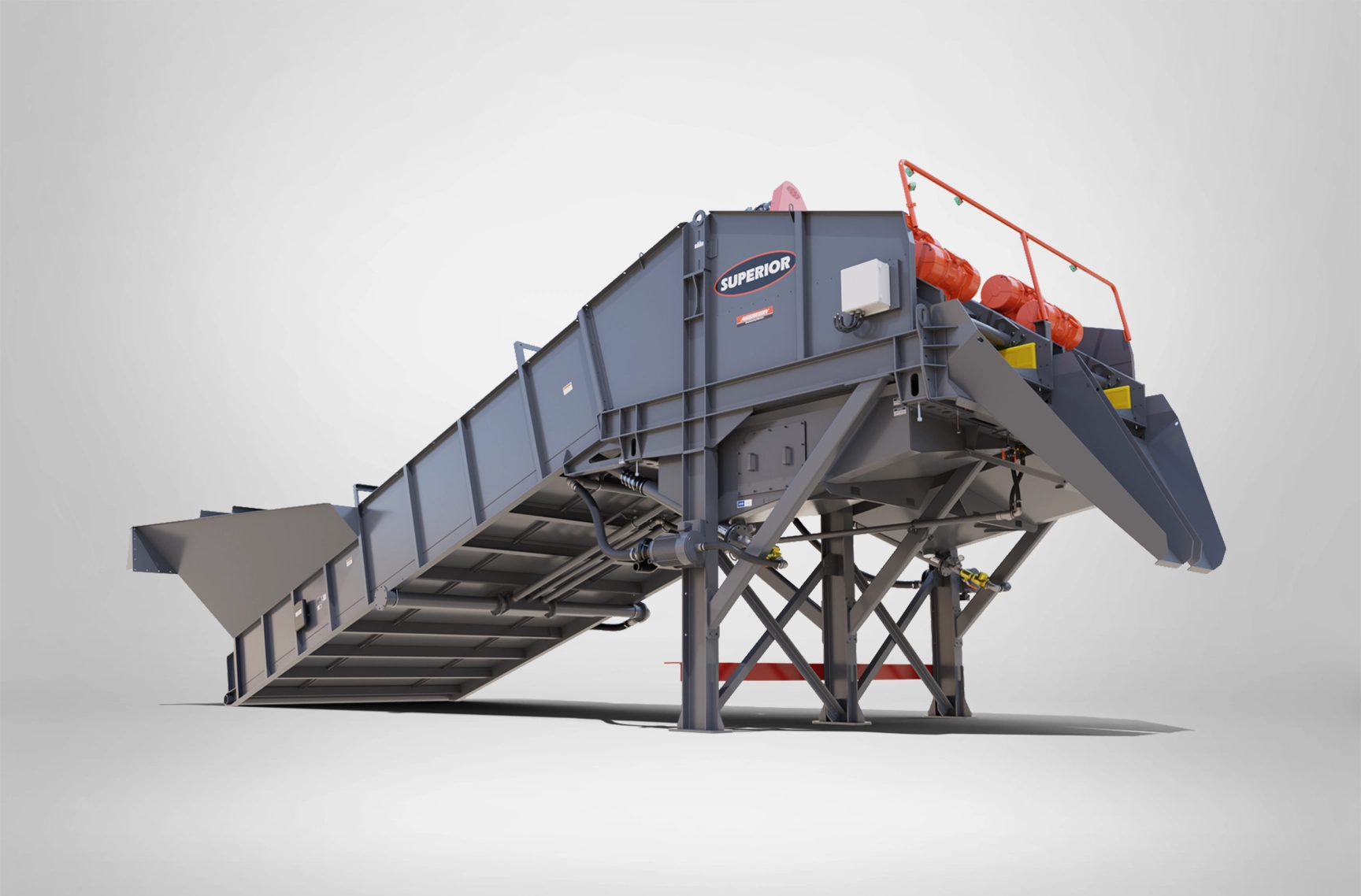

  • Integrated dewatering screen helps produce a drier finished product
  • Patented fines recovery jet recovers up to 3% of saleable material
  • Adjustable weir plates help maximize fines retention
  • Load zone baffle calms water to help retain fines
  • Curved belly pan helps reduce material dead spots inside the tub
  • Dewatering screen cartridge-style replacement simplifies spring maintenance
  • Adjustable discharge dam improves dewatering performance
  • Screen sidewalls encourage water drainage from the top and sides of the material
  • Safeguard outboard bearing improves protection and maintenance access
  • Stub shaft removal door simplifies shaft maintenance from the back of the tub

Technical specifications

Single screw

Screw diameter

24″ to 60″

Capacity

50 to 300 STPH

Screw speed

13 to 32 rpm

Maximum material size

3/8″

Motor

7.5 to 40 hp

Screen motor

Two 7.2 to 9.2 hp motors

Water capacity — 100 mesh

700 to 2,600 GPM

Water capacity — 150 mesh

330 to 1,300 GPM

Water capacity — 200 mesh

180 to 700 GPM

Technical specifications

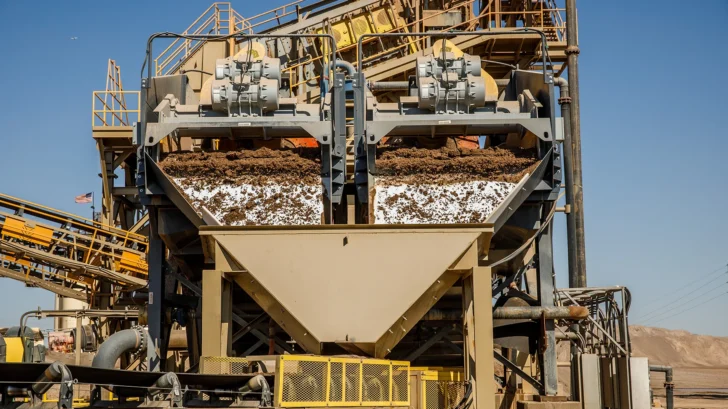

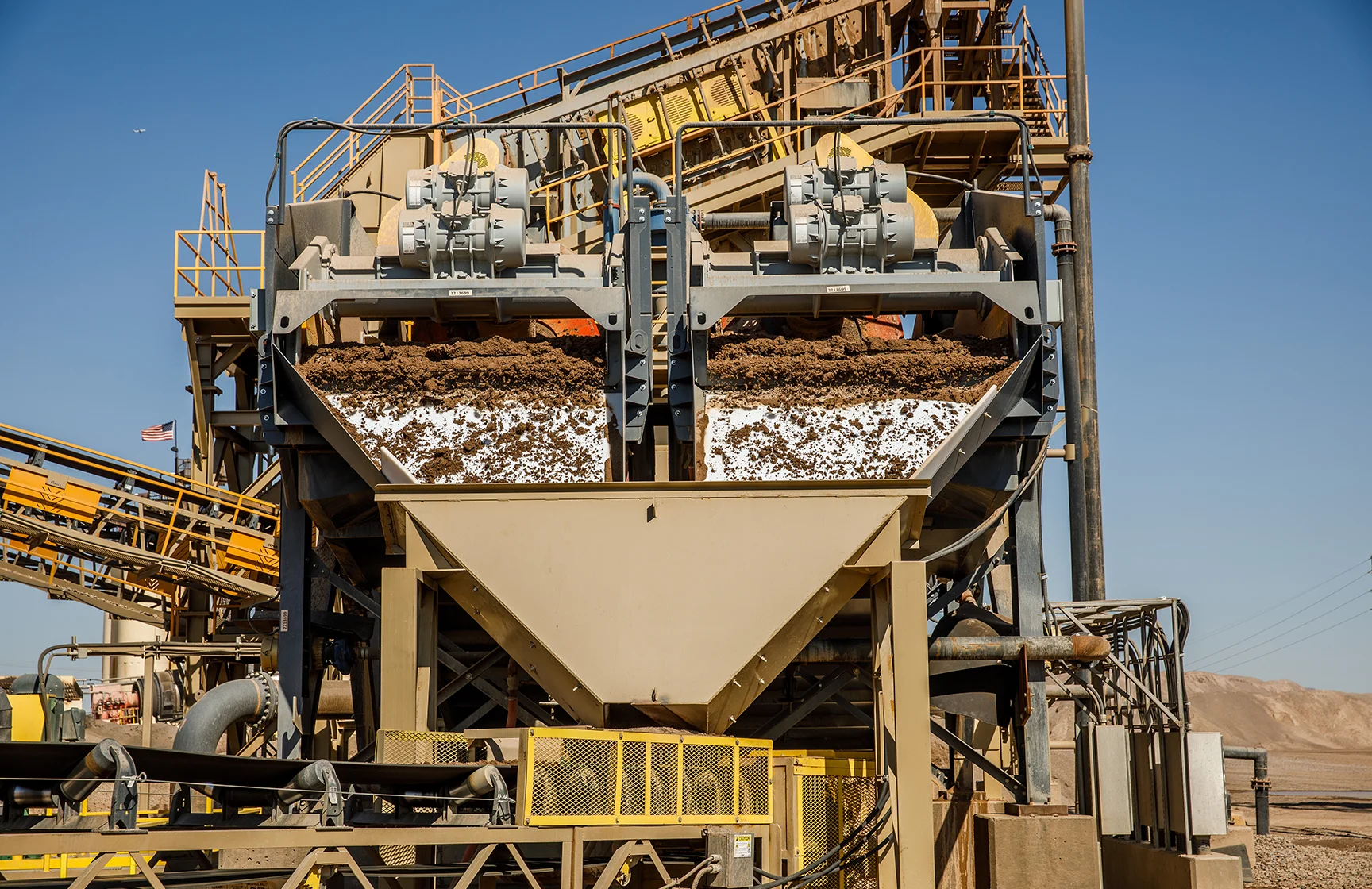

Twin screw

Screw diameter

Twin 48″ to Twin 66″

Capacity

400 to 800 STPH

Screw speed

12 to 16 rpm

Maximum material size

3/8″

Motor

Two 25 to 50 hp

Screen motor

Two 25 to 50 hp

Water capacity — 100 mesh

3700 to 4,800 GPM

Water capacity — 150 mesh

2000 to 2,400 GPM

Water capacity — 200 mesh

1,300 to 1,800 GPM
