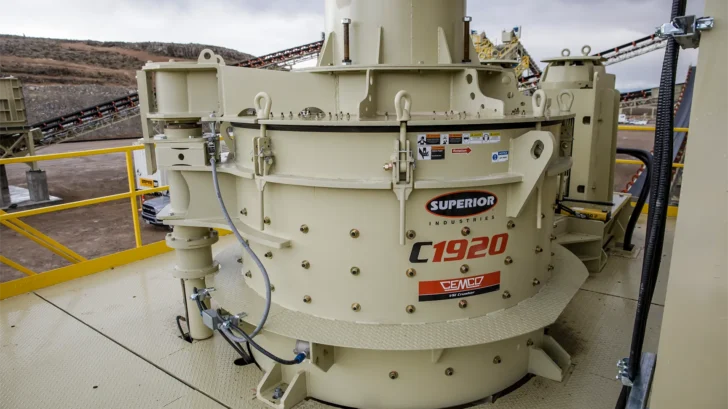

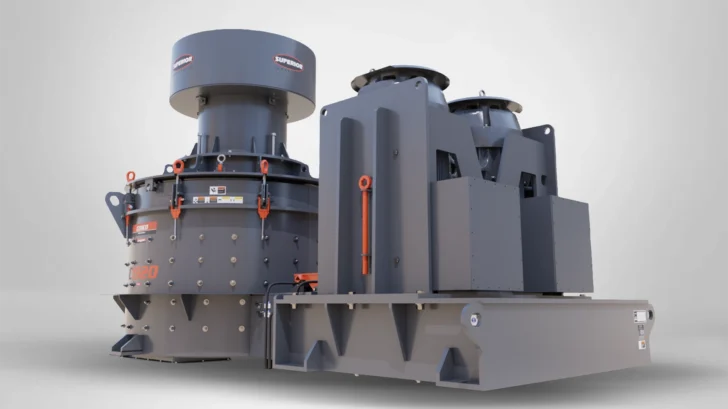

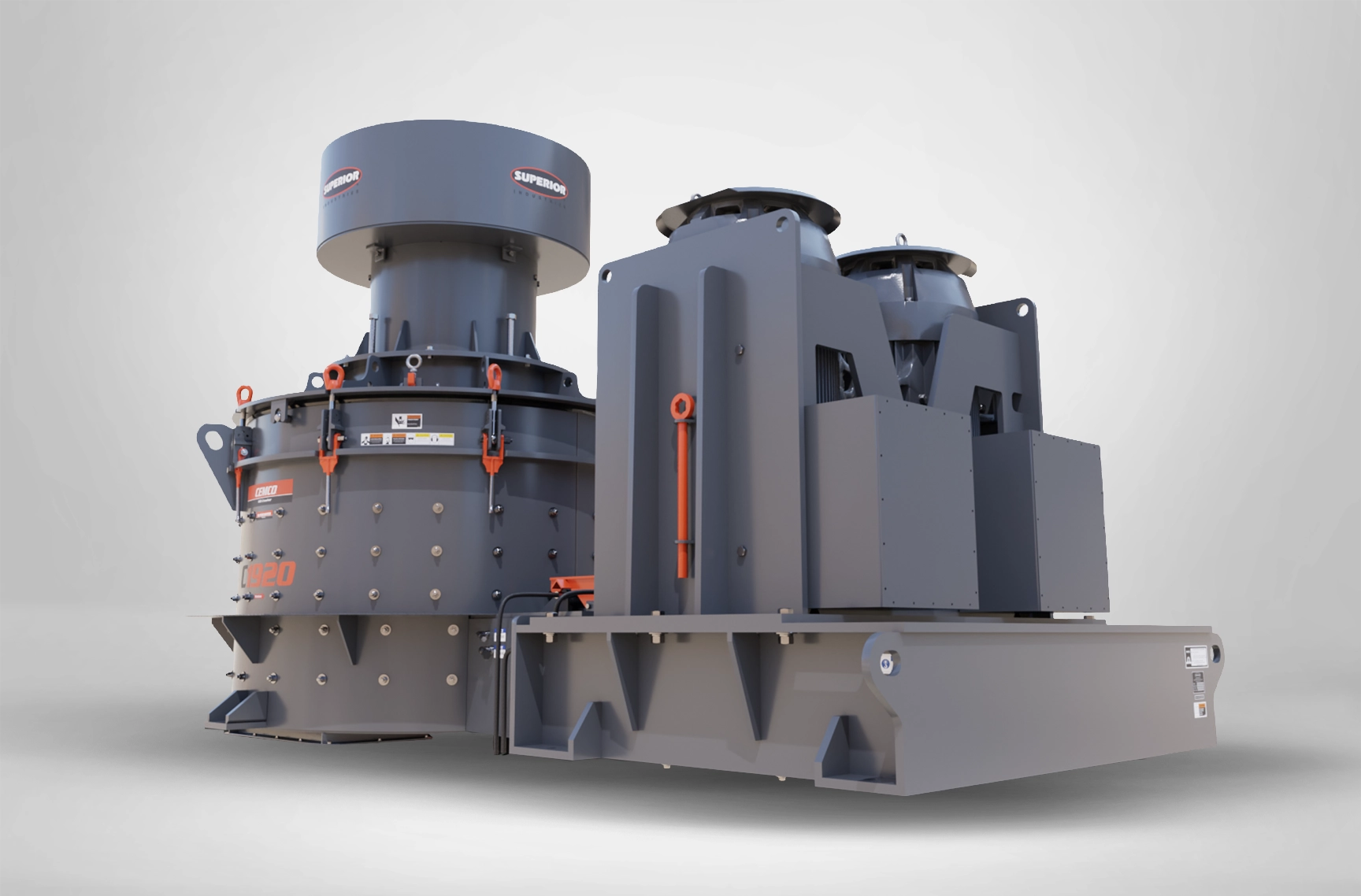

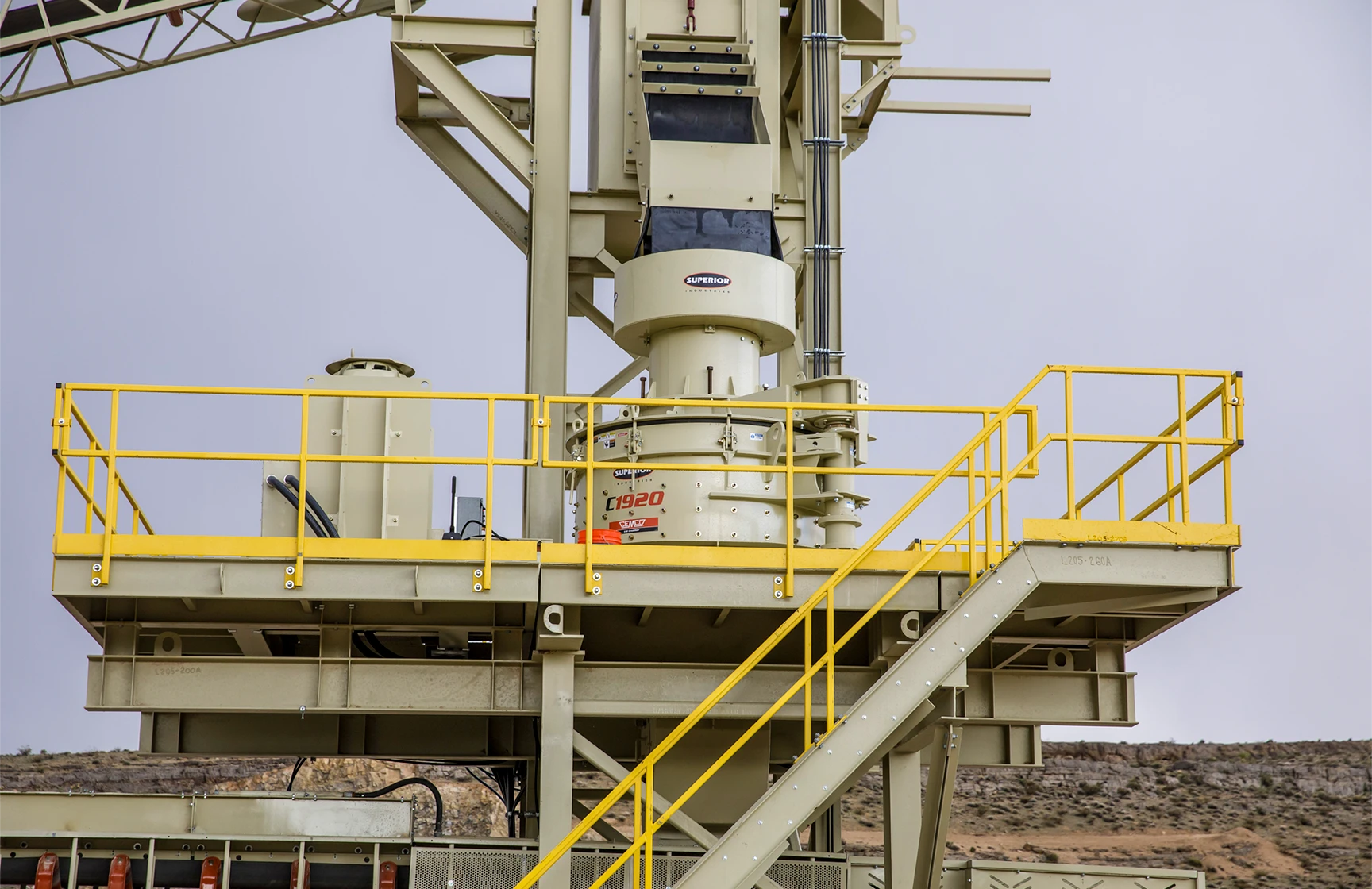

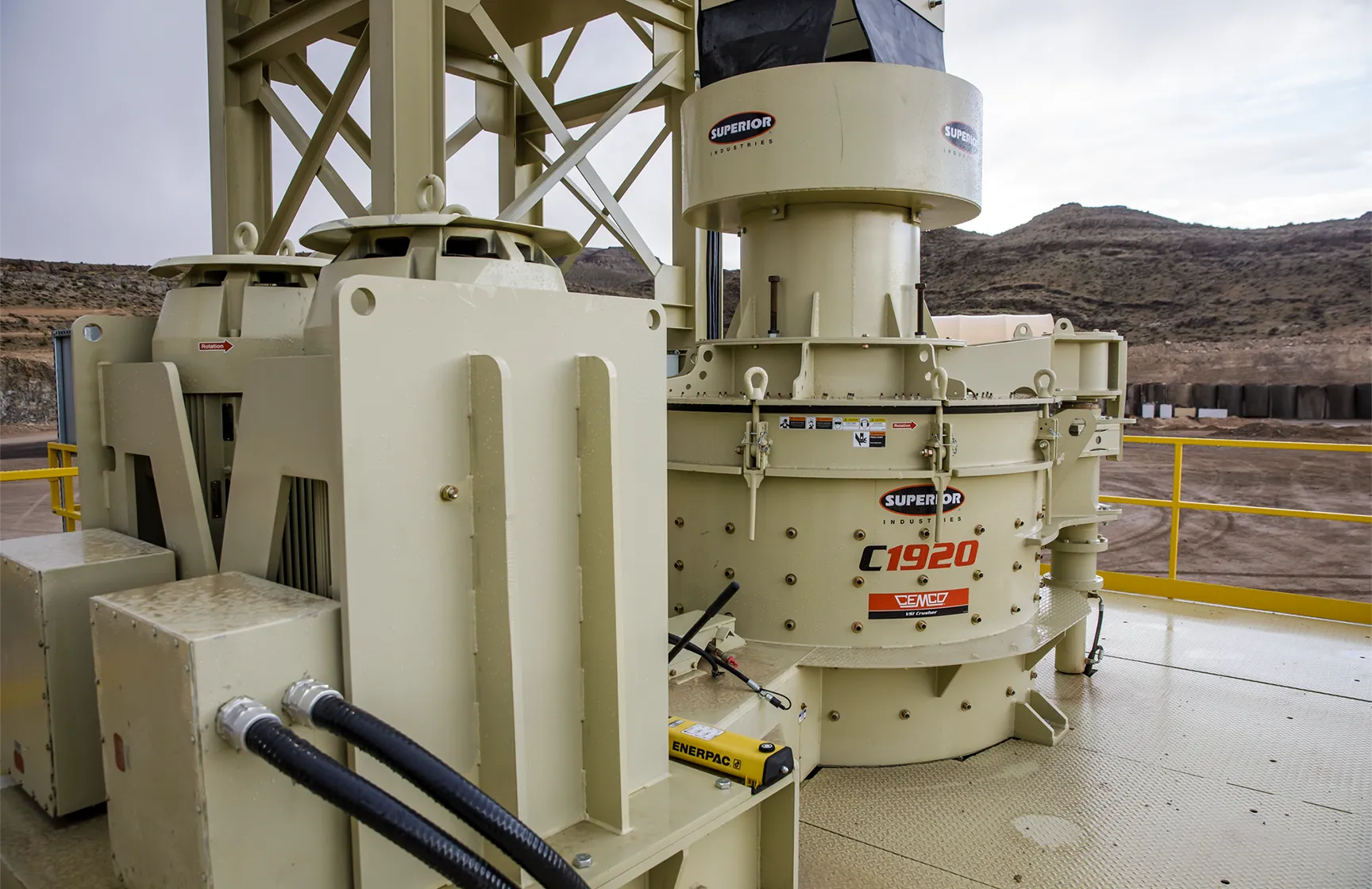

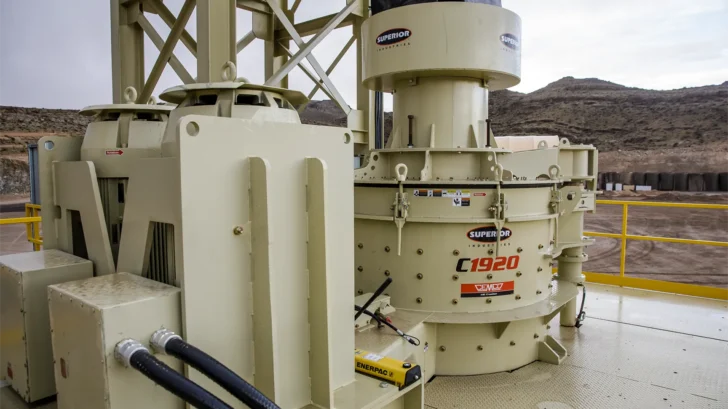

Cemco VSI Crusher

The Superior Cemco VSI Crusher is made for operations that need precise shaping, tight gradation control, and spec-ready material in sand, chip, and fine aggregate applications.

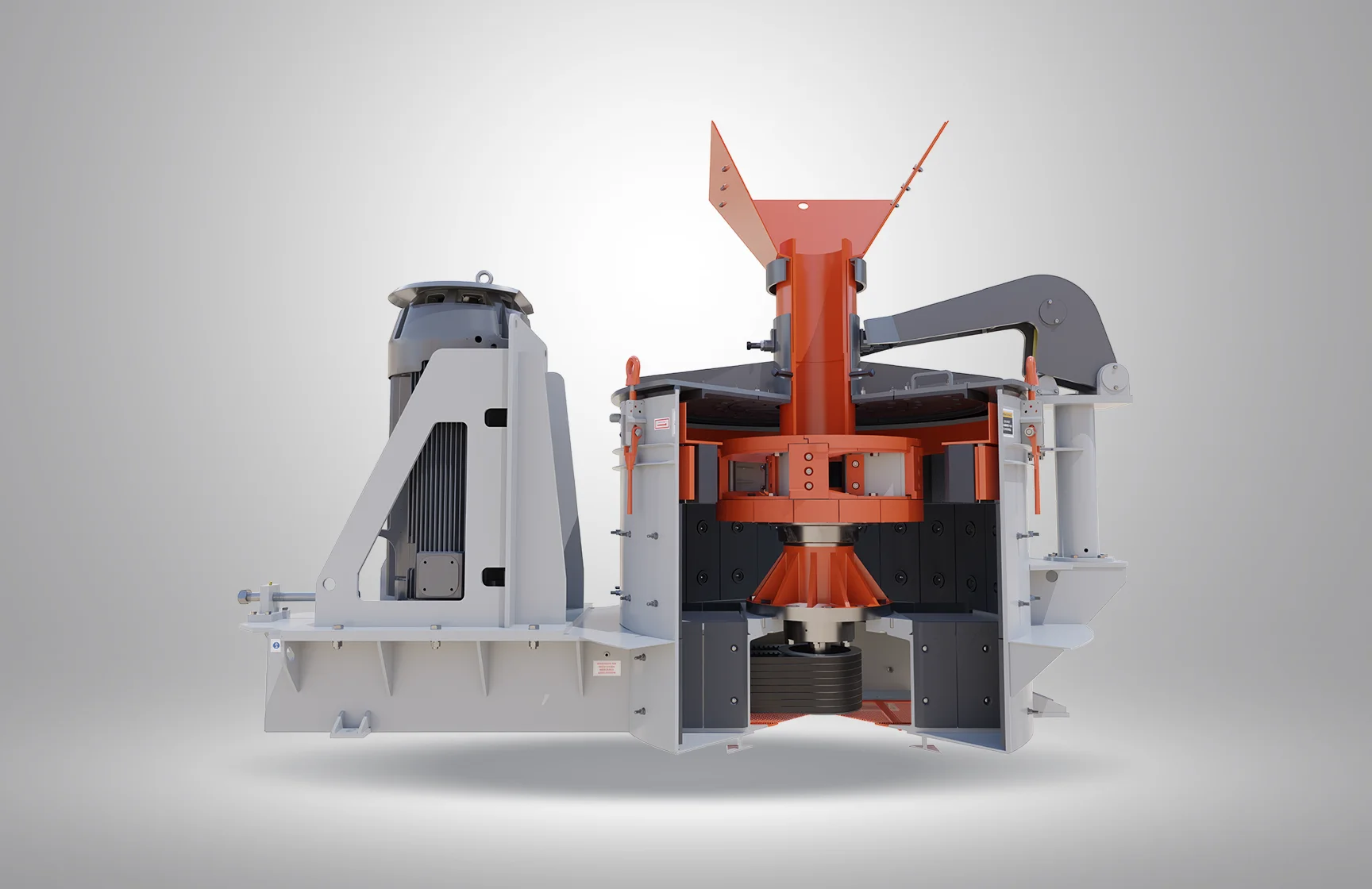

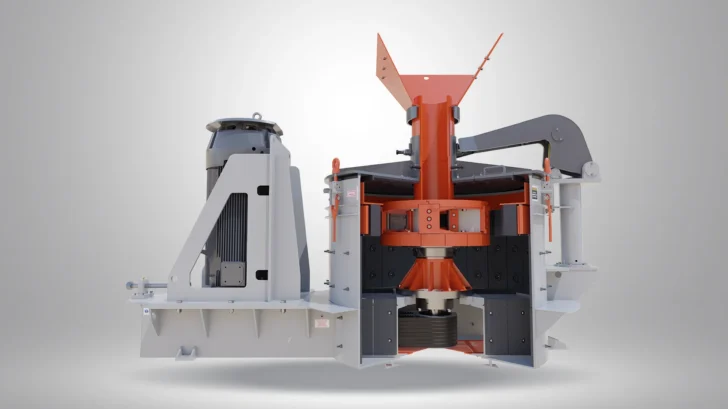

With flexible rotor and chamber options, multi-port rotor configurations, a rotating anvil ring, and vibration protection, the Cemco VSI helps operations adapt to different feed types and product requirements. Its high-speed vertical shaft impact crushing performance makes it a strong fit for producing consistent, sellable material when specs matter.

Key features

  • VSI design produces cubical material and tight gradation for spec-driven applications
  • Interchangeable crushing chambers
  • Hydraulic lid lifter for fast maintenance access
  • Adjustable feed tube improves throughput control
  • Rotating anvil ring helps extend wear life
  • Multi-port rotor options for different specs
  • Vibration protection system shuts down during imbalance events

Technical specifications

Models

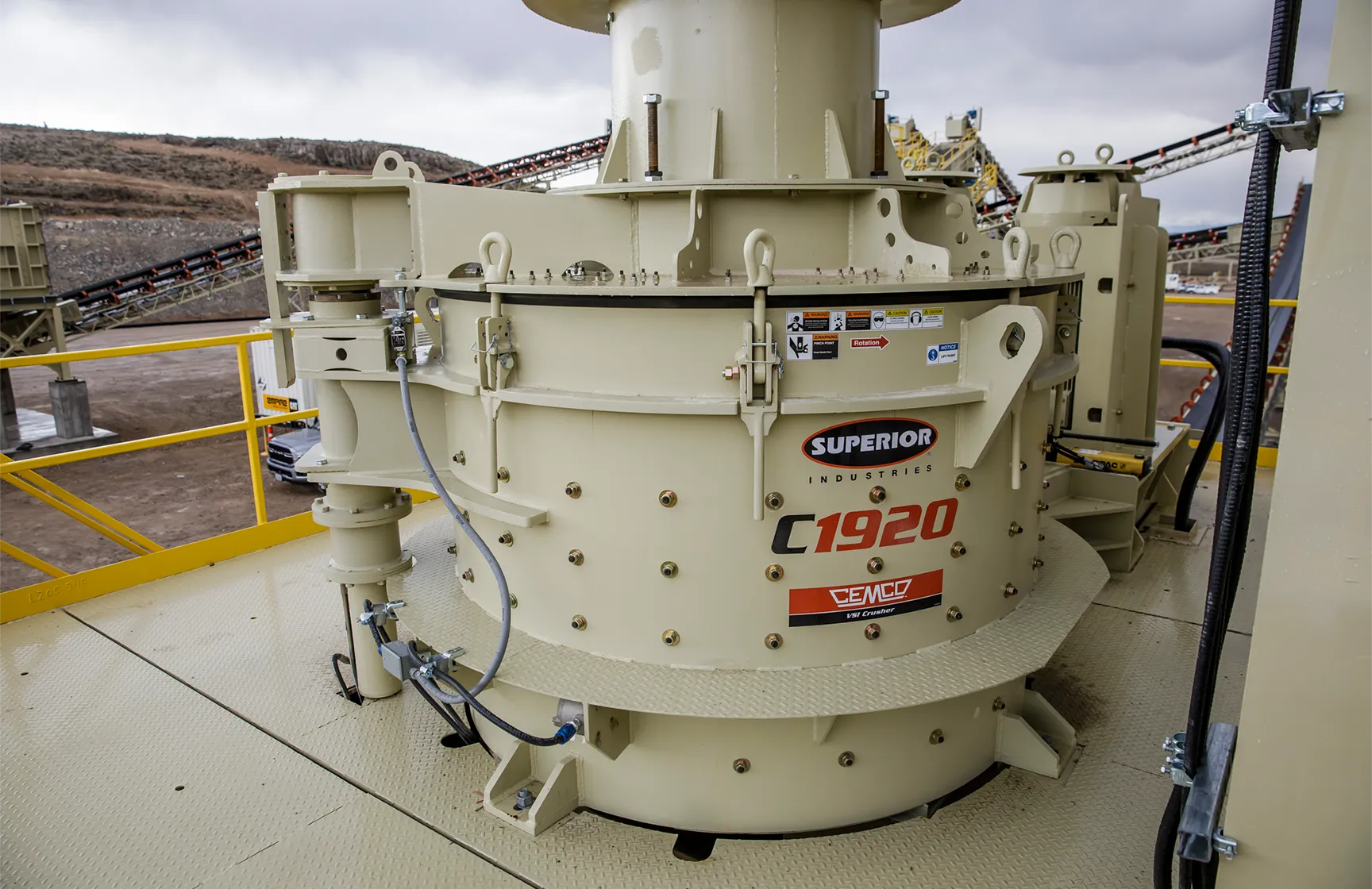

T35, T54, T70, T80 single, T80 dual and C1920

Power

75 to 800 hp (55 to 600 kW) Single or dual drive

Production

10 to 450 TPH

Max feed size

1″ to 4″, depending on rotor / configuration

Rotor / table operation range

1,200 to 2,600 rpm

Rotor options

Shoe table or Superchipper

Weight

5,500 to 35,000 lb

Technical specifications
