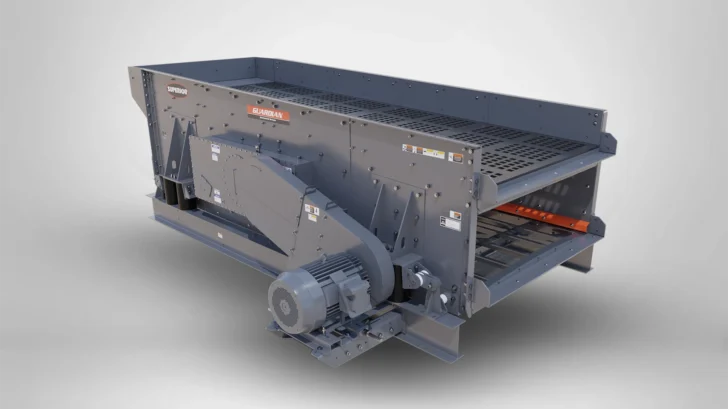

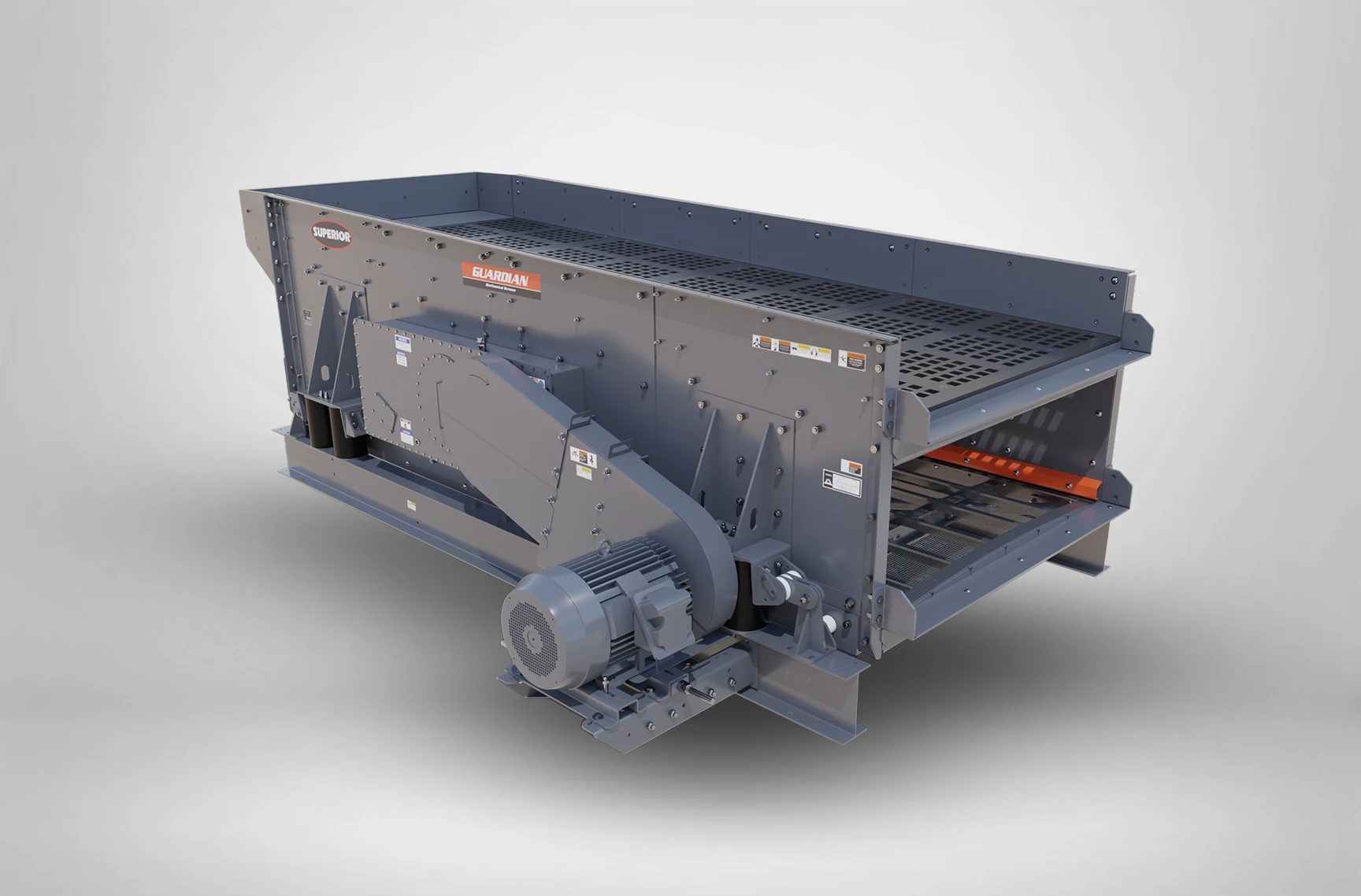

Guardian Horizontal Screen

The Guardian Horizontal Screen brings precision, efficiency, and dependable performance to aggregate and mining operations that need consistent screening results.

With a triple-shaft design, elliptical stroke, and maintenance-friendly access points, the Guardian Horizontal Screen is made to handle both dry and wet screening applications. Its smooth operation and precise screening action help improve material separation, support consistent output, and keep production moving in demanding environments.

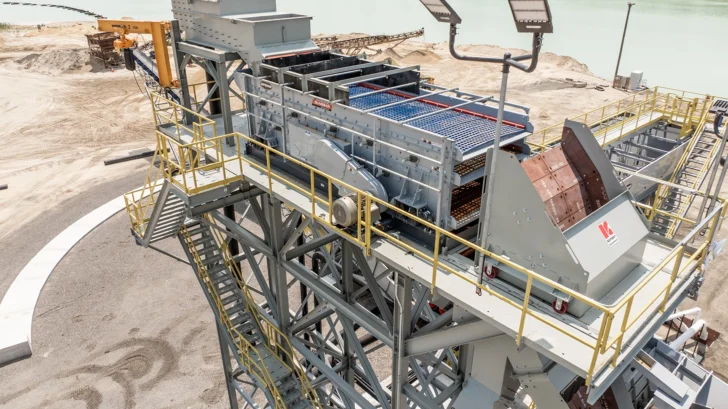

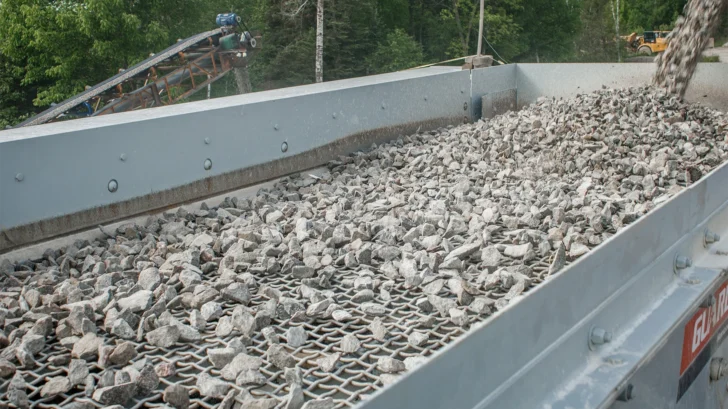

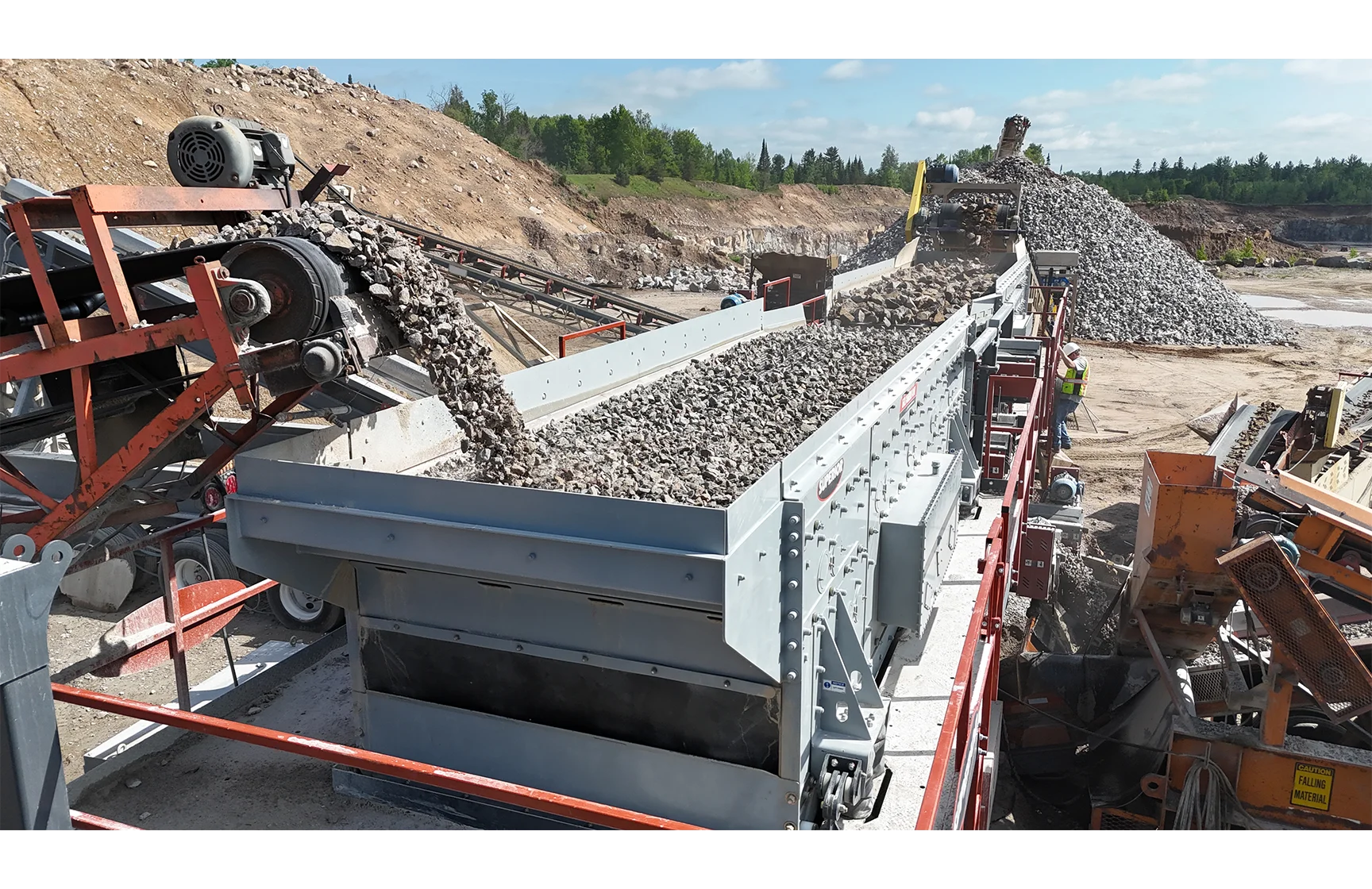

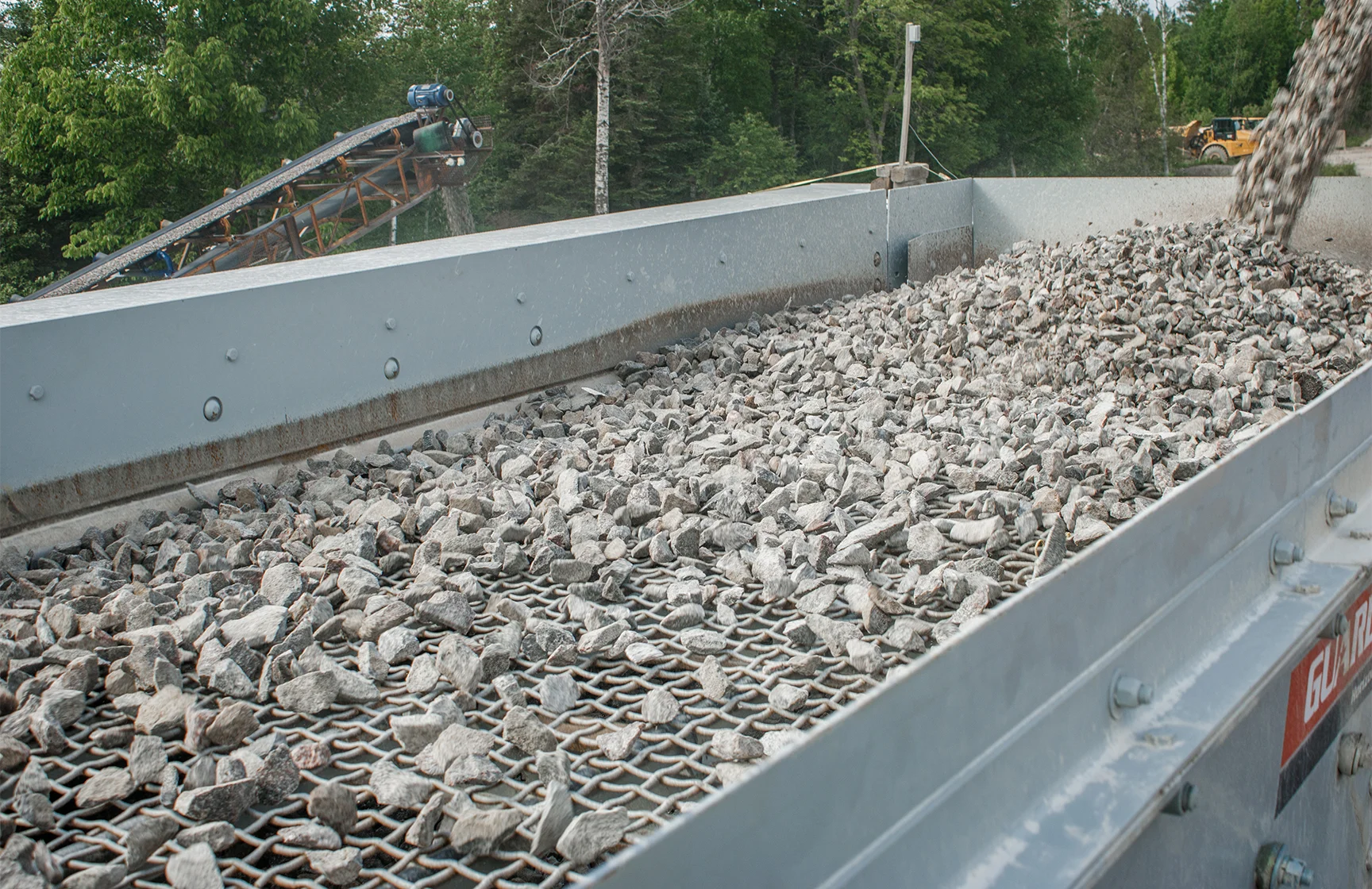

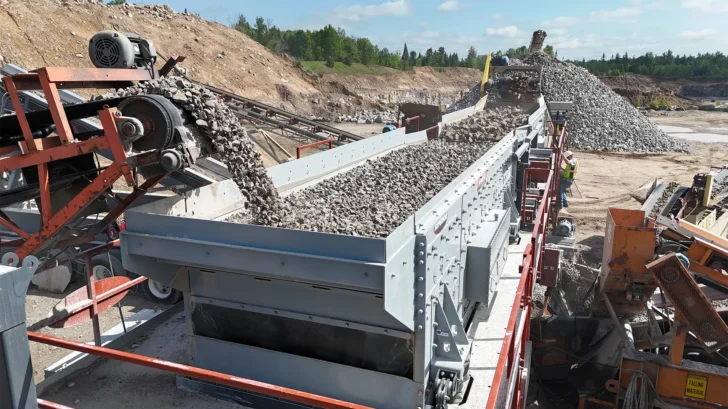

Superior Guardian Horizontal Screen in aggregate screening application

Key features

  • Triple-shaft oval stroke design improves stratification and increases screening efficiency
  • Huck-bolted construction strengthens the sidewalls and reduces maintenance from cracked welds
  • Variable deck angle adapts quickly to different feed conditions and specs

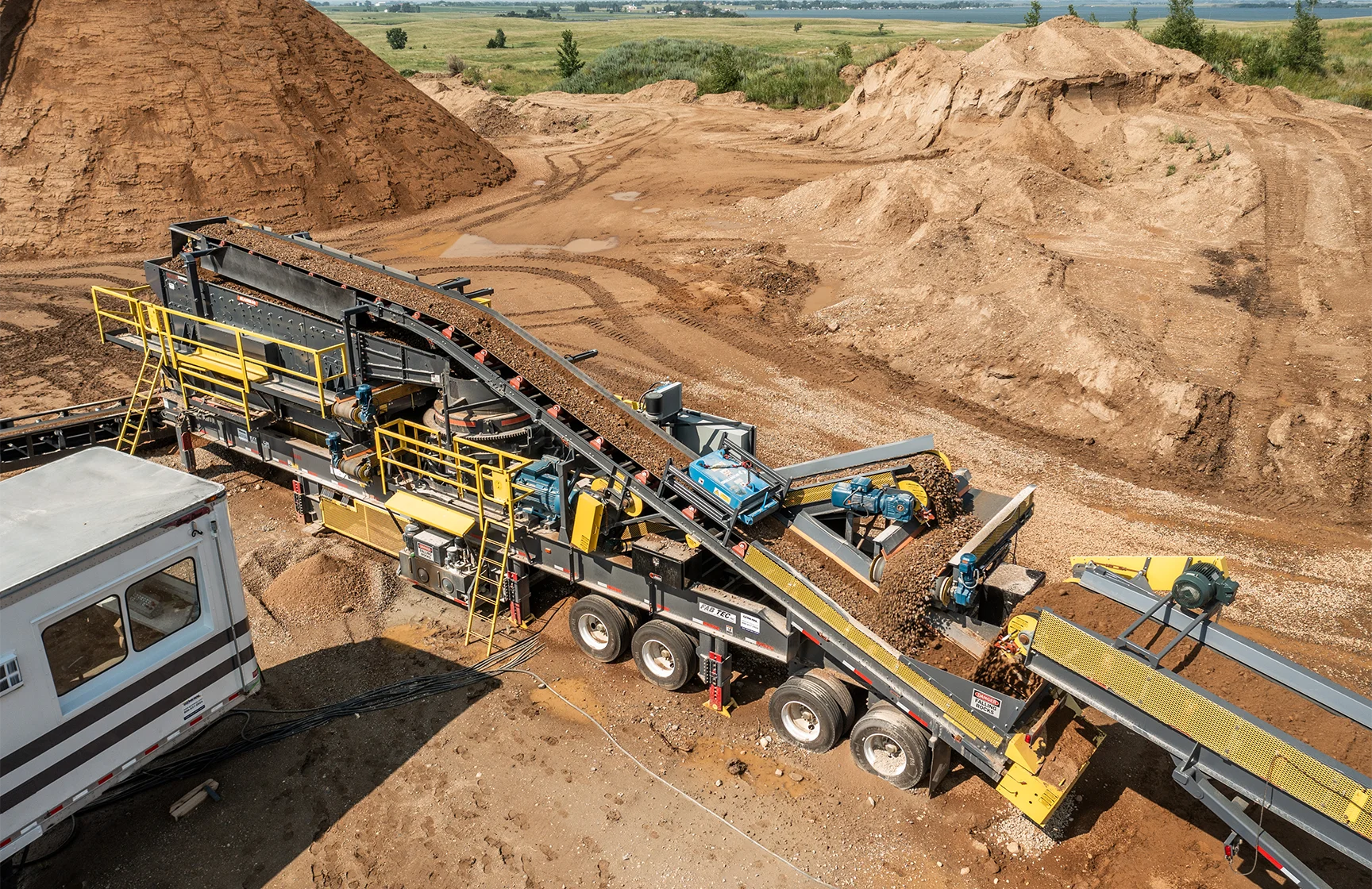

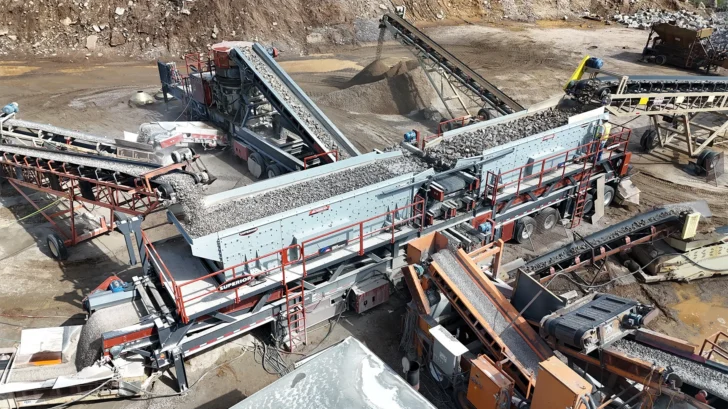

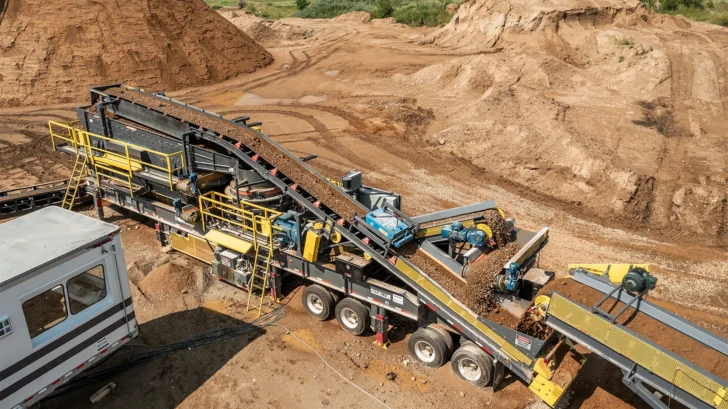

  • Pre-engineered for portable or stationary plants across aggregate and mining applications
  • AR-lined feed box and discharge lips extend wear life in abrasive conditions
  • Triple-shaft mechanism handles larger loads with reduced vibration and smoother operation

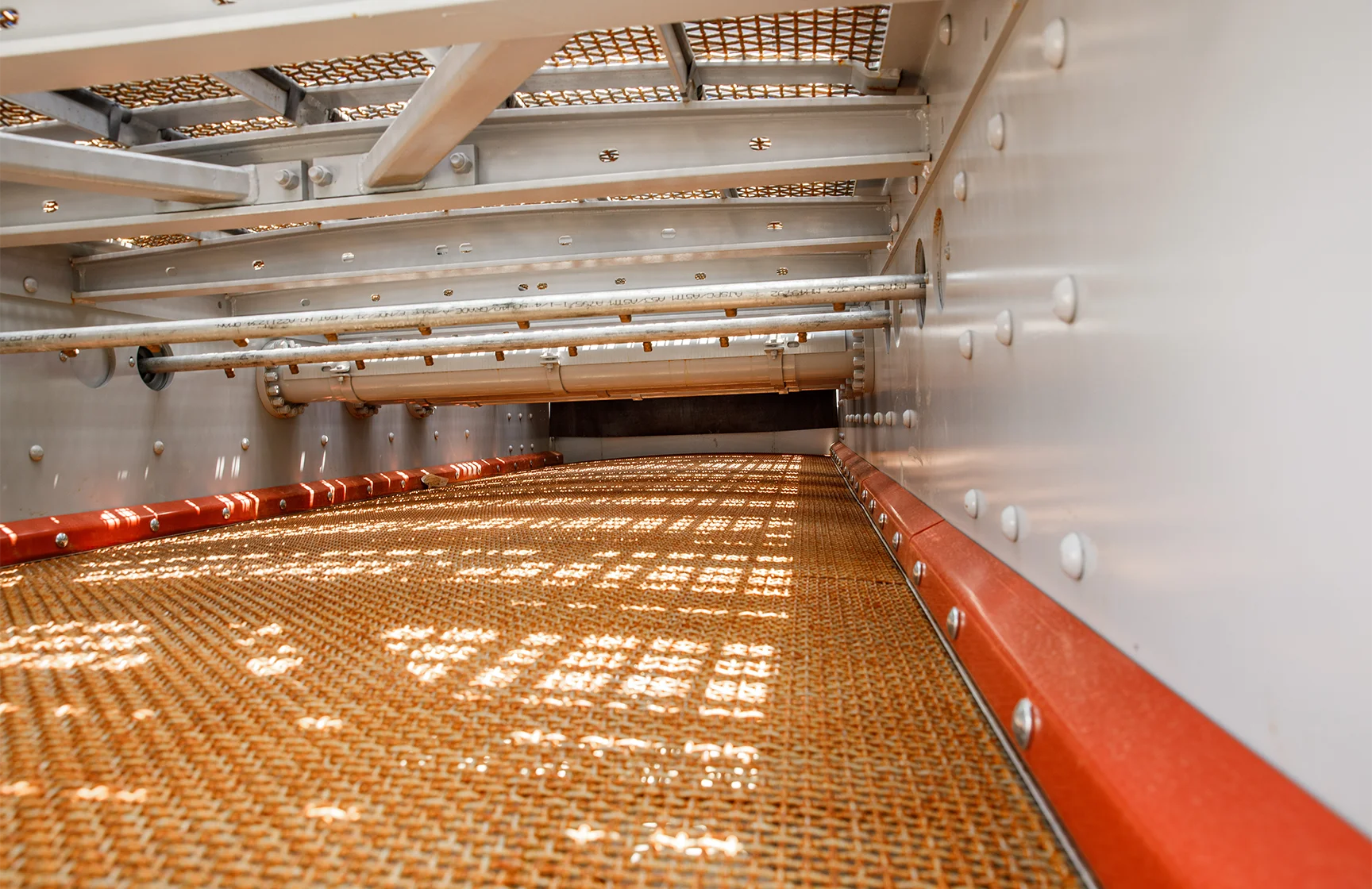

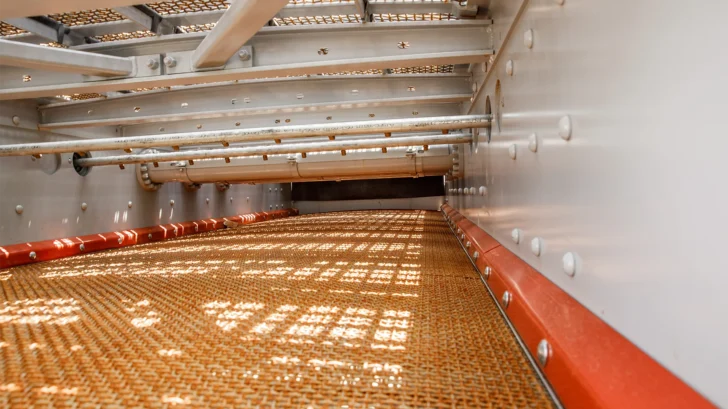

  • Extra clearance between decks minimizes plugging and improves screening performance

Technical specifications

Models

13 models available

Power

25 to 60 hp (20 to 45 kW)

Screen size

5′ × 16′ to 8′ × 20′

Decks

2, 3 and 4

Weight

16,750 to 39,750 lb
