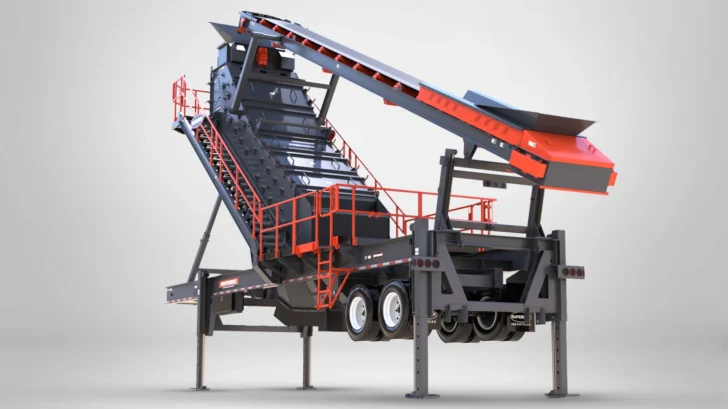

Independence High Frequency Screen

The Independence High Frequency Screen helps operations produce accurate, spec-grade material with efficient fine material separation for manufactured sand and aggregate applications.

Featuring a high-frequency vibrating design, variable slope operation, and urethane screen media compatibility, the Independence HFS gives operations the control needed to improve sizing accuracy and screening efficiency. Its precise separation helps maintain consistent output when fine material quality matters.

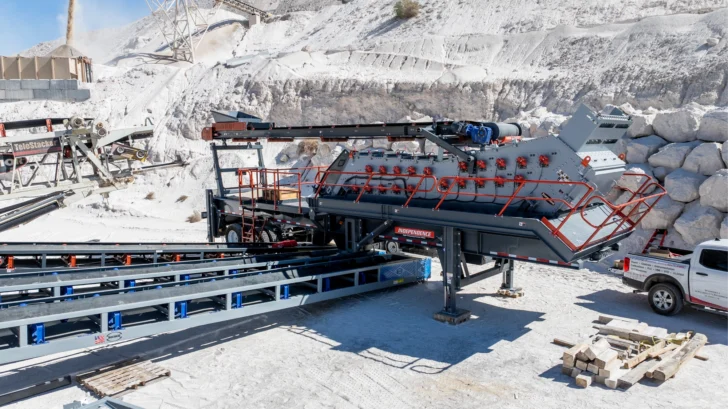

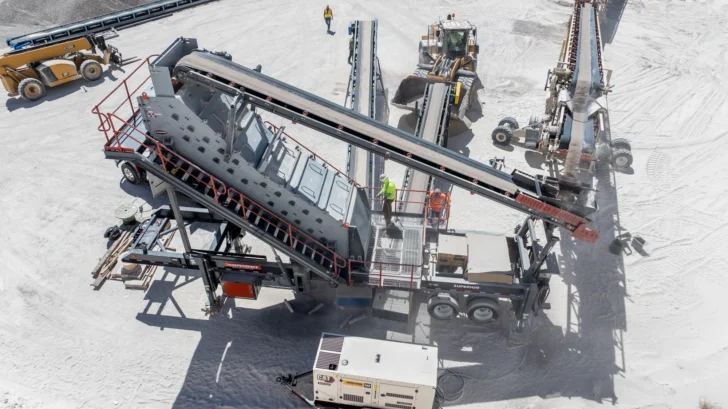

Superior Independence High Frequency Screen in aggregate screening application

Key features

  • Independently adjustable motors run from 3,000–6,000 RPM for precise spec control
  • Multi-slope screen design increases open area and boosts throughput by up to 20%

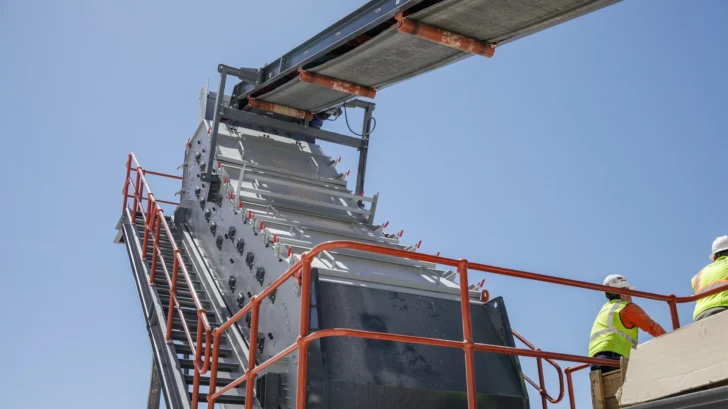

  • Vibrating feed box spreads material evenly to improve stratification and reduce buildup
  • Automated clean-out cycle clears media blinding without stopping production
  • Uniform media tensioning reduces uneven wear and extends screen media life

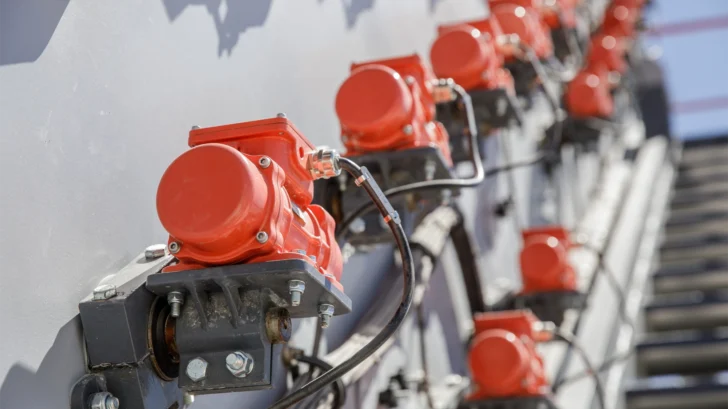

  • Outboard-mounted motors simplify inspections and improve maintenance safety
  • Designed for manufactured sand, chip sizing, fines recovery, and other precision screening applications

Technical specifications

Screen size

6’ x 20’

Decks

2

Belt width

36″


Transport

Length

51′ 9″

Height

13′ 6″

Width

11′ 11″

Weight at kingpin

24,000 lb

Total plant weight

54,500 lb

Axle weight

30,500 lb
