Jump Conveyor

The Superior Jump Conveyor gives crews a practical way to bridge transfer points and keep material moving between crushers, screens, stockpiles, and loadout equipment.

Built for aggregate, quarrying, and mining applications, the Jump Conveyor can be repositioned as site layouts or transfer distances change. Its portable frame, radial receiving hopper, and service-friendly components help reduce loader handling, simplify material flow, and support steady production across the operation.

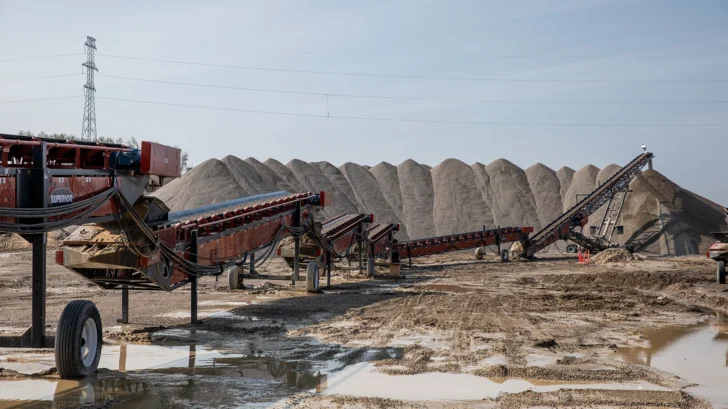

Jump conveyor transfer conveyors moving aggregate across a quarry site

Key features

  • Portable transfer conveyor design
  • Helps bridge gaps between processing and stockpiling equipment
  • Conveyor lengths from 40′ to 100′
  • 36″ belt width transport data available
  • Radial receiving hopper
  • 6′ discharge support
  • Belt scale available
  • Exterra® primary belt cleaner available
  • Moxie® Rolls, Urathon® return rolls, impact rolls, and auto greaser options

Technical specifications

Jump Conveyor lengths

40′, 50′, 60′, 80′, 100′

Raised height to center of pulley

11′ 7″ to 13′ 7″

Lowered height to center of pulley

6′ 10″ to 7′ 10″


Transport

Length

44′ 8″ to 84′ 9″

Height

8′ 10″ to 14′ 1″

Width

8′ 0″ to 11′ 11″

Weight at axle

4,553 to 8,700 lb

Weight at kingpin

1,463 to 3,000 lb
