Stackable Conveyors

The Superior Stackable Conveyors gives operations a portable and efficient transfer solution designed to simplify transport, setup, and material handling on temporary or mobile job sites.

Designed to stack multiple conveyors together for transport, Stackable Conveyors help reduce freight costs and improve job site logistics. They are well suited for aggregate, mining, and portable processing applications where crews need flexible conveyor placement, efficient material movement, and quick site-to-site relocation.

Superior Slide-Pac Conveyor system in transport configuration

Key features

  • Portable transfer conveyor design
  • Designed to ship up to 8 conveyors per load
  • Helps reduce freight costs and simplify transport logistics
  • Stackable design supports efficient site-to-site relocation

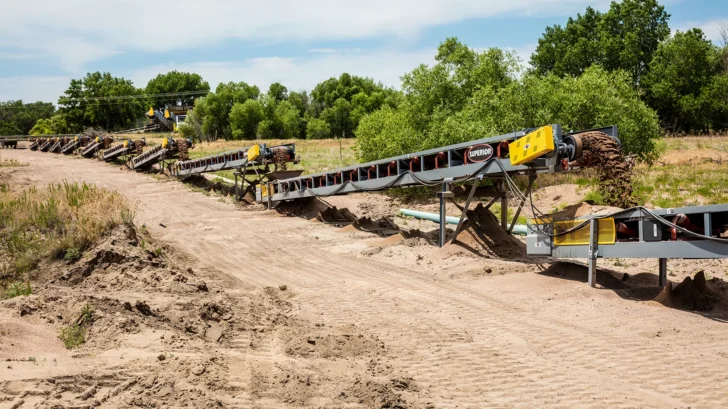

  • Helps bridge transfer points between processing and stockpiling equipment
  • Reduces loader movement and material rehandling
  • Flexible placement for portable processing spreads
  • Suitable for aggregate, mining, and temporary material handling applications

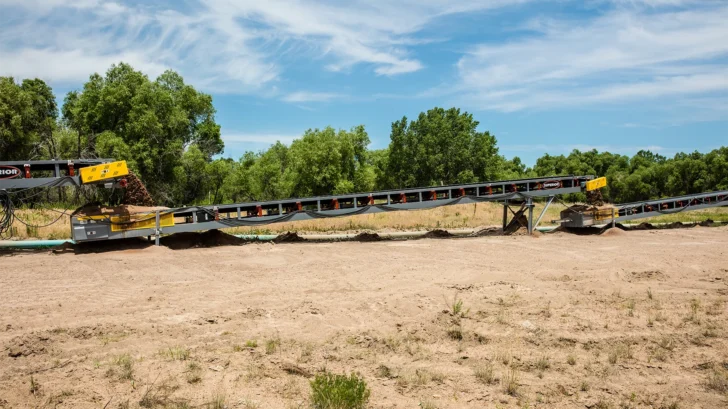

  • Supports efficient material flow across job sites

Technical specifications 50′

Conveyor length

50′

Available configurations

Stackable with Support, Stackable Plus with Undercarriage, Stackable Plus Bend

Conveyor ground length

47′ 5″ to 50′

Raised height to center of pulley

Up to 17′ 8″

Lowered height to center of pulley

7′ 5″ to 8′ 8″

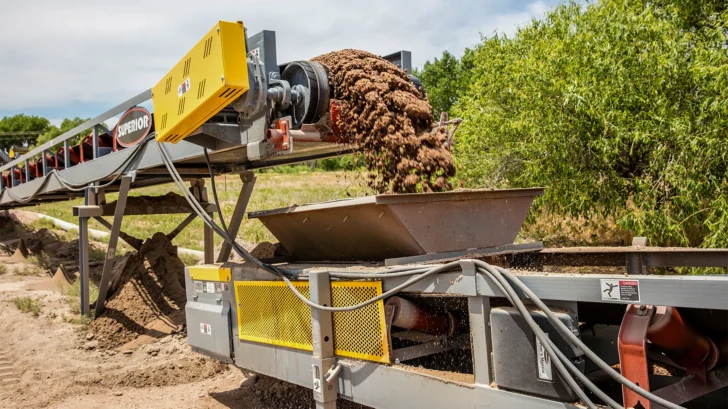

Maximum stockpile height

Up to 16′ 5″

Maximum stockpile capacity

Up to 370 yd³


Technical specifications 60′

Conveyor length

60′ 0″

Available configurations

Stackable with Support, Stackable Plus with Undercarriage, Stackable Plus Bend

Conveyor ground length

57′ 1″ to 60′

Raised height to center of pulley

Up to 20′ 8″

Lowered height to center of pulley

7′ 2″ to 8′ 2″

Maximum stockpile height

Up to 19′ 2″

Maximum stockpile capacity

Up to 590 yd³
