Zipline Conveyor

The Superior Zipline Conveyor makes overland conveying more accessible with a modular, pre-engineered design that helps move material efficiently across long distances.

Instead of starting every conveyor project from scratch, the Zipline uses standard sections and common components to simplify installation, expansion, and maintenance. It helps operations connect key processing areas, reduce mobile equipment use, and create a more efficient material handling layout.

Make
Product Brochure CEC Brochure
Modular overland conveyor moving aggregate across a quarry site

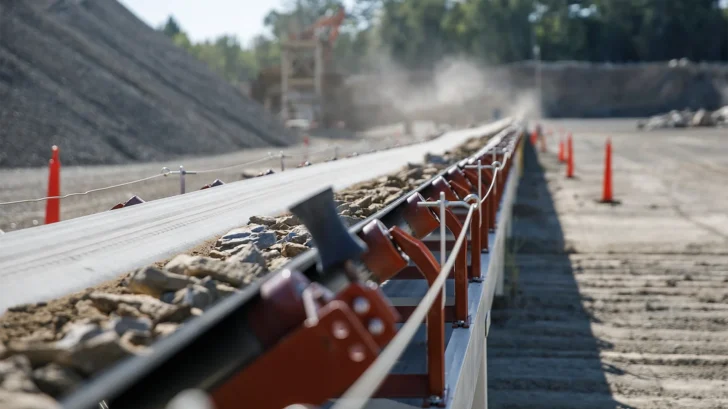

Aggregate material traveling on a long-distance conveyor belt

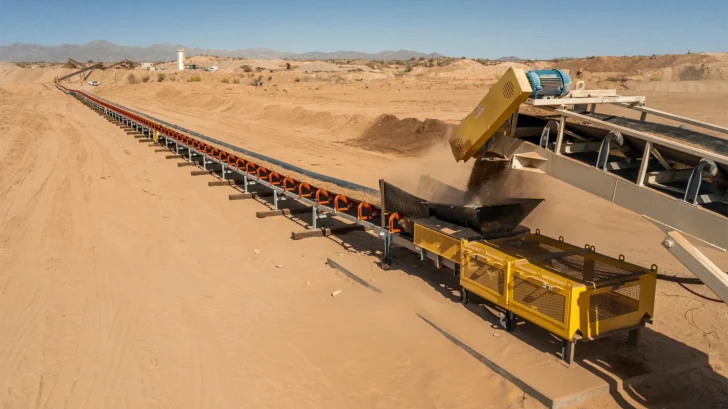

Conveyor transfer point feeding material onto an overland system

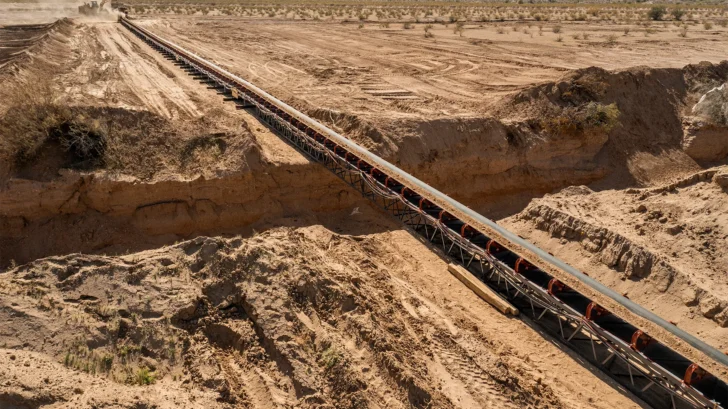

Groundline conveyor carrying material across excavated terrain
Aggregate material traveling on a long-distance conveyor belt
Conveyor transfer point feeding material onto an overland system
Groundline conveyor carrying material across excavated terrain

Key features

  • Modular overland conveyor system designed for quick installation
  • 30” to 48” belt widths
  • Customizable lengths up to 2500’
  • 40′ head section designed for fast setup
  • 10′ intermediate sections hook to H-supports without tools
  • 2′ H-supports support intermediate conveyor sections
  • Fully assembled tail section with 5′ gathering trough
  • Off-the-shelf idlers in standard CEMA frames
  • Exterra® Primary Belt Cleaner helps extend blade life
  • Navigator® Return Trainer helps keep the belt centered
  • Chevron® Pulley helps eject fugitive material and extend belt life
  • Modular design supports future conveyor additions or layout changes
  • Helps reduce truck and loader movement on long transfer runs

Technical specifications

Zipline Conveyor

Belt widths

30” to 48”

Conveyor length

Less than 1000′

Intermediate sections

Linking 10’sections with H-supports

Installation

Two-day installation time for 1000’

System design

Pre-engineered sections

Technical specifications

Zipline EXT Conveyor

Belt widths

30″ to 48″

Conveyor length

1,000′ to 2,500′

Intermediate sections

40′ table top stand-alone sections

Installation

More setup than standard Zipline, but faster than engineered overland.

System design

Pre-engineered sections with foundation engineering and belt analysis for head take-up accuracy.
