Modular Feed Hopper

The Superior Modular Feed Hopper helps operations create a controlled and consistent material feed at the start of the processing circuit.

Built as a three-bin system on steel skids, the Modular Feed Hopper allows multiple materials to be blended independently while simplifying site setup. Its skid-mounted design helps reduce installation complexity, avoid permanent concrete foundations, and support efficient material flow into conveyors, crushers, screens, or washing systems.

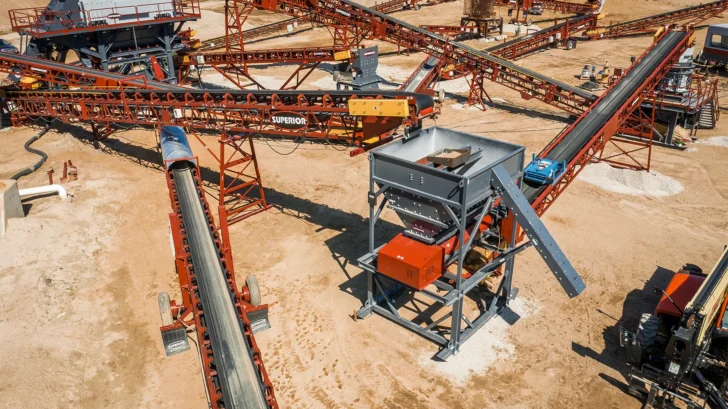

Superior Modular Feed Hopper feeding aggregate into a conveyor system

Key features

  • Three 9′ × 14′ hoppers for controlled material feeding
  • Quick-transfer stackable conveyors transport on top of the hoppers
  • Hoppers pin together for road transport and unpin quickly for use
  • Removable axle assembly and fifth wheel hitch are interchangeable
  • Complete air, brake, and directional light package for transport
  • Heavy-duty construction with 1/4″ plate
  • Superior idlers, pulleys, and vulcanized belt splice
  • Allows independent material blending from multiple hoppers
  • Helps deliver a steady, controlled feed to downstream equipment
  • Skid-mounted design helps simplify setup and relocation
  • Supports efficient feed into conveyors, crushers, screens, or washing systems

Technical specifications

Hopper height

12′

Bin width

9′

Bin height

7′ 6″

Feed height

4′ 6″

Head pulley height at 18°

23′ 6-11/16″


Transport

Full length

86′ 1-13/16″

Section width

15′ 6″

Axle to pin

57′ 1-9/16″

Axle to axle

4′ 6-1/2″

Load width

9′

Chassis axle width

7′ 11-7/16″

Travel height

13′ 4-1/4″
