Portable Feed Hopper

The Superior Portable Feed Hopper gives operations a reliable way to receive, regulate, and transfer large quantities of bulk material into crushing, screening, washing, or conveying circuits.

Built for portable and high-production applications, the Portable Feed Hopper helps keep downstream equipment consistently fed while reducing loader movement and improving material flow. With adjustable grizzly bars, controlled discharge, proven Superior components, and multiple hopper configurations, it gives aggregate and bulk material operations a flexible feeding solution that can be moved, set up, and put to work quickly.

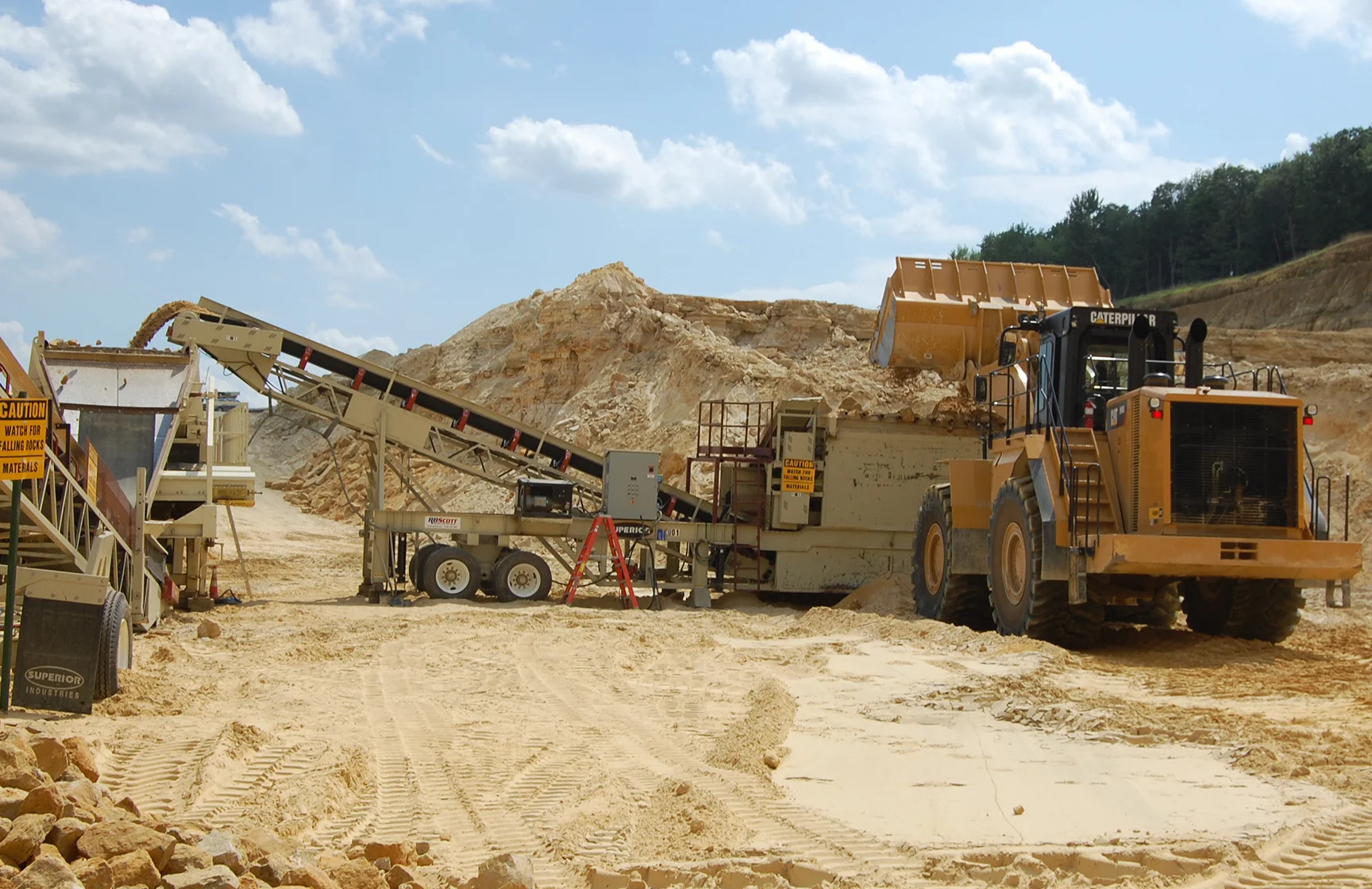

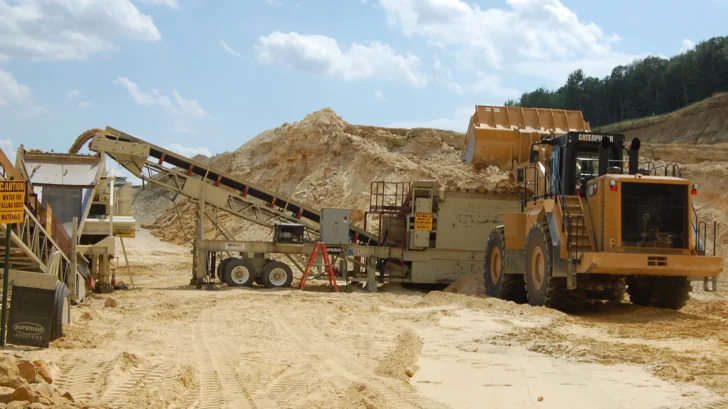

Superior Portable Feed Hopper loading material in a quarry operation

Key features

  • Reliable feed for crushing, screening, washing, and conveying plants
  • Adjustable grizzly bars help remove oversized material
  • Multiple grizzly bar styles available for different applications
  • Adjustable flow gate controls material discharge from the hopper
  • 3-ply conveyor belt protects the internal fabric layer
  • Superior idlers available in CEMA C or D ratings
  • Chevron® Pulley helps eject fugitive material and extend belt life
  • Vulcanized belt splice helps reduce snagging, tearing, and belt wear
  • Frame skirting protects underside components from fugitive material
  • Crank-down landing legs simplify the switch from operation to travel mode
  • Hydraulic grizzly dump and remote control options available
  • Available in wheel-mounted, skid-mounted, and tracked configurations
  • Capacity up to 1,320 TPH with upgrade, depending on model and configuration

Technical specifications

PBF10

Hopper capacity

10 yd³

Hopper size

8′ × 16′

Feeder belt width

36″

Discharge height

6′ 6″

Discharge rate

250 to 850 TPH

Overall length

33′ 6″

Technical specifications

PBF15

Hopper capacity

15 yd³

Hopper size

9′ × 18′

Feeder belt width

36″

Discharge height

6′ 6″

Discharge rate

250 to 850 TPH

Overall length

36′

Hopper capacity

15 yd³

PFH10

Hopper capacity

10 yd³

Hopper size

8′ × 16′

Feeder belt width

36″

Discharge belt width

36″

Discharge conveyor length

40′

Discharge height

17′ 10″

Discharge rate

250 to 850 TPH

Overall length

60′

PFH15

Hopper capacity

15 yd³

Hopper size

9′ × 18′

Feeder belt width

36″

Discharge belt width

36″

Discharge conveyor length

40′

Discharge height

17′ 10″

Discharge rate

250 to 850 TPH

Overall length

62′

PFH15HD

Hopper capacity

15 yd³

Hopper size

8′ × 16′

Feeder belt width

42″

Discharge belt width

42″

Discharge conveyor length

50′

Discharge height

17′ 10″

Discharge rate

1,000 TPH

Overall length

67′

PFH15HD

Hopper capacity

5.4 yd³

Hopper size

16′ × 7′

Feeder belt width

42″

Discharge belt width

36″

Discharge conveyor length

47′ 6″

Discharge height

20′ 11″

Discharge rate

800 TPH

Overall length

58′ 7″
