Classifying Tank

The Superior Classifying Tank gives operations precise control over sand gradation, helping produce consistent, in-spec material for demanding washing applications.

Designed to separate material by settling rate, the Classifying Tank helps operations manage changing deposits, customer requirements, and production targets with greater accuracy. Adjustable valves, automated controls, rising current cells, and customizable configurations help improve classification efficiency, reduce manual blending, and keep sand production consistent shift after shift. Superior describes the system as a way to control gradation and produce in-spec product, with automated separation and adjustable configurations for changing demands.

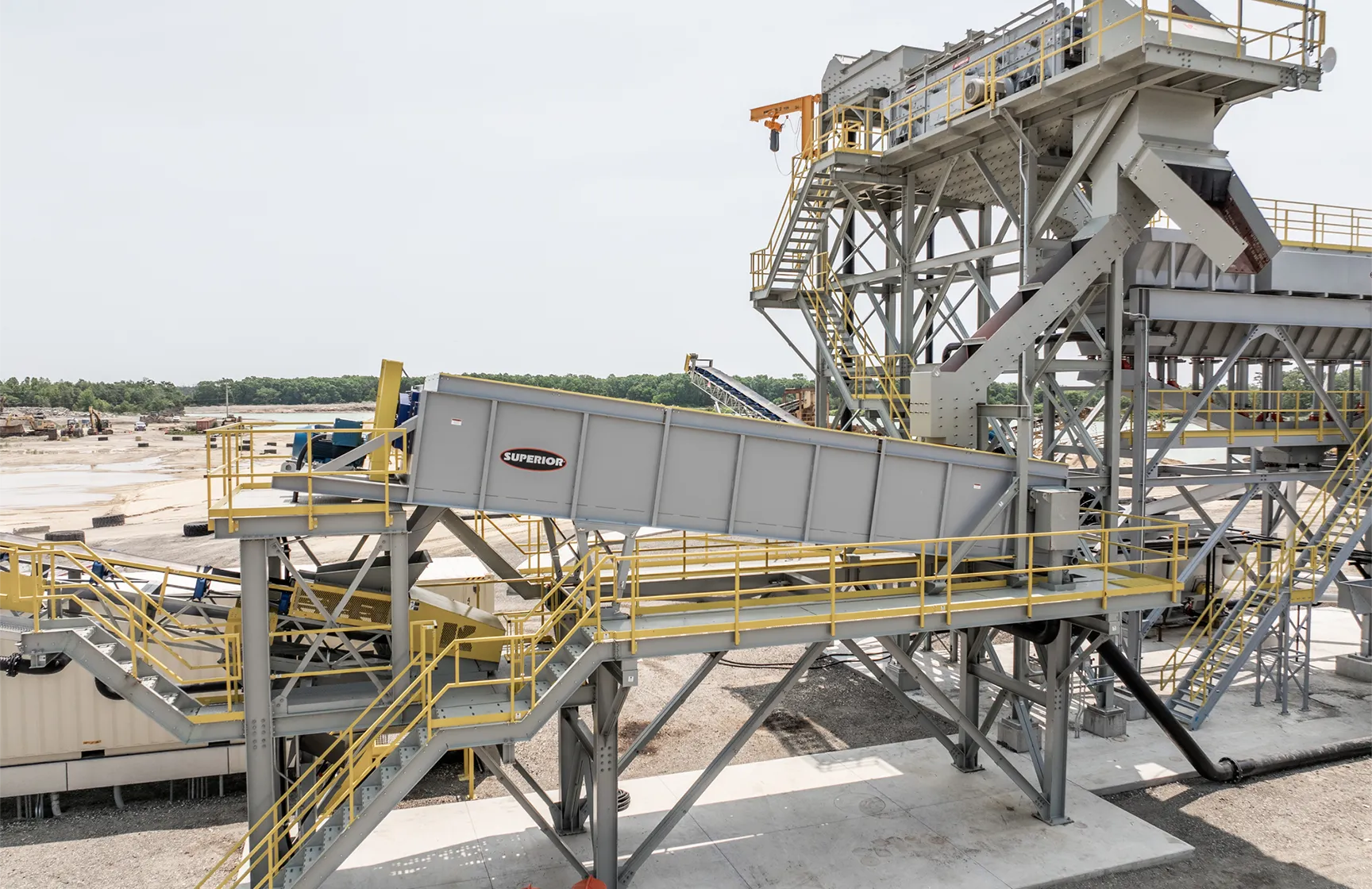

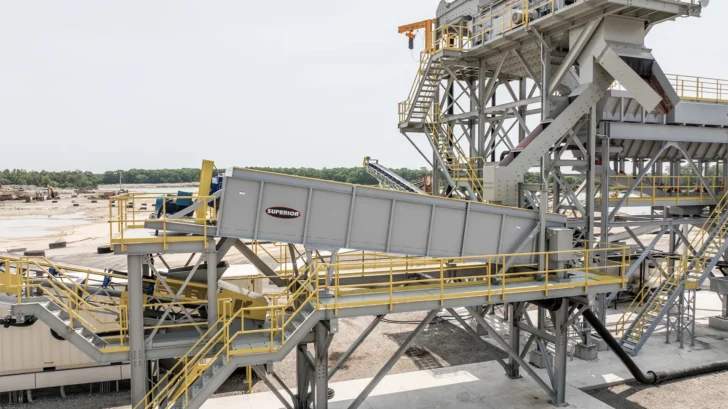

Superior Classifying Tank processing sand in an aggregate washing operation

Key features

  • Helps produce consistent, in-spec sand gradations
  • Separates material based on settling rate for precise classification

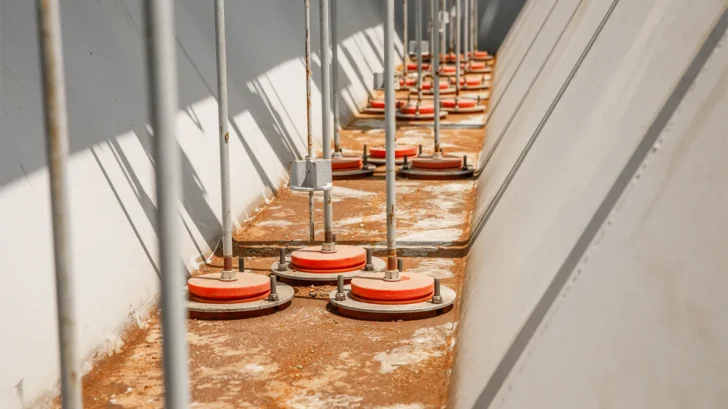

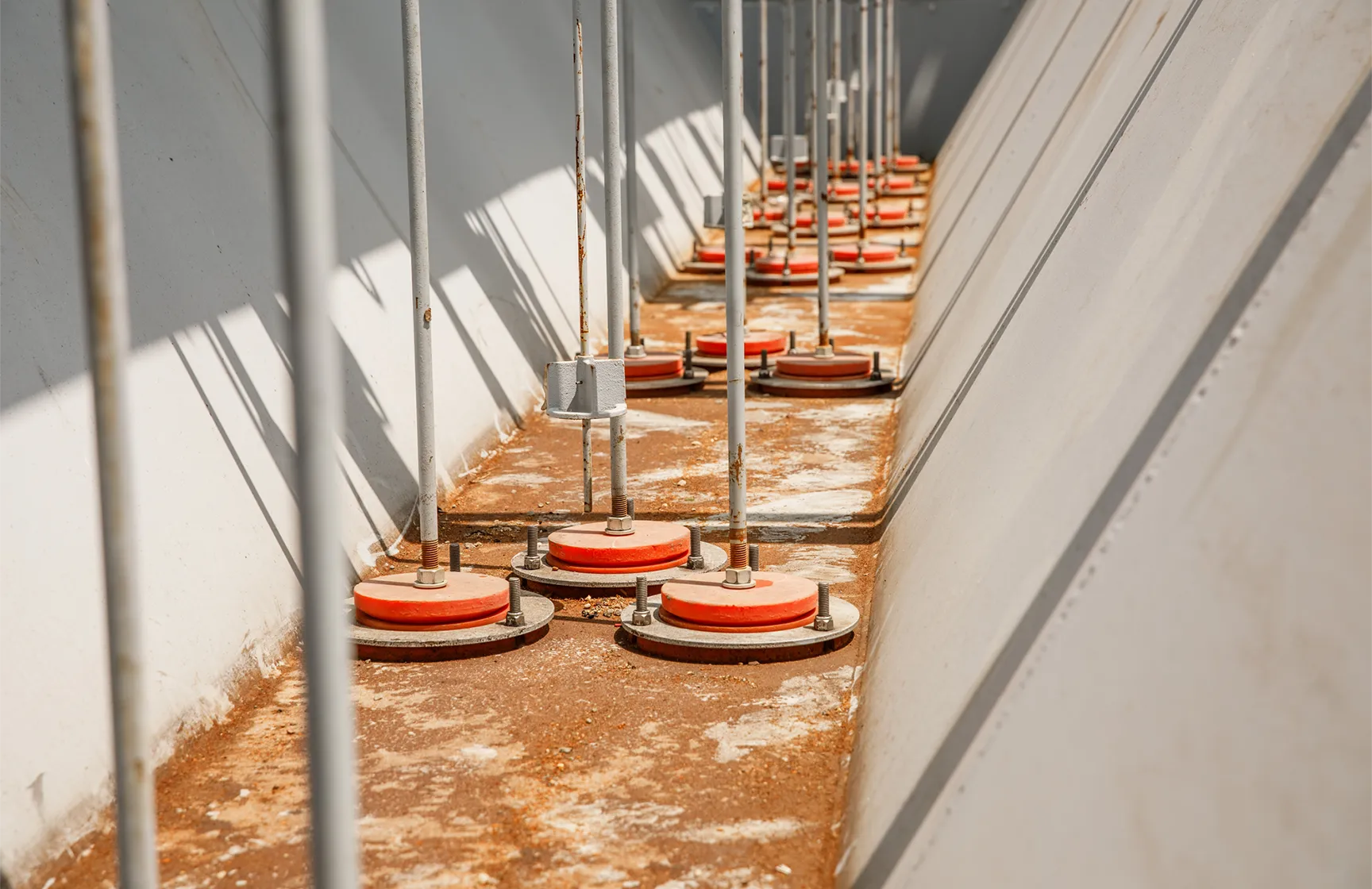

  • Adjustable valves help fine-tune material blending
  • Automated controls reduce manual adjustment and operator oversight
  • Rising current cells improve separation efficiency
  • Recirculating pump system reuses overflow water for better control

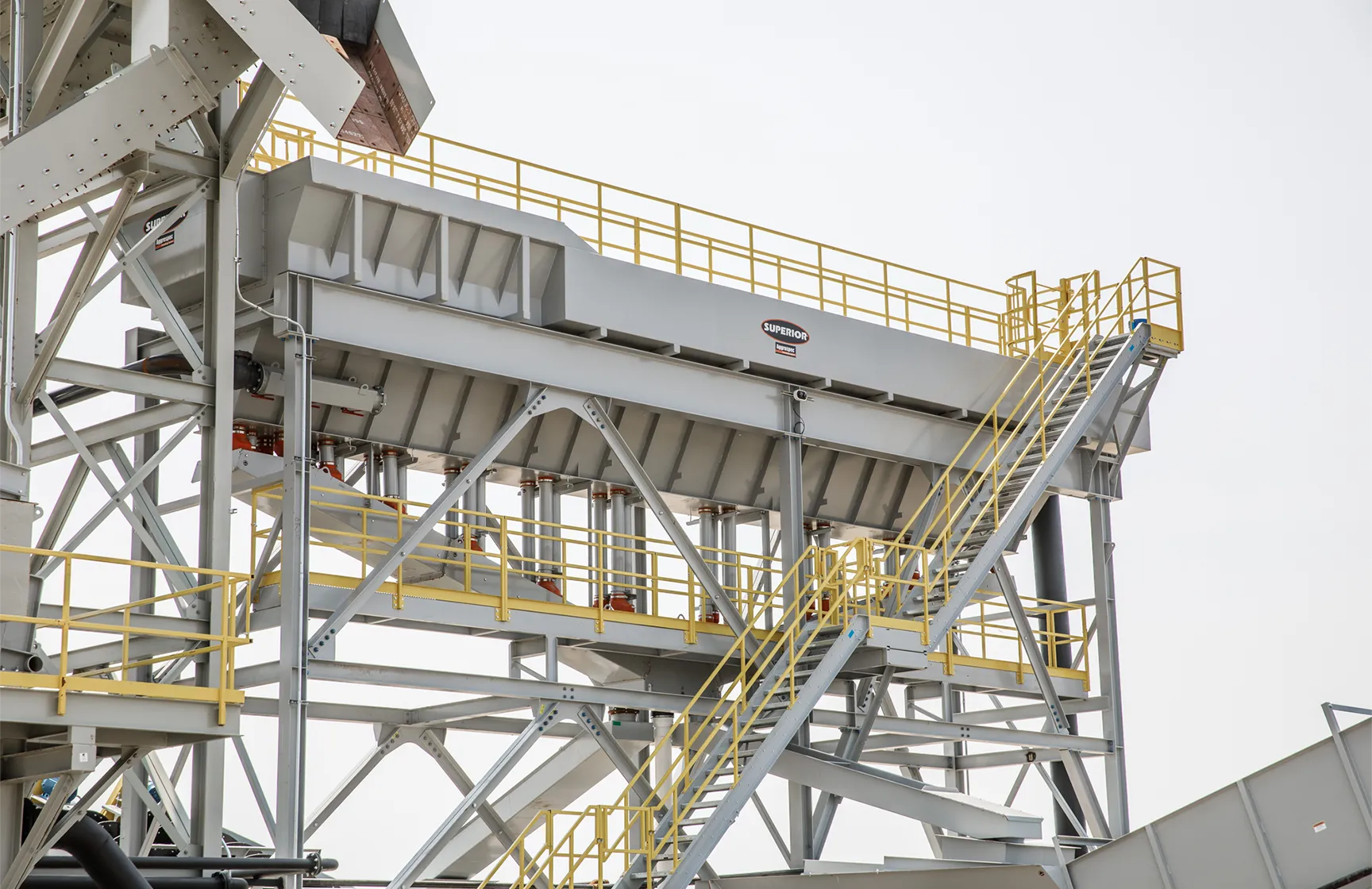

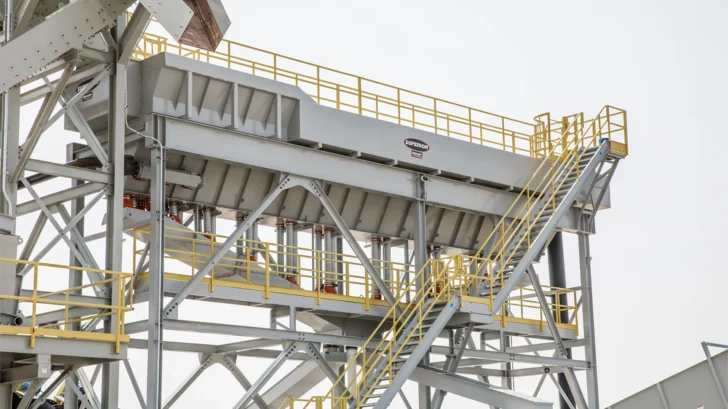

  • Elevated valve bridge keeps mechanical components above the water line
  • Hinged walkway plates allow quick access to valve stations
  • Customizable configurations support different production requirements
  • Designed for aggregate, sand, and wet processing applications

Technical specifications

Stationary Classifying Tank

Tank size

8′ × 20′ to 12′ × 48′

Tank configuration

Single or double tanks

Stations

6 to 22 stations

Access

Valve bridge walkway with railings

Wear protection

AR-lined blending flumes and feedboxes

Valves

Urethane valves, seats, and discharge elbows

Valve alignment

Self-aligning valves and seats

Support

Onsite spec testing and control system training

Technical specifications

Semi-Portable Classifying Tank

Tank size

8′ × 24′ to 12′ × 48′

Mounting

Skid-mounted modular design

Stations

7 to 11 stations

Washer options

Aggredry® Washer or Fines Material Washer

Product output

Produces 2 individual products

Primary product

Produces maximum primary product

Electrical

Prewired plant

Portable Classifying Tank

Tank size

8′ × 24′ to 10′ × 40′

Transport connection

Fifth wheel hitch

Stations

7 to 11 stations

Washer options

Aggredry® Washer or Fines Material Washer

Brakes

Air brakes

Lighting

Lights

Leveling

Hydraulic leveling jacks

Electrical

Prewired plant

Which classifying tank do you need?

That depends on how often you move it. The stationary tank runs from 8 by 20 feet up to 12 by 48 feet with 6 to 22 stations, single or double. The semi-portable version is skid mounted and prewired. The portable tank sits on a fifth wheel hitch with air brakes and leveling jacks.

All of them sort sand by settling rate through adjustable valves and rising current cells, and pair with a fine material washer or Aggredry washer. See all our washing systems. We sell Superior from Ashley, PA and support it up and down the East Coast.

Tell us your feed gradation and the spec you have to hit, and we will size the tank: Get a quote.
